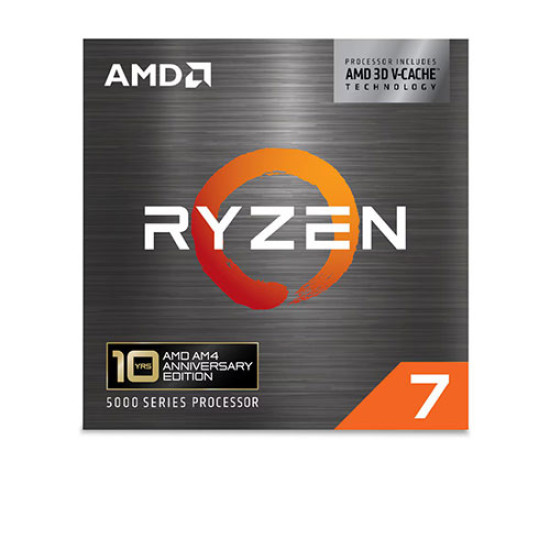

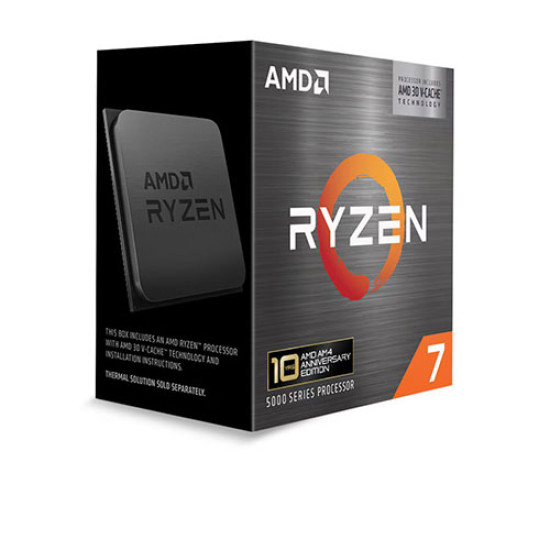

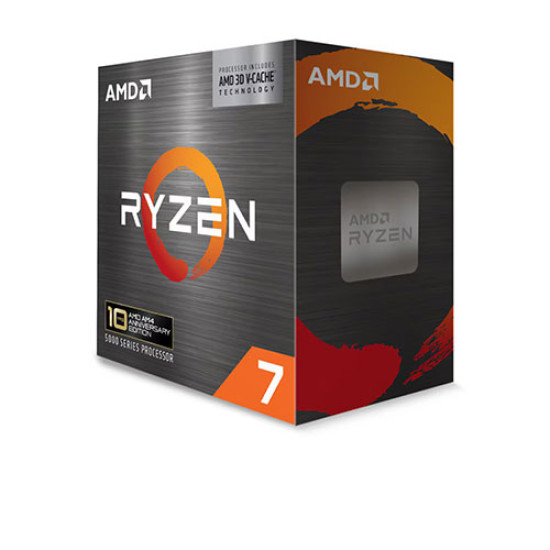

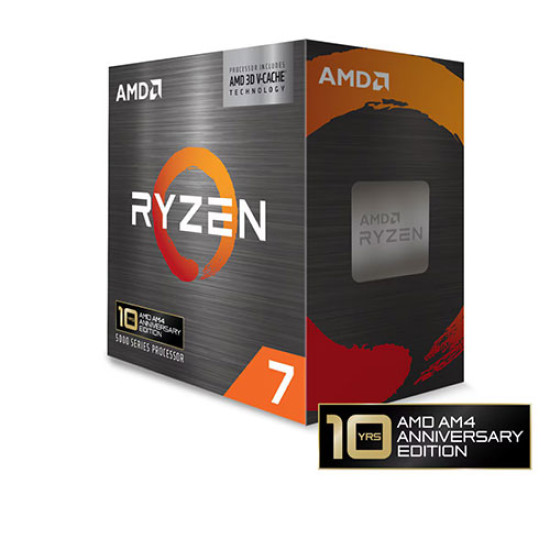

AMD Ryzen 7 5800X3D 3.4 GHz Processor

AMD Ryzen™ 7 5800X3D Gaming Processor

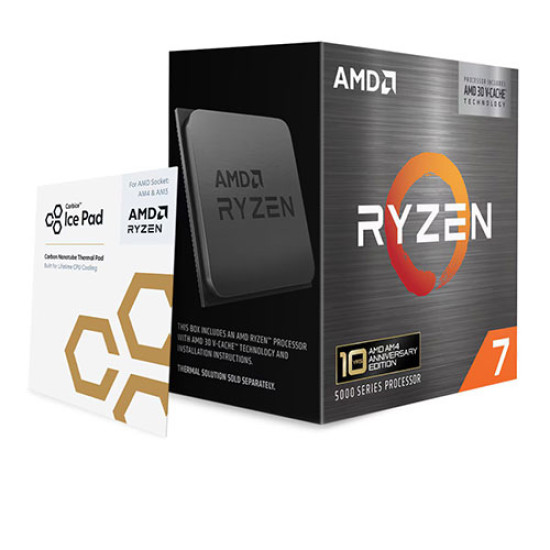

The AMD Ryzen™ 7 5800X3D is the ultimate gaming processor on any DDR4 platform.1,2 Every 10th Anniversary Edition AMD Ryzen™ 7 5800X3D Processor includes a Carbice® Ice Pad™.

Specification :

Name  : AMD Ryzen™ 7 5800X3D

Family : Ryzen

Series : Ryzen 5000 Series

Form Factor : Desktops , Boxed Processor

Market Segment : Enthusiast Desktop

Regional Availability : Global , China , NA , EMEA , APJ , LATAM

Former Codename : Vermeer

Processor Architecture : Zen 3

# of CPU Cores : 8

Multithreading (SMT) : Yes

# of Threads : 16

Max. Boost Clock  : Up to 4.5 GHz

Base Clock  : 3.4 GHz

L1 Cache : 512 KB

L2 Cache : 4 MB

L3 Cache : 96 MB

Default TDP : 105W

Processor Technology for CPU Cores : TSMC 7nm FinFET

Processor Technology for I/O Die : 12nm (Globalfoundries)

CPU Compute Die (CCD) Size : 74mm²

I/O Die (IOD) Size : 125mm²

Package Die Count : 2

CPU Socket : AM4

Supporting Chipsets : X570 , X470 , B550 , B450 , A520

CPU Boost Technology : Precision Boost 2

Instruction Set : x86-64

Supported Extensions : AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) : Not Included

Recommended Cooler : Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax) : 90°C

Launch Date : 4/20/2022

*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity :

Native USB 3.2 Gen 2 (10Gbps) : 4

Native USB 3.2 Gen 1 (5Gbps) : 0

Native USB 2.0 (480Mbps) : 0

Native SATA Ports : 2

PCI Express® Version : PCIe® 4.0

Native PCIe® Lanes (Total/Usable) : 24 , 20

Additional Usable PCIe Lanes from Motherboard :

X57016x Gen 4

X4702x Gen 3, 8x Gen 2

NVMe Support : Boot , RAID0 , RAID1 , RAID10

System Memory Type : DDR4

Memory Channels : 2

Max. Memory : 128 GB

System Memory Subtype : UDIMM

Max Memory Speed :

2x1RDDR4-3200

2x2RDDR4-3200

4x1RDDR4-2933

4x2RDDR4-2667

ECC Support : Yes (Requires mobo support)

Graphics Capabilities :

Graphics Model  : Discrete Graphics Card Required
