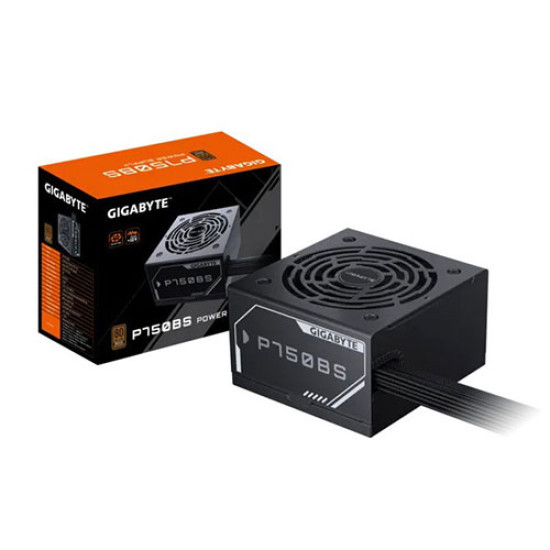

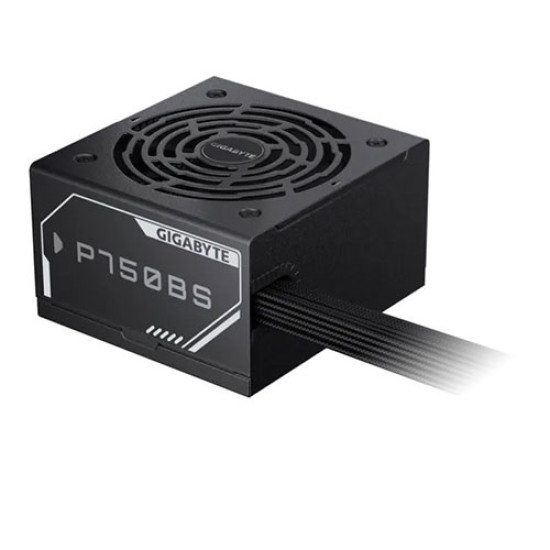

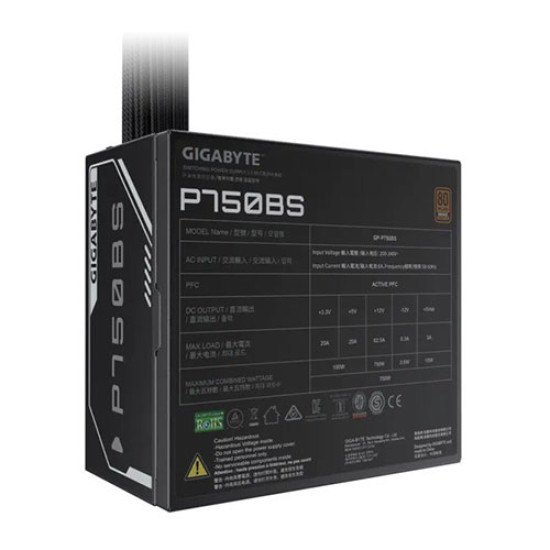

Gigabyte 750W 80 PLUS Bronze PSU (P750BS)

KEY FEATURE

80 PLUS Bronze certified (230V EU)

120mm Silent Fluid Dynamic Bearing (FDB) fan

Soft-textured embossed cables

Single +12V rail

OVP/OPP/SCP/UVP/OCP/OTP protection

3 years warranty (Adjusted according to different regions)

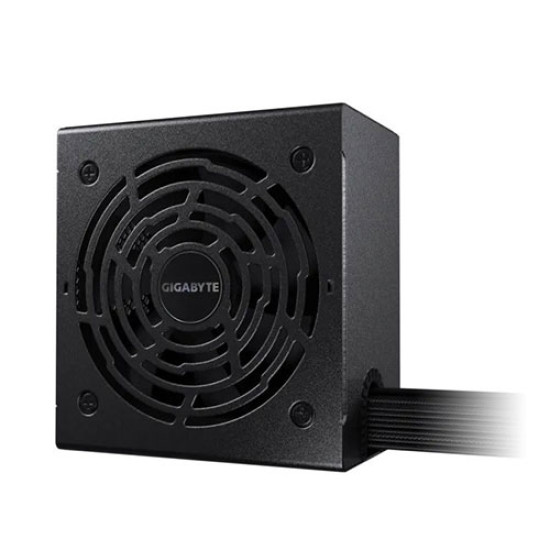

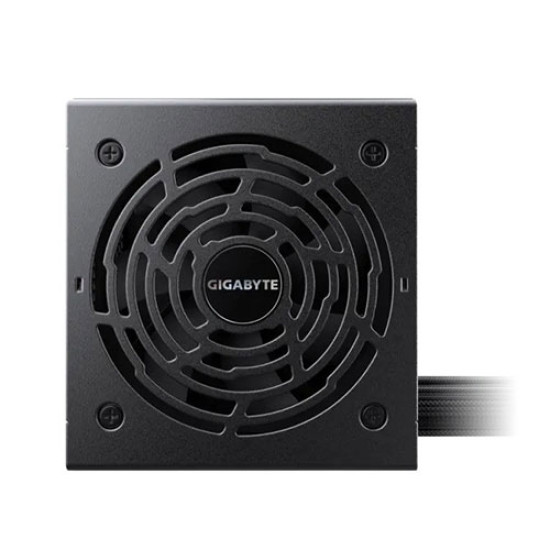

120MM FLUID DYNAMIC

BEARING(FDB) FAN

High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan will detect the current power usage and temperature, automatically adjust the fan speed to minimize the noise.

SOFT-TEXTURED EMBOSSED CABLES

The embossed design of soft-textured cables enhances friction between the cable and surfaces, reducing wear and tear for a longer lifespan. It also effectively prevents tangling and knotting, keeping cables neat and tidy. The soft material provides a comfortable touch, while the variety of embossed patterns adds a touch of aesthetics to the product.

PROTECTION

To guarantee the stable operation of your entire computer system under any circumstances, we have incorporated a range of protective features including OCP, OTP, OVP, OPP, UVP, and SCP. Moreover, we have obtained safety certifications from various countries to ensure the consistent and secure functioning of your system.

Specification :

Model : GP-P750BS

Type : Intel Form Factor ATX 12V

PFC : Active PFC (>0.9 typical)

Input Voltage : 200-240 Vac

Input Current : 6 A

Input Frequency : 60-50 Hz

Output Capacity : 750W

Dimensions : 150 x 140 x 86 mm

Fan Type: 120mm Fluid Dynamic Bearing (FDB) Fan

80 PLUS : Bronze (230V EU)

Efficiency  : 88% at typical load

MTBF : >100,000 hours

Protections : OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal : 100-150ms

Hold Up Time : >16ms

Cable Type : Embossed, All black
