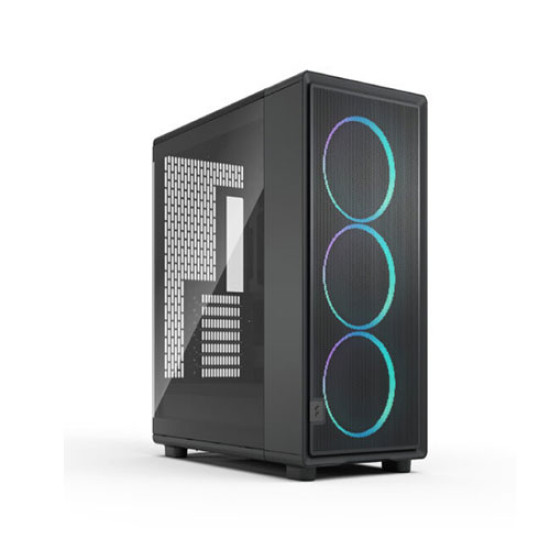

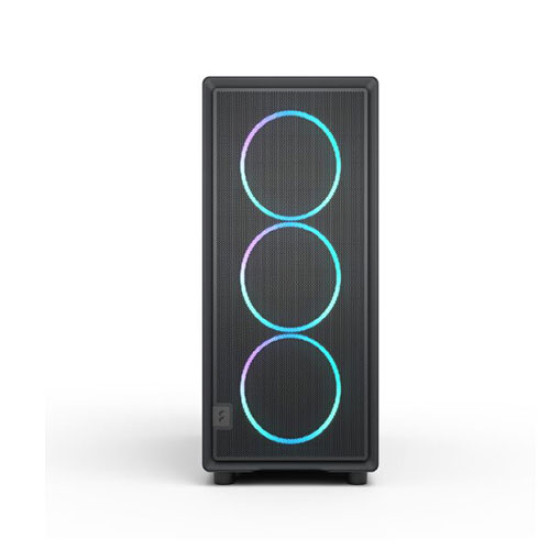

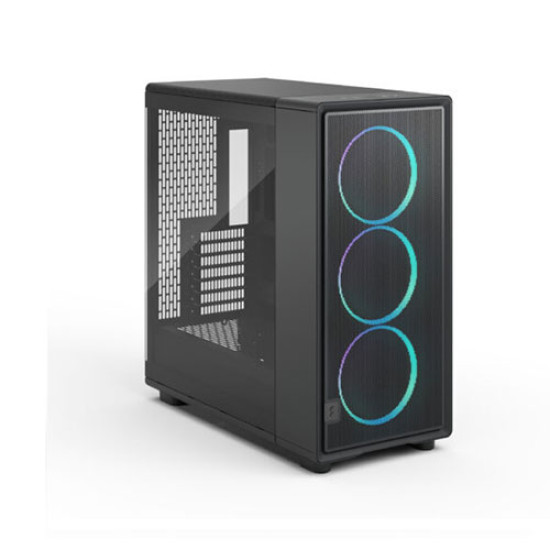

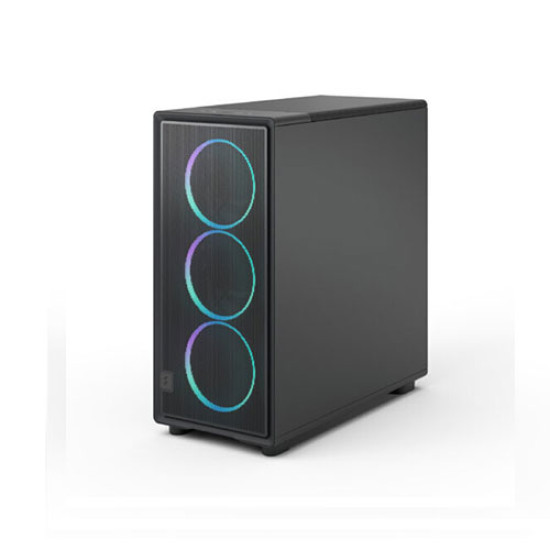

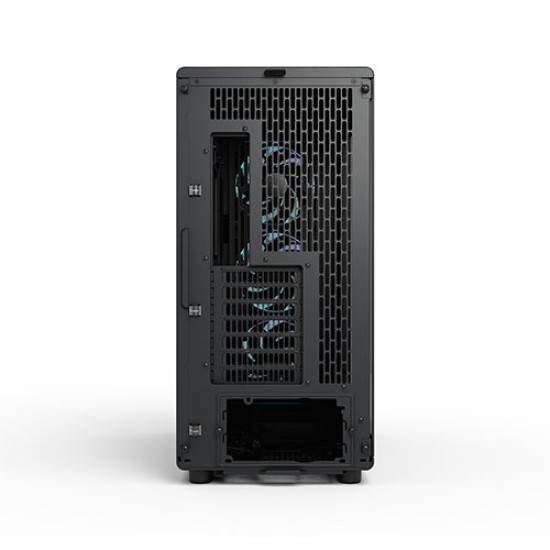

Fractal Design Epoch XL Black RGB Mid-Tower Case (FD-C-EPO1X-04)

Epoch XL

Epoch XL delivers refined design and powerful airflow in a spacious format. With three Momentum 14 fans, mesh ventilation, and support for reverse-connector motherboards, it offers high-end cooling and versatile compatibility.

Contemporary design

Integrate your setup seamlessly into your gaming station with clean lines, a tidy interior, and refined details such as a laser-etched aluminum badge

Generous interior

Create your ideal build with ample space for next-generation components and integrated reverse connector motherboard compatibility.

Powerful fans included

Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation

Ventilated airflow

Keep your high-performance components running cool with a clean interior layout and ventilated top and front panels for strong natural airflow.

Ready for gaming 

Create a powerful gaming system with space for graphics cards up to 425 mm in length with front-mounted fans, or 395 mm with a front radiator.

Easily accessible 

Enjoy a smooth build experience with tool-free access, including a pull-to-remove front panel and a sliding top panel featuring a fabric tab. 

Cooler compatible

Cool your build further with compatibility for up to 360 mm radiators in the front and top, with space for a CPU air cooler up to 176 mm in height.

Organized interior

Achieve a neat and tidy look with a clean interior layout, cable routing grommets, and fixed routing straps to help keep your cables organized. 

Accessible I/O

Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports, and a combined audio and microphone jack.

Specification :

3.5"/2.5" drive mounts : 2 (2 included)

Dedicated 2.5" drive mounts  : 2 (2 included)

5.25” drive mounts :  -

Expansion slots : 7

Front interface : 1x USB Type-C 20 Gbps 2x USB Type-A 5 Gbps   1x Audio/Mic Combo Jack

Total fan mounts  : 7 x 120 mm or 5 x 140 mm

Front fan (Epoch XL RGB) : 3 x 120/140 mm (3 x Momentum 14 RGB included)

Front Fan (Epoch XL) : 3 x 120/140 mm (3 x Momentum 14 included)

Top fan : 3 x 120, 2 x 140 or 2 x 180 mm

Rear fan : 1 x 120 mm

Bottom fan : -

Dust filters : PSU

Cable routing space : 37 mm

Cable routing grommets : Yes

Fixed hook-and-loop straps : Yes

Tool-less push-to-lock  : Top mesh, Front panel, PSU filter

Captive thumbscrews  : HDD brackets, SSD brackets, Side panels, PSU bracket

Left side panel : Steel (Solid version), Tempered Glass (TG & RGB)

Right side panel : Steel

Compatibility :

Power supply type :  ATX

Motherboard compatibility :

Front-facing connectors: E-ATX up to 275 mm/ATX / mATX / ITX Rear-facing connectors: ATX / mATX

PSU max length : 1 HDD Tray: 290 mm max 2 HDD Tray: 175 mm max

GPU max length  :425 mm with front fan mounted / 395 mm with front-mounted radiator

CPU cooler max height : 176 mm

Front radiator  : Up to 280/360 mm

Top radiator  : Up to 280/360 mm

Rear radiator : 1x 120 mm

Bottom radiator : -

Dimensions :

Case dimensions (LxWxH)  : 503 x 240 x 509 mm

Case dimensions w/o feet/protrusions/screws  : 490 x 240 x 490 mm

Package dimensions : 602x 353 x 606 mm

Net weight : 9.36 kg (Solid), 9.64 kg (TG), 9.75 kg (RGB)

Gross weight : 11.22 kg (Solid), 11.50 kg (TG), 11.61 kg (RGB)
