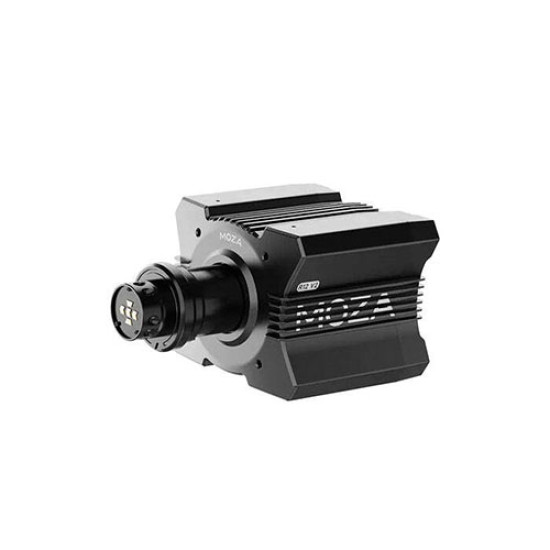

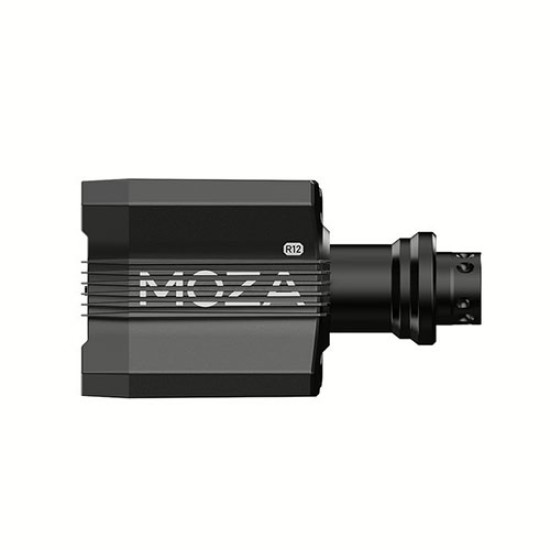

MOZA R12 V2 Direct Drive Wheel Base

MOZA R12 V2 Direct Drive Wheel Base

The MOZA R12 V2 is a 12Nm direct-drive wheel base engineered for professional sim racing. Featuring a 21-bit magnetic encoder with a high-performance processor, a slanted-pole servo motor, and a carbon fiber wrapped rotor for superior thermal management, it delivers precise, responsive, and consistent force feedback with NexGen 4.0 and iRacing 360Hz support. Intelligent temperature control ensures stable performance, while aerospace-grade aluminum construction provides durability. Front-mounted holes allow optional bracket installation, and the MOZA Pit House app enables real-time configuration for ultimate control.

12Nm of Pure Direct Drive Power

Experience next-gen force feedback with a 21-bit encoder, aviation-grade aluminum body, and ultra-responsive control.

Ultra-Fine Resolution for Ultimate Control

Delivers 2,097,152 steps per revolution with 0.00017° resolution for ultra-smooth steering response and incredibly detailed force feedback.

Carbon Fiber Wrapped Rotor

Automotive-grade protection that minimizes eddy current losses and enhances thermal efficiency for long-lasting, consistent performance.

Aviation-grade Aluminum

Aviation-grade aluminum body with automotive-grade paint and laser-etched finish — built for durability and performance.

Compact Design

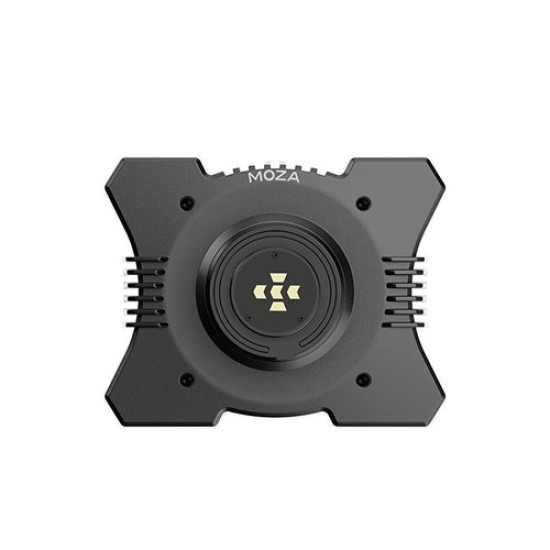

The compact integrated motor design retains a standard 4-hole mount, making it easy to install on most rigs, floorstands, or with a desktop clamp for space-saving convenience.

Hand-off Protection

Advanced hand-off protection stops oscillation, centers the wheel safely, and supports drifting without interruption — all with improved force feedback response.

Specfication :

Platform: PC

FFB Drive System: Direct Drive

Encoder Resolution: 21-bit (2,097,152 PPR)

Max Wheel Rotation: 90~2700°

Housing Material: Aviation-grade aluminum alloy

Housing Color: Black

Peak Torque: 12 N·m

Peak Power: 216W

Input Voltage: 110V~220V AC → 36V DC

USB Refresh Rate: 1000Hz

App Functions: Supported

Quick Release: Supported

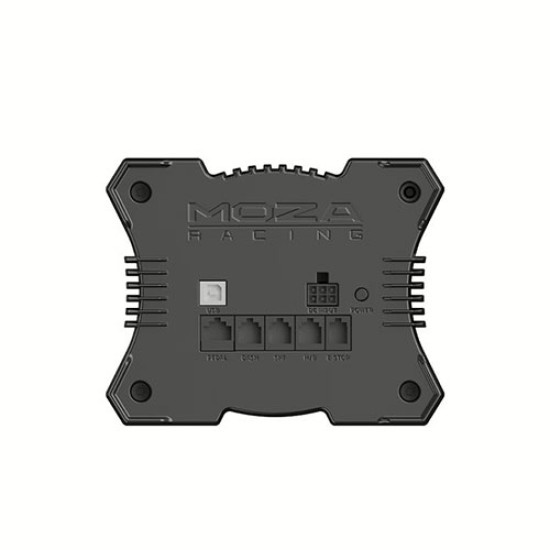

Connection Ports: Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop

Accessories: User manual, power adapter, cable, tool kit

Fixing Method: 4-hole bottom mount

Desk Clamp: Optional

E-stop: Optional

Online Firmware Update: Supported

Weight: 7.5 kg

Dimensions: 225.87 × 156.68 × 123.99 mm
