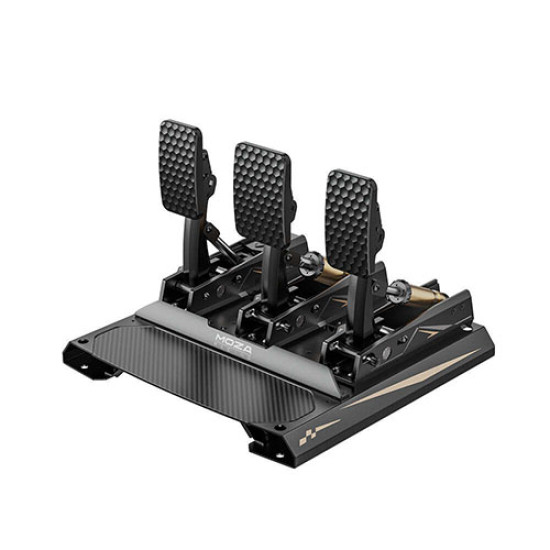

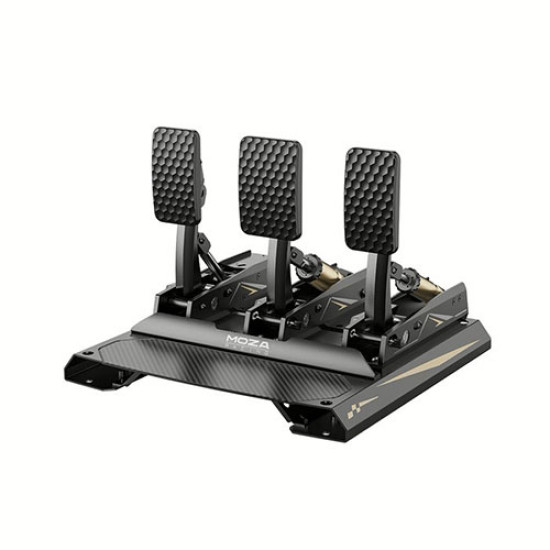

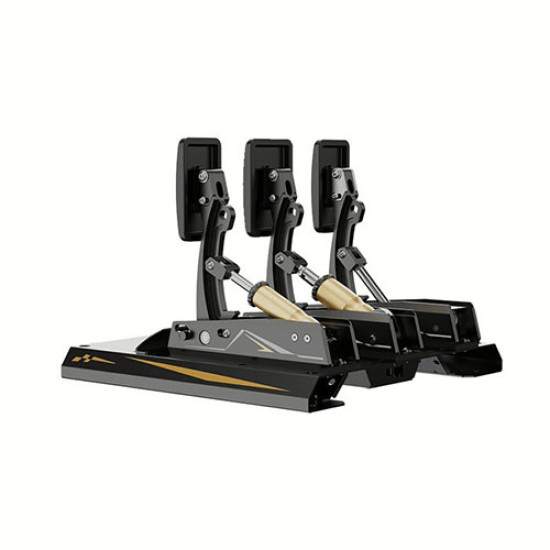

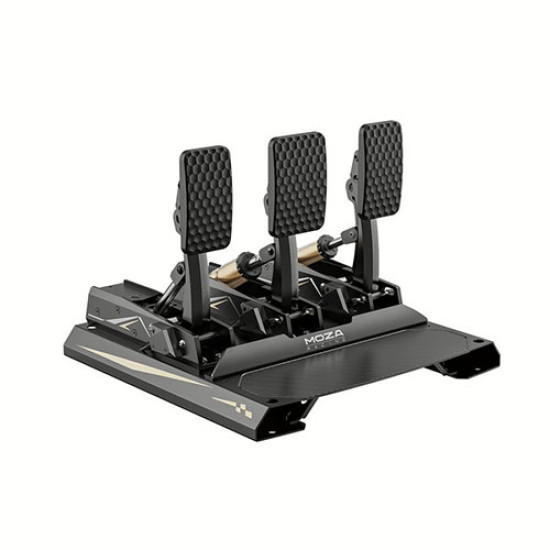

MOZA CRP2 Pedals (Throttle+braker)

MOZA CRP2 Pedals (Throttle+braker)

Introducing the MOZA CRP2 Load Cell Pedals—crafted from CNC aerospace-grade aluminum with a carbon fiber heel plate, these pedals offer unmatched precision and durability. Featuring a 200kg load cell sensor and a 15-bit high-precision angle sensor, the CRP2 delivers accurate and responsive brake feel with up to 1,764 customization options, accommodating everything from road cars to F1-level performance. The tool-free adjustment system ensures quick, effortless tuning, while its sleek, minimalist design integrates seamlessly into any sim racing setup. With support for inverted mounting and full compatibility with PC and Xbox systems, the CRP2 pedals are engineered for serious sim racers seeking professional-grade performance.

Uncompromising Precision. Built for Pro Simulation.

Engineered with a 200KG load cell, aerospace-grade aluminum, and over 125 pedal feel combinations, the CRP2 offers unmatched realism, durability, and customization. Designed for serious sim racers who demand absolute control.

CNC Aerospace-Grade Aluminum Construction

Crafted with CNC-machined aerospace aluminum and a high-strength steel base, the CRP2 ensures unmatched durability and a premium racing-grade finish.

Carbon Fiber Heel Plate

Crafted from 3K twill carbon fiber, the heel plate adds a refined, sporty look while offering just the right amount of grip for precise heel positioning during high-intensity racing.

Smooth, Silent, and Incredibly Responsive

Engineered with polished steel shafts and internal damping, the CRP2 delivers a quiet, smooth, and highly responsive experience — even during intense racing sessions.

Three-Stage Adjustable Clutch

Simulates a high-performance clutch with a progressive three-stage feel: light initial travel, firm mid-range pressure, and a sharp final release. Fully tunable with dual springs and continuous resistance adjustment.

Sensor Fusion with 15-bit Angle Resolution

Combines a 15-bit magnetic angle sensor and load cell with a patented fusion algorithm for ultra-precise braking, leveraging muscle memory and pressure sensitivity.

200KG Load Cell for Pro-Level Braking

Equipped with a rare 200KG load cell sensor, the CRP2 delivers ultra-realistic braking force, accurately replicating the full range of pressure in real race cars.Engineered for Endurance

Each CRP2 pedal is tested to endure over a million presses, ensuring rock-solid durability, consistent performance, and long-term reliability for serious sim racers

Specification :

Pedal Body Material: Aerospace-grade aluminum alloy

Heel Plate Material: 3K twill carbon fiber

Base Material: High-strength steel

Load Cell Sensor Range: 0–200kg

Brake Sensor: Load cell sensor and angle sensor

Angle Sensor Resolution: 15-bit (32768 PPR)

Brake Pedal Feel: 115 standard adjustments, 1764 optional configurations

Throttle Adjustment: Two spring options with infinite adjustment

Clutch Adjustment: Two spring options with infinite adjustment

Brake Travel Adjustment: 15–20°

Throttle Travel Adjustment: 15–23°

Clutch Travel Adjustment: 15–25°

Pedal Angle Adjustment: 0–15°

Pedal Face Height Adjustment: Up to 30mm

Footrest Adjustment: Up to 30mm

Pedal Curve Adjustment: Adjustable

Real-time Pedal Output Display: Adjustable

Pedal Pressure Engagement Point: Adjustable

Pedal Surface: Biomimetic curved

Inverted Mounting Kit: Optional
