Cooler Master Elite Gold 750W ATX 3.1 Fully Modular Power Supply

Features:

Supports ATX 3.1 and PCIe Gen 5.1 standards

Ideal for RTX 50 GPUs

Stable performance under high loads at up to 40°C

Quiet rifle bearing fan for efficient cooling and low noise

750W output with 80 Plus Gold-certified efficiency

Fully modular embossed cable design

Reliable 10-year warranty

ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS

Cooler Master Elite Gold 750 is designed for reliable everyday gaming builds. With full ATX 3.1 and PCIe 5.1 support, it ensures stable performance and compatibility with the latest and upcoming mid-range GPUs. Offering 80 Plus Gold efficiency, dependable operation at up to 40°C, and a quiet rifle bearing fan, it delivers efficient and quiet power. A compact 140mm form factor makes installation easy across a wide range of cases, while fully modular embossed cables simplify cable management. Backed by a 10-year warranty, the Elite Gold 750 provides lasting confidence and stability for your system.

Compatible with ATX 3.1 and PCIe Gen 5.1

ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of its rated output, making the Elite Gold 750 ready for the latest and upcoming mid-range GPUs.

HIGH TEMPERATURE RESILIENCE

Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.

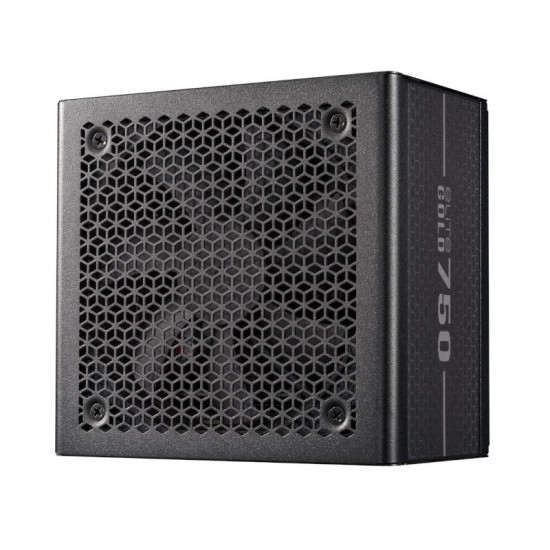

RIFLE BEARING FAN

The rifle bearing fan offers a longer lifespan while providing better noise reduction for consistent, reliable cooling.

80 PLUS GOLD CERTIFIED EFFICIENCY

Cooler Master Elite Gold 750 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.

COMPACT FORM FACTOR

Unlike typical high-wattage PSUs that extend beyond 150mm, the Elite Gold’s compact design at 150mm or less ensures easy installation across a wide range of cases, making it ideal for space-conscious PC builds.

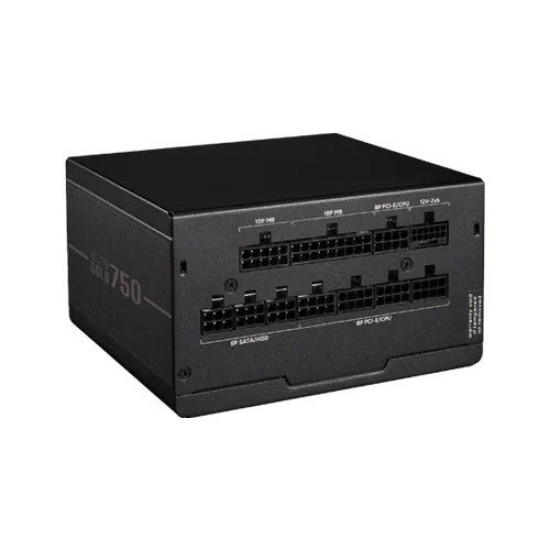

Fully Modular Embossed Cable Design

The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.

ATX Version: ATX 12V Ver.3.1

PFC: Active PFC

Input Voltage: 100-240V

Input Current: 5 ~ 10A

Input Frequency: 50-60Hz

Fan Size: 120mm

Fan Bearing: Rifle bearing

Efficiency: ≥90% @ Typical Load

80 PLUS Rating: 80 PLUS Gold

ErP 2014 Lot 3: Yes

Operating Temperature: 0-40°C

Power Good Signal: 100 - 150 ms

Hold Up Time: ≥ 11ms @ 100% Load

MTBF: >100,000 hours​ @ 25℃ ambient

Protections: UVP / OVP / OPP / OTP / SCP

Regulatory: cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0

ATX 24 Pin Connectors: x1 = 1 (550mm)

EPS 4+4 Pin / EPS 8 Pin Connectors: x2 = 1 (600+120mm)

SATA & Peripheral 4 Pin Connectors: X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]

PCI-e 6+2 Pin Connectors: x2 = 1 (500+120mm)

12+4 Pin Connectors: x1 = 1 (650mm)

Series: Elite Series

Form Factor: ATX

Watts: 750W

Modular: Fully Modular

80 Plus Efficiency: Gold

Specifcation :

Psu

Wattage : 700 Watt

Series : ELITE SERIES

Certification : 80 Plus Gold

Modular   : FULLY MODULAR

PCIe Connector (6+2) : 2

SATA Connector : 4

Peripheral (4-Pin) : 2
