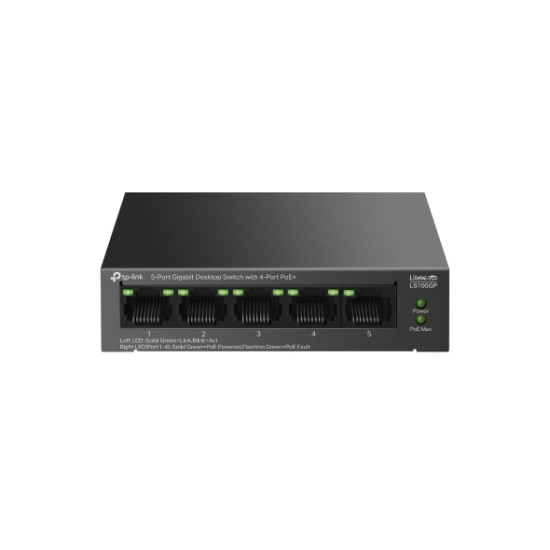

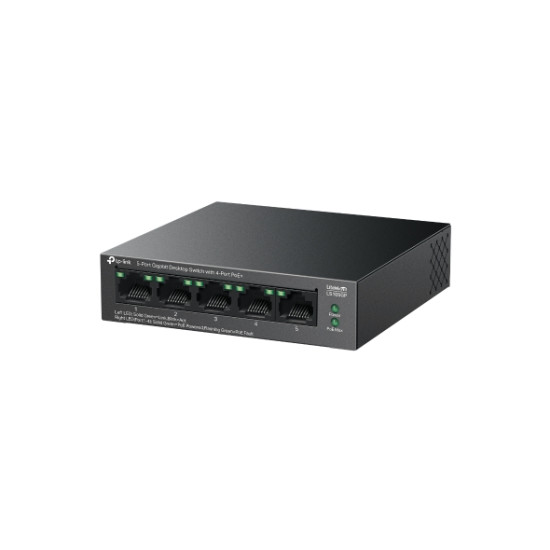

TP Link LS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+

TP Link LS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+

Full Gigabit Ports: Five gigabit augo-negotiation ports provide up to 10 Gbps switching capacity.

65 W PoE Budget: Four gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*

Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**

PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.

Plug and Play: Simply plug and play for instant connectivity with no configuration required.

Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

HARDWARE FEATURES

Interface

• 5× 10/100/1000Mbps RJ45 Ports (Ports 1–4 supports 802.3af/at PoE+)

• AUTO Negotiation

• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

Installation • Desktop

• Wall Mounting

Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)

PoE Ports (RJ45) • Standard: 802.3 af/at compliant

• PoE Ports: Ports 1–4, up to 30 W PoE output per port

• Power Supply: 65 W

Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)

Max Power Consumption • 4 W (220/50 Hz. no PD connected)

• 74.46 W (220/50 Hz. with 65 W PD connected)

Max Heat Dissipation • 13.6 BTU/h (no PD connected)

• 253.16 BTU/h (with 65 W PD connected)

PERFORMANCE

Switching Capacity 10 Gbps

Packet Forwarding Rate 7.44 Mpps

MAC Address Table 2K

Jumbo Frame 16 KB

SOFTWARE FEATURES

Advanced Features

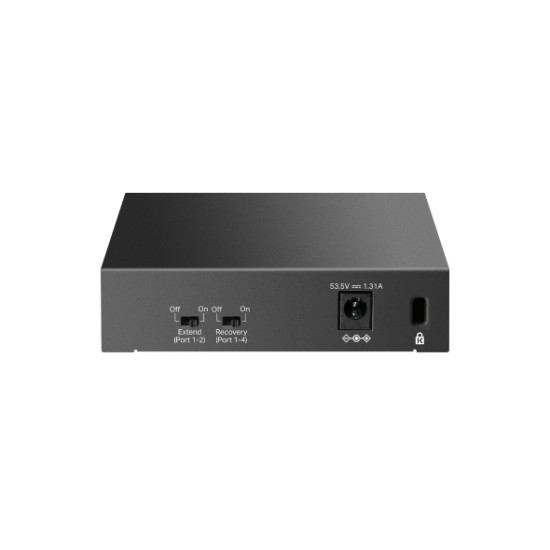

• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)

• PoE Auto Recovery Button (Ports 1-4)

• Compatible With IEEE 802.3af/at Compliant PDs

• Mac Address Auto-Learning and Auto-Aging

• IEEE 802.3x Flow Control

• 802.1p/DSCP QoS

• IGMP Snooping

• Green Technology

Transfer Method Store-And-Forward

OTHERS

Certification FCC, CE, RoHS

Package Contents

• LS105GP

• Power Adapter

• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉);

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
