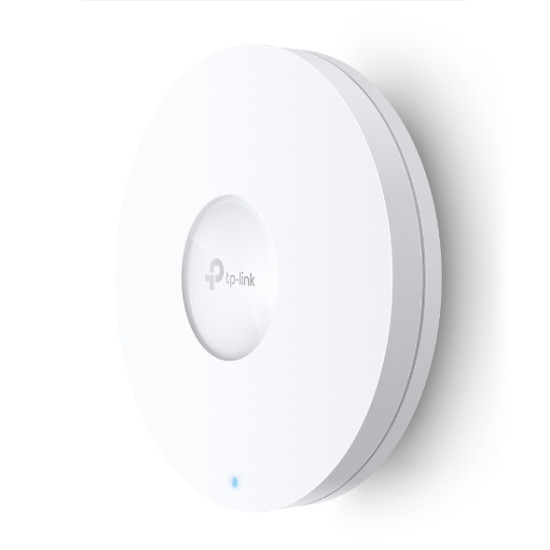

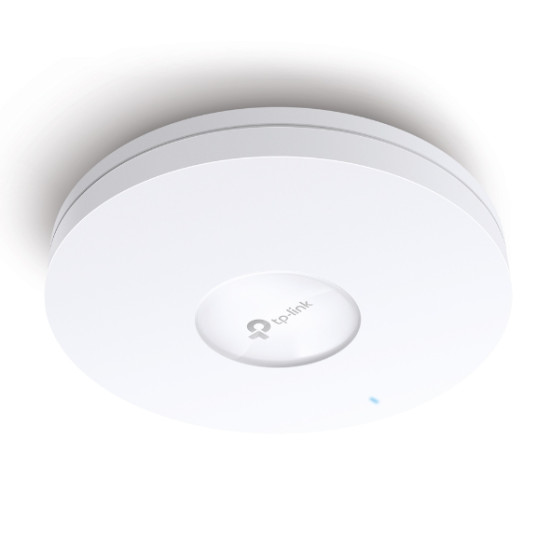

TP Link AX1800 Wireless Dual Band Ceiling Mount Access Point (EAP620 HD)

AX1800 Wireless Dual Band Ceiling Mount Access Point

Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†

High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.△

PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.

Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

HARDWARE FEATURES

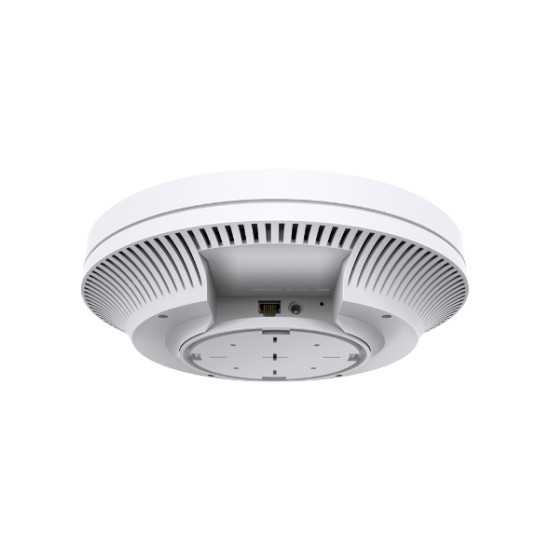

Interface : 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Button : Reset

Power Supply • 802.3at PoE

• 12 V DC

Power Consumption • EU: 12 W

• US: 13.5 W

Dimensions ( W x D x H ) : 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)

Antenna Type Internal Omni

• 2.4 GHz: 2× 4 dBi

• 5 GHz: 2× 5 dBi

Mounting : Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards : IEEE 802.11ax/ac/n/g/b/a

Frequency : 2.4 GHz and 5 GHz

Signal Rate : 5 GHz: Up to 1201 Mbps

2.4 GHz: Up to 574 Mbps

Wireless Functions

• 1024-QAM

• 4× Longer OFDM Symbol

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO

• Seamless Roaming△

• Omada Mesh△

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security

• Captive Portal Authentication△

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power • CE:

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz, EIRP)

• FCC:

<25 dBm (2.4 GHz)

<25 dBm (5 GHz)

MANAGEMENT

Omada App : Yes

Centralized Management • Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access : Yes (Through OC300, OC200, or Omada Software Controller)

Email Alerts : Yes

LED ON/OFF Control : Yes

Management MAC Access Control : Yes

SNMP v1, v2c, v3

System Logging Local/Remote Syslog Local/Remote Syslog

SSH : Yes

Web-based Management : HTTP/HTTPS

L3 Management : Yes

Multi-site Management : Yes

Management VLAN : Yes

OTHERS

Certification CE, FCC, RoHS

Package Contents

• EAP620 HD

• Power Adapter

• Ceiling/Wall Mounting Kits

• Installation Guide

System Requirements : Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
