Arctic Freezer 8A Compact AMD CPU Cooler (ACFRE00161A)

Arctic Freezer 8A Compact AMD CPU Cooler (ACFRE00161A

Fluid Dynamic Bearing

The low-friction sleeve bearing ensures particularly quiet operation - the fan runs pleasantly quietly both at low speeds and under varying loads.

Pre-Applied MX-6 | Freezer 8

The Freezer 8A is supplied with ARCTIC high-performance thermal paste so that the cooler can be installed and put into operation immediately.

Optional Offset Mounting for AMD

Allows offset mounting of the heatsink towards the CPU hotspot, optimizing alignment for asymmetric multi-die CPUs and ensuring more efficient heat transfer.

Compact Design

Thanks to its low height, the Freezer 8A is ideal for compact cases and offers maximum compatibility with high RAM modules and nearby components.

Einfache Installation

For AMD Sockets AM5 and AM4

The scope of delivery only includes mounting material for AMD systems - this reduces packaging waste and saves unnecessary material.

Freezer 8 | Heatpipes

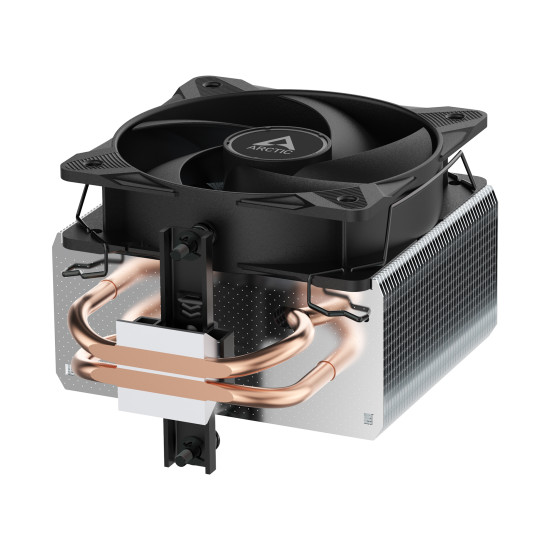

Efficient Cooling with Offset Heatpipes

The offset arrangement ensures optimal heat transfer from the base to the fins – for even heat distribution and improved cooling performance.

General Specifications

TIM MX-6 pre-applied

Warranty : 6 Years

Operating Ambient Temperature : 0—40 °C

Dimensions : 83 (L) x 108 (W) x 136 (H) mm

Weight : 415 g

Compatibillity : AMD® AM5, AM4

Heatsink Specifications

Heat Pipe : 2x Ø 6 mm Copper, Direct Touch

Heatsink : 46x 0.4 mm Aluminium Fins

Fan Specifications

General

1x P10 PWM

100 (L) x 100 (W) x 25 (H) mm

Speed 200–2300 rpm, PWM Controlled

(0 rpm below 5 % PWM)

Bearing Fluid Dynamic Bearing

Current | Voltage 0.13 A | 12 V DC

Connector 4-Pin Fan Plug
