Thermaltake View 71 Tempered Glass ARGB Edition Full Tower Chassis (CA-1I7-00F1WN-03)

View 71 Tempered Glass ARGB Edition

The Thermaltake View 71 TG ARGB is a stunning full tower case which comes with three pre-installed 140mm ARGB fans, built-in power cover, and can support motherboards up to E-ATX.

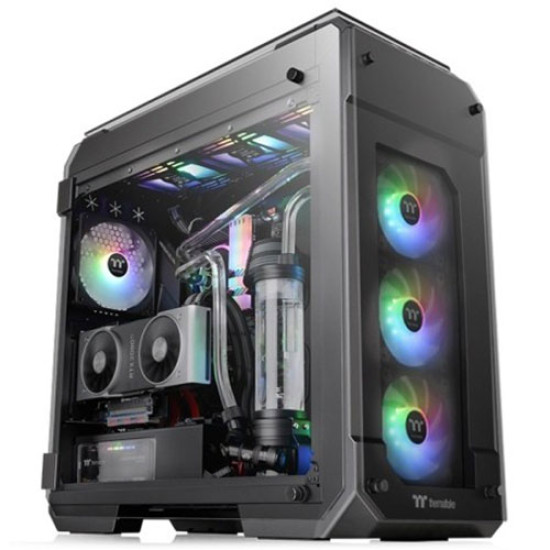

Thermaltake View 71 Tempered Glass ARGB Edition Full Tower Chassis

Designed to expand the legacy of the View Series lineup, the View 71 Tempered Glass ARGB Edition full-tower chassis features three 140mm 5V ARGB fans with two at the front and one at the rear for outstanding ventilation. Its seven drive trays with modular drive racks deliver advanced storage capacity and excellent liquid cooling expansion. This elegant chassis utilizes swing-out side panels, and is enclosed in four-side 5mm tempered glass panels for users to demonstrate their DIY handwork and showcase their internal components. With support for the latest PC hardware, the View 71 TG ARGB Edition is not only fascinating in appearance but comes with endless possibilities for pc lovers.

TT Premium

To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.

Tt LCS Certified

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome. It supports motherboards that have a 5V addressable RGB header, allowing you to control the lights directly from the above-mentioned software without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI and ASRock official websites.

Tempered Glass Panels

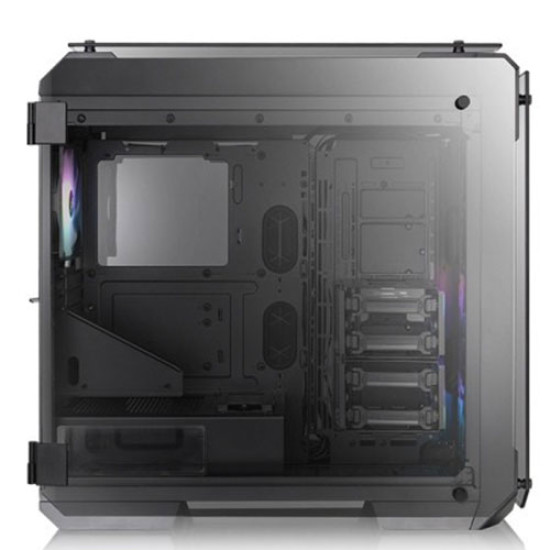

The chassis comes with four 5mm tempered glass panels, thicker and more scratch resistant when compared to standard acrylic. Swing Doors on either side allow user easy access to the internal components as well as the ability to remove the doors entirely for complete access to the internals. On top of this, the enlarged window design enables you to display and admire all your components in their full RGB glory

Fully Customisable

The View 71 TG ARGB comes with full modular drive cages that allow easy installation/removal and maximizes the interior space for custom cooling loops. Above all, the tool-less drive bay design allows users to freely interchange the 3.5” and 2.5” hard-drives to suit their particular needs.

Vertical GPU Mount

Specially designed with dual GPU placement options, the View 71 TG ARGB has support for both vertical and horizontal graphics card layouts. With dual PCI-E slot designs (and an optional PCI-e riser cable), the included riser GPU support bracket can not only prevent the graphics card from sagging, but also help reduce the overall weight on the motherboard.

Extensive Hardware and Liquid Cooling Support

The View 71 TG ARGB Edition has plenty of space for advanced AIO/DIY liquid cooling components and supports all kinds of AIO liquid cooling solutions. It is able to hold up to triple 420mm custom liquid cooling radiators and up to 360mm AIO liquid coolers. Most importantly, the case design is optimized for providing users a quick way to access the drain valve without having to tilt the entire PC when draining coolant from the loop. Moreover, the View 71 TG ARGB Edition maximizes airflow with three built-in 140mm 5V ARGB fans. Options for up to three 120mm front fans, combined with two bottom mount 120mm fan locations and top rails to mount up to three 120mm or 140mm fans.

Specification

P/N : CA-1I7-00F1WN-03

Serie : View

Model : View 71 TG ARGB

CASE TYPE : Full Tower

Dimension (H x W x D) : 577 x 274 x 592 mm

(22.7 x 10.8 x 23.3 inch)

NET WEIGHT : 19.3 kg / 42.55 lb

PANEL : 5mm Tempered Glass x 4 (Left & Right & Front & Top)

Color : Exterior & Interior : Black

MATERIAL : SPCC

COOLING SYSTEM

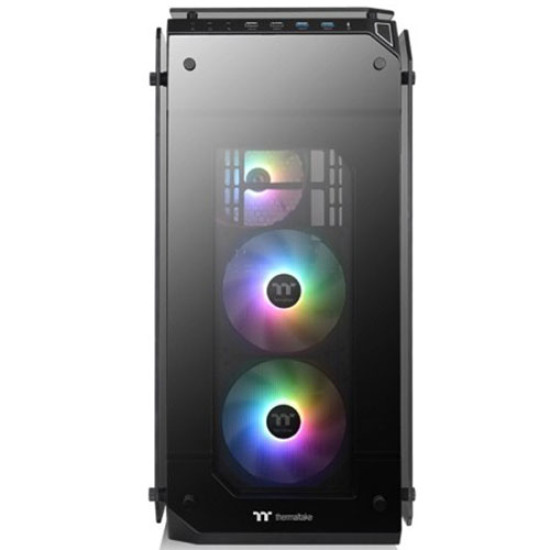

Front (intake) :  :140 x 140 x 25 mm ARGB fan (1000rpm, 22.8 dBA) x 2

Rear (exhaust) : : 140 x 140 x 25 mm ARGB fan (1000rpm, 22.8 dBA)

Drive Bays

-Accessible

-Hidden

2.5” x 4 or 3.5”x4 (HDD Rack)

2.5”x 6 or 3.5” x 3

EXPANSION SLOTS : 8+2

MOTHERBOARDS : 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX)

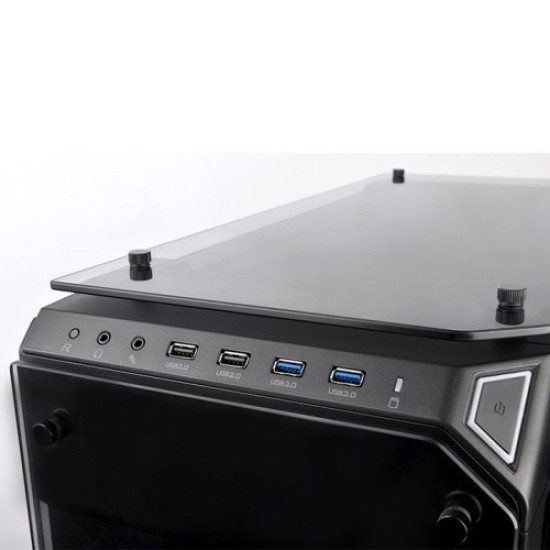

I/O Port : USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, RGB Button x 1

PSU : Standard PS2 PSU (optional)

FAN SUPPORT

Front: : 3 x 120mm , 2 x 140mm

Top: : 3 x 120mm , 3 x 140mm

Rear: : 1 x 120mm, 1 x 140mm

Bottom: : 2 x 120mm

RADIATOR SUPPORT

Front: : 1 x 360mm , 1 x 420mm

Top: : 1 x 360mm , 1 x 420mm

Rear: : 1 x 120mm, 1 x 140mm

Right: : 1 x 360mm, 1 x 420mm

Bottom: 1 x 240mm

CLEARANCE

CPU cooler height limitation: 190mm

VGA length limitation: 310mm(With HDD Rack)

410mm(Without HDD Rack)

PSU length limitation: 220mm (Without Bottom Fan)
