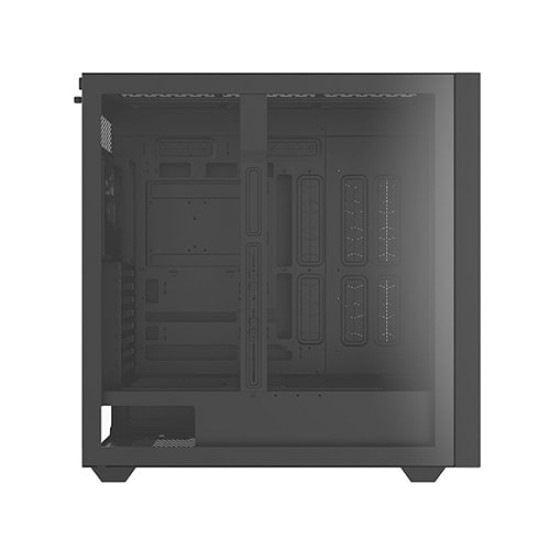

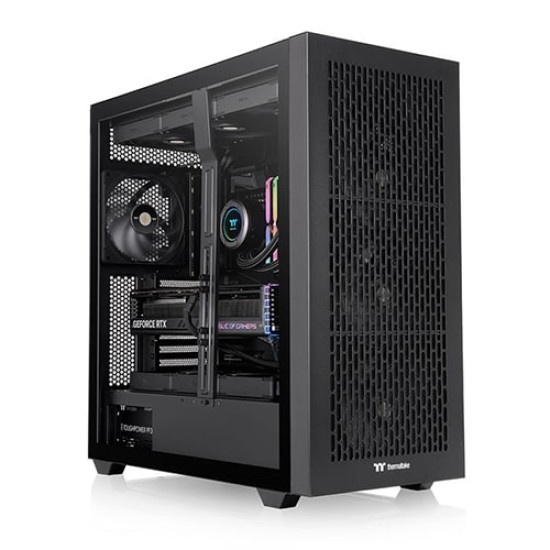

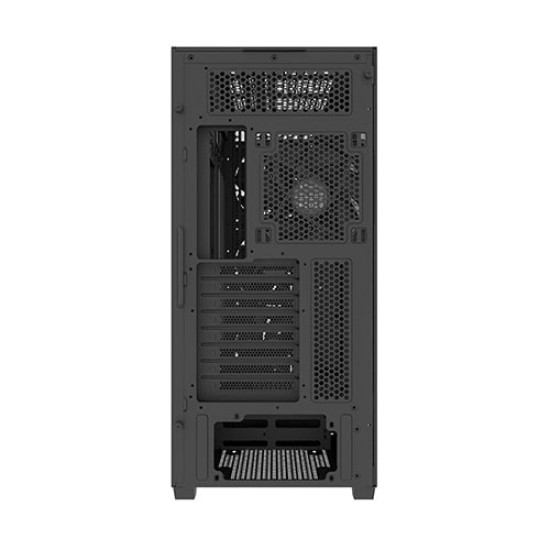

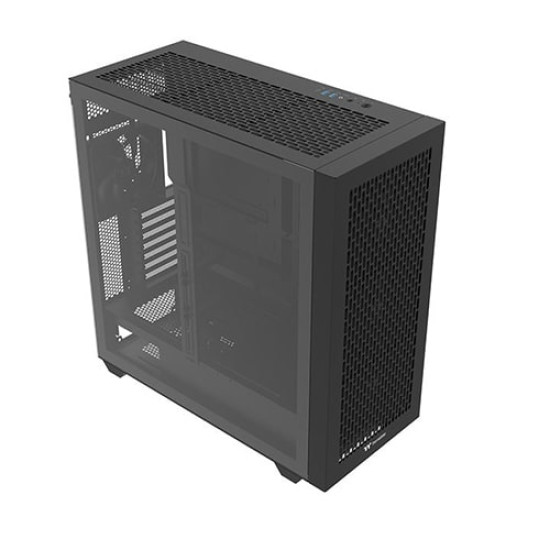

Thermaltake AX500 Full Tower Chassis Black (CA-11D-00F1WN-00)

Key Features

AX500 Full Tower Chassis

The AX500 Full Tower Chassis supports E-ATX/SSI-EEB motherboards, dual 420mm radiators, and up to fourteen 120mm fans for optimal airflow. It features a graphics card holder to prevent sagging and two drive cages beneath the PSU cover, ideal for high-performance workstations or gaming setups.

Compatible with Hidden-Connector Motherboards

The AX500 Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.

Excellent Radiator Support

Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.

Four 140mm CT140 Fans Pre-installed

Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.

Superior Cooling Support

Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.

GPU Holder

The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.

Storage Support

Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5” or two 2.5” hard drives.

Tidy Cable Management

The AX500 series chassis offers ample cable management clearance with multiple anchor points behind the motherboard, and includes Velcro straps and cable ties for organization.

Superior Hardware Support

The AX500 Full Tower Chassis supports a CPU cooler up to 185mm, a GPU up to 460mm, and a power supply up to 200mm. It comes with four CT140 fans and supports up to fourteen 120mm or nine 140mm fans, along with dual 420mm/360mm radiators on the top and front for superior cooling and premium expansion options.

Perfect Dust Protection

The AX500 Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.

Specification

P/N : CA-11D-00F1WN-00

Series : AX Series

Model : AX500

CASE TYPE : Full Tower

Dimension (H x W x D) : 550 x 248 x 548 mm (21.7 x 9.8 x 21.6 inch)

PANEL : Steel + TG

Color : Black

MATERIAL : SPCC

COOLING SYSTEM : 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 4

Drive Bays -Accessible -Hidden : 5 x 3.5” , 1 x 2.5” or 6 x 2.5”

EXPANSION SLOTS :  : 8

Hidden-Connector Motherboard : 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O Port : USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU : Standard PS2 PSU (optional)

MOTHERBOARDS

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) ,

12” x 13” (E-ATX), SSI-CEB, SSI-EEB

FAN SUPPORT

Front:

4 x 120mm ,3x 120mm , 2x 120mm , 1x 120mm

3 x 140mm , 2x 140mm , 1x 140mm

Top:

3 x 120mm , 2x 120mm , 1x 120mm

3 x 140mm , 2x 140mm , 1x 140mm

Rear:

1 x 120mm , 1 x 140mm

Right:

3 x 120mm , 2x 120mm , 1x 120mm

2 x 140mm , 1x 140mm

Power Cover:

3 x 120mm , 2x 120mm , 1x 120mm

RADIATOR SUPPORT

Front (AIO):

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

Top (AIO):

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

Rear(AIO):

1 x 120mm , 1 x 140mm

CLEARANCE

CPU cooler height limitation: 185mm(Max)

VGA length limitation:460mm(Max)

PSU length limitation: 200mm (Max)
