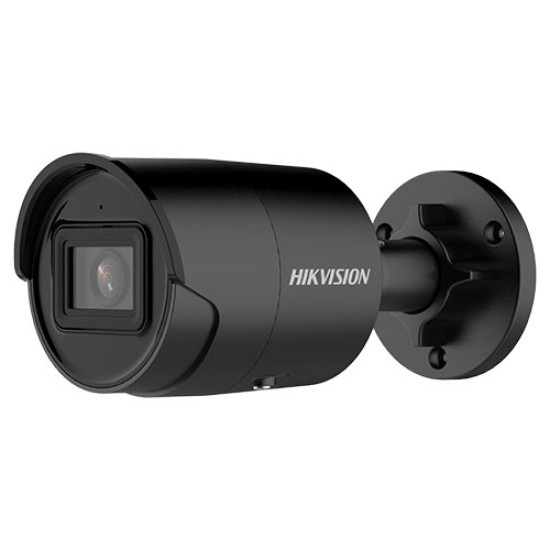

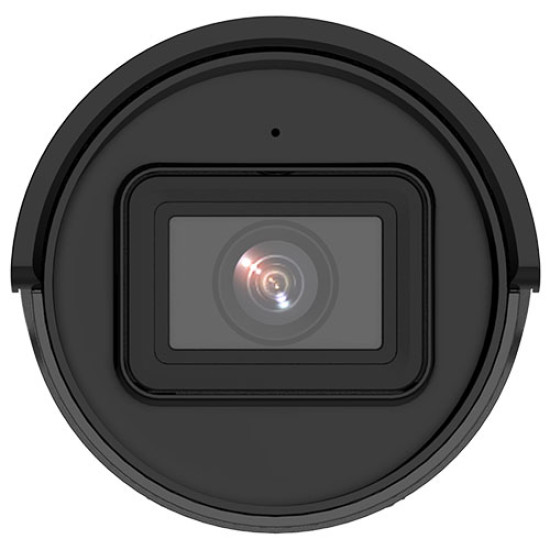

Hikvision 6MP AcuSense Fixed Bullet Network Camera (DS-2CD2063G2-IU)

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

6 MP AcuSense Fixed Bullet Network Camera

• High quality imaging with 6 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 120 dB WDR
• technology
• Focusing on human and vehicle classification based on
• deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)

Specification
Camera
Image Sensor : 1/2.8" Progressive Scan CMOS
Max. Resolution : 3200 × 1800
Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time : 1/3 s to 1/100,000 s
Day & Night : IR cut filter
Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
Lens Type : Fixed focal lens, 2.8, 4, and 6 mm optional
Lens Mount : M12
Iris Type : Fixed
Aperture : F1.6
Focal Length & FOV
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°

DORI
DORI
2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m
4 mm: D: 90 m, O: 35 m, R: 18 m, I: 9 m
6 mm: D: 147 m, O: 58 m, R: 29 m, I: 15 m

Illuminator
Supplement Light Type : IR
Supplement Light Range : Up to 40 m
Smart Supplement Light : Yes
IR Wavelength : 850 nm

Video
Video Bit Rate : 32 Kbps to 16 Mbps
H.264 Type : Baseline Profile/Main Profile/High Profile
H.265 Type : Main Profile
Bit Rate Control : CBR/VBR
Scalable Video Coding (SVC) : H.264 and H.265 encoding
Region Of Interest (ROI) : 1 fixed region for main stream and sub-stream

Main Stream
50 Hz:
20 fps (3200 × 1800)
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3200 × 1800)
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.

Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.

Audio
Audio Compression
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Sampling Rate
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
-U: Yes

Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters Switch : Yes
Image Settings : Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch : Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) : 120 dB
SNR : ≥ 52 dB
Image Enhancement : BLC, HLC, 3D DNR

Interface
Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage : Built-in memory card slot, support microSD card, up to 256 GB
Built-In Microphone : -U: Yes
Reset Key : Yes

Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))
Face detection
Linkage
Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email

General

Dimension : Ø70 mm × 161.7 mm (Ø2.8" × 6.4")
Package Dimension : 216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7")/Approx. 485 g (1.1 lb.)
With Package Weight : Approx. 744 g (1.6 lb.)
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function : Anti-flicker, heartbeat, password reset via email, pixel counter

Power
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.13 A, max. 7.2 W

Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC
FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 6, 2016) KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1) CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013) CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment
CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013)
