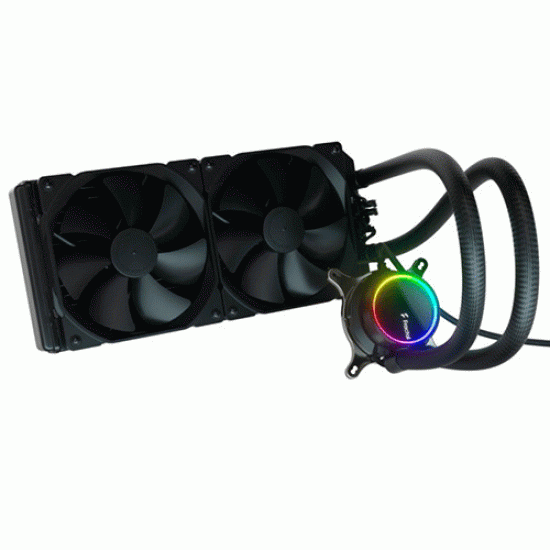

Fractal Design Celsius+ S28 Dynamic ARGB CPU Liquid Cooler (FD-W-2-S2801)

Cool, quiet and colorful

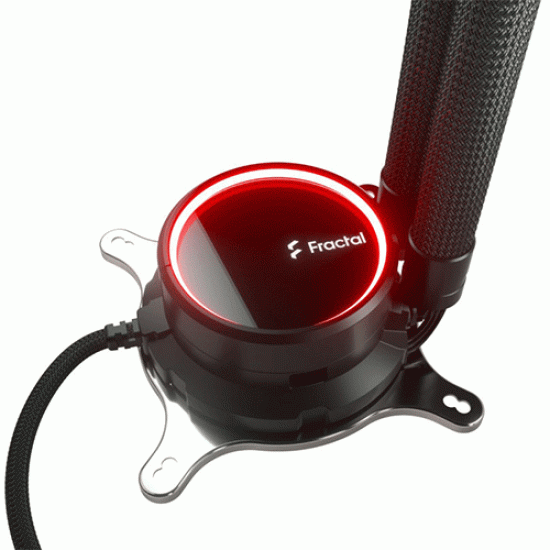

Stylish glass pump face with backlit logo and ARGB LED effects

Outstanding airflow

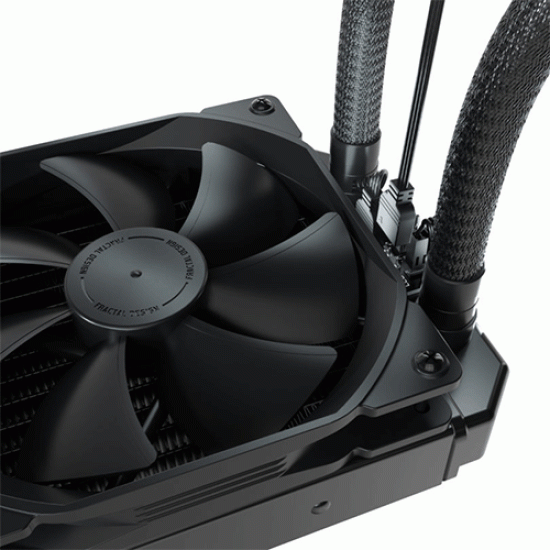

High-performance Dynamic X2 PWM fans provide excellent airflow with minimal noise

Optimized fan geometry balances airflow with extra emphasis on static pressure

Strategic blade notches diffuse noise from blade/stator interaction

Trip Wire technology reduces blade turbulence

LLS (Long Life Sleeve) fan bearings provide silent operation with a long lifespan

Get the balance right

Our intelligent auto mode dynamically adjusts the fan and pump speeds for optimized silent performance – and a simple twist of the pump face changes to PWM mode for full user control

Tidier through technology

ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation

Forget the thermal paste

With the Celsius+, the thermal paste is pre-applied to ensure a mess-free installation

Color-coordinated cooling

Your options for controlling the color effects of Celsius+ are continually growing, with current certifications including Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma and ASRock Polychrome support

Mounting made easy

Supports the most common sockets for both Intel and AMD

Compatible with LGA 1700 and AM5

Specification :

Sockets supported (Intel) : 1700*, 1851*, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066

Sockets supported (AMD) : AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+

* Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version

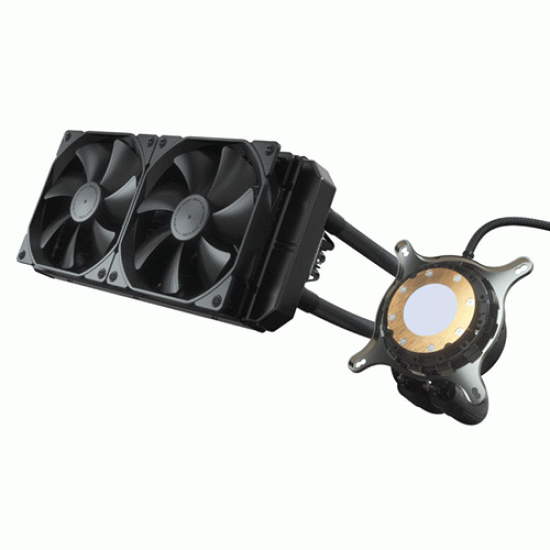

Coldplate material : Copper

Thermal paste : Pre-applied

Tube length : 400 mm

Tube material : Low-permeability rubber with braided nylon sleeve

Fittings, block side : Articulating 90-degree elbow

Fittings, radiator side : Straight rotary

Fan control : Dual mode (Auto/PWM)

Note : The Celsius+ is NOT compatible with the Adjust R1

Fan specifications :

Fan type : Dynamic X2 GP-14 PWM

Rotational speed : 500 – 1700 RPM

Bearing : LLS

PWM control : Yes

Acoustical noise (full speed) : 33.7 dBA

Maximum air flow : 105.9 CFM

Maximum static pressure : 1.95 mm H2O

Input voltage : 12V DC

Maximum input current : 0.25A

MTBF : 100,000 hours

Pump specifications :

Rotational speed :

800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C

Bearing type : Ceramic bearing and shaft

PWM control : Yes

Acoustical noise (full speed) : 20 dBA

Maximum pressure : 14.4 kPa / 1.46 mm H2O /2.0 PSI

Input voltage : 12V DC

Input current (without fans) : 0.36A

MTTF : 50,000 hours

Block height : 45 mm

Block measurements (with fittings) : 86 x 75 mm

Block diameter (main block body) : 62 mm

Pump specifications :

Rotational speed :

800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C

Bearing type : Ceramic bearing and shaft

PWM control : Yes

Acoustical noise (full speed) : 20 dBA

Maximum pressure : 14.4 kPa / 1.46 mm H2O /2.0 PSI

Input voltage : 12V DC

Input current (without fans) : 0.36A

MTTF : 50,000 hours

Block height : 45 mm

Block measurements (with fittings) : 86 x 75 mm

Block diameter (main block body) : 62 mm

Radiator specifications :

Dimensions : 143 x 30 x 324 mm

Housing material : Aluminum

Fin material : Aluminum

Fan screw threads : 6-32

Other :

Package contents :

Celsius+ S28 unit, 2 x 140 mm fans, User manual, Mounting hardware for all listed sockets, Fan and radiator mounting screws

Package Dimensions : 411 x 187 x 160 mm
