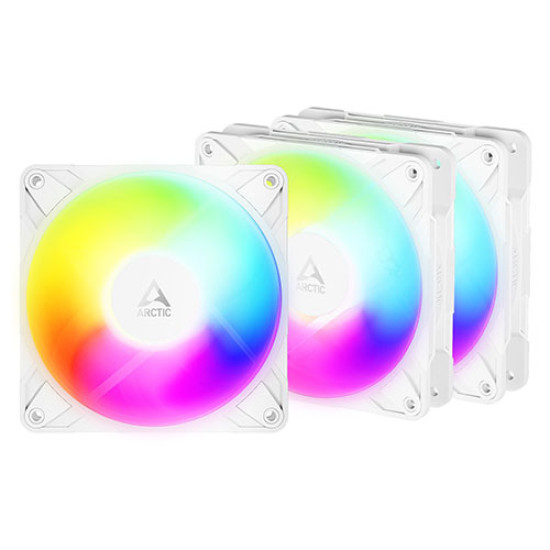

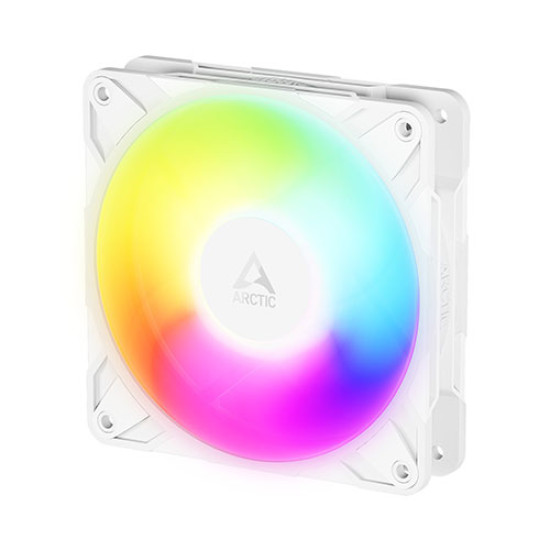

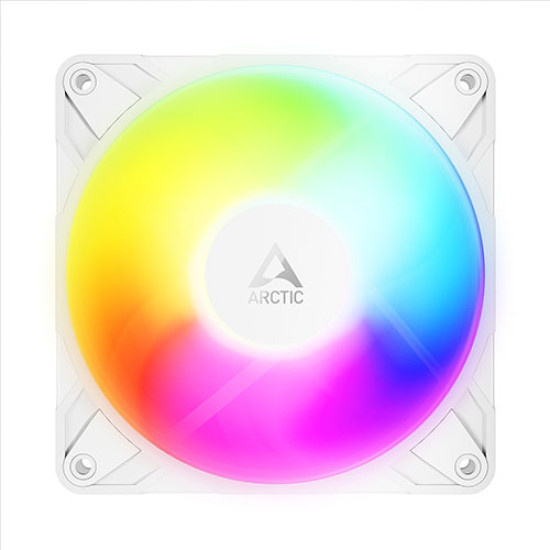

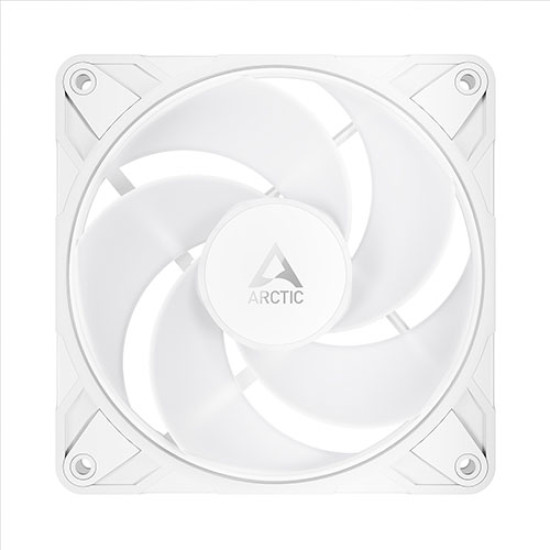

Arctic P12 Pro Reverse A-RGB (White) 3 Pack (ACFAN00334A)

Reversed Airflow

The P12 Pro Reverse is specifically designed for air intake from the back side. It's particularly suitable when conventional fans would compromise the aesthetics.

500–3000 rpm : Fan Speed

Fluid Dynamic Bearing : Bearing

4.50 mm H2O : Static Pressure

73 cfm | 124.03 m³/h : Airflow

Optimized Airflow Design

The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses.

This reduces air resistance, minimising turbulence and aerodynamic noise.

SOTA Microcon

trollerReduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

More Power – Less Noise

An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy.

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

PST – Easy Cable Management and Synchronized PWM Control

Thanks to the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously through a single header.

Specification:

Operating Ambient Temperature : 0–40 °C

Dimensions : 120 (L) x 120 (W) 27 (H) mm

Net Weight : 172 g

Fan Specifications:

Fan Speed :

500 -3000 rpm PWM Controlled

0 rpm below 5% PWM

Airflow : 73 cfm | 124 m³/h

Static Pressure : 4.5 mmH2O

Fan Bearing : Fluid Dynamic Bearing

Typical Voltage : 12 V DC

Start Up Voltage : 3.5 V DC

Current 0.4 A

Cable Length : 400 mm + 80 mm Daisy-Chain Cable

Connector : 4-Pin Fan Plug + 4-Pin Socket

RGB Specifications:

LEDs : 12x A-RGB LEDs

Current | Voltage : 0.40 A | 5 V DC

Connector : 3-Pin A-RGB Plug + 3-Pin Socket
