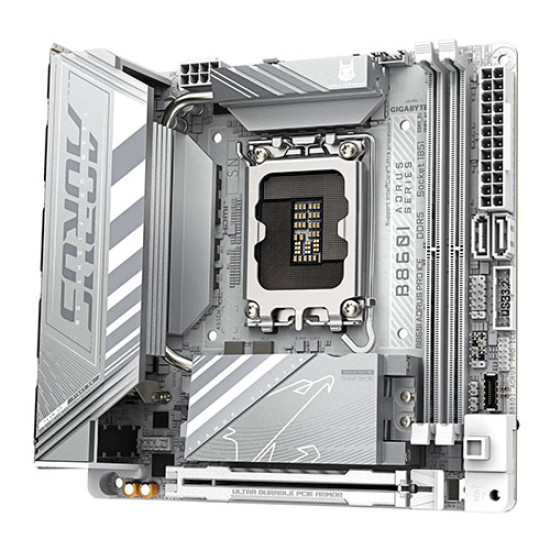

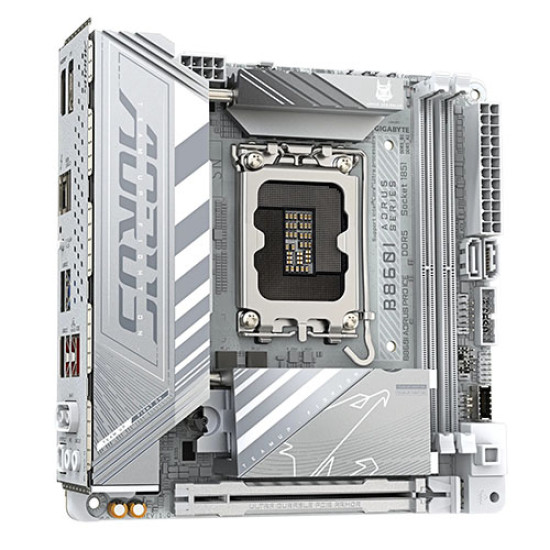

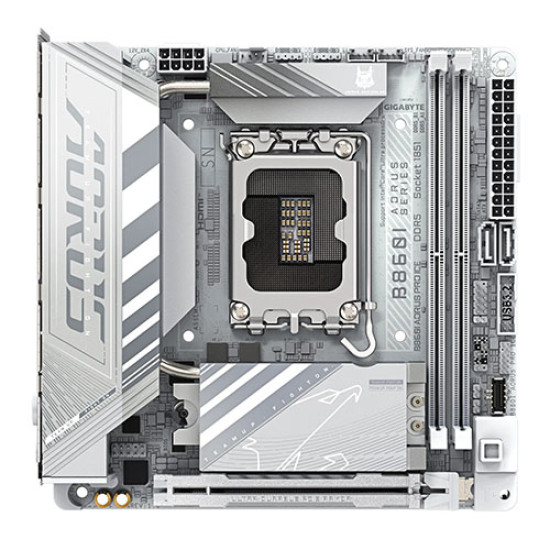

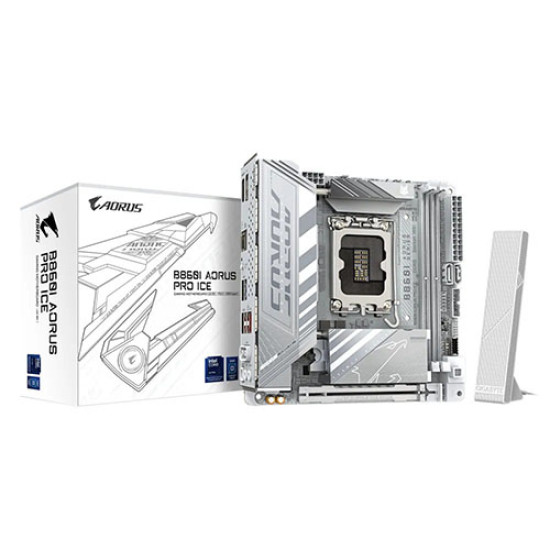

Gigabyte B860I AORUS PRO ICE DDR5 Intel Motherboard

Key Features

• Supports Intel® Core™ Ultra processors (Series 2)
• Digital 8+1+2 phases VRM solution
• Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : ThunderBolt4™ Type-C with DP-Alt, HDMI, DisplayPort

Infinite Memory Performance

AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Steady Power

Better Play Elite Series, steady power keeps your gaming smooth.

Comprehensive Thermal

Elite motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient

Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

All-round Connectivity

Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Born from Ultra Durable™

Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel.

Collaborative Excellence in Computing

GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

Specification

Chipset : Intel ® B860 Express Chipset

LAN : Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

I/O Controller : iTE® I/O Controller Chip

Operating System : Support for Windows 11 64-bit

Form Factor : Mini-ITX Form Factor; 17.0cm x 17.0cm

CPU

LGA1851 socket: Support for Intel ® Core™ Ultra Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Memory

Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port),supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolutionsupported is 5120x2880@60 Hz with 24 bpp (single display output).When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

(Graphics specifications may vary depending on CPU support.)

Support for up to triple-display at the same time

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Wireless Communication module

Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0)

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1)

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

Storage Interface

CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)

Chipset:

- 1 x M.2 connector on the back of the motherboard (Socket 3, M key,type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

- 2 x SATA 6Gb/s connectors

RAID 0 and RAID 1 support for SATA storage devices

USB

CPU:

- 1 x USB4® USB Type-C® port on the back panel

Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 2 x USB 2.0/1.1 ports available through the internal USB header

Chipset+USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

1 x system fan header

2 x addressable RGB Gen2 LED strip headers

2 x M.2 Socket 3 connectors

2 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x speaker header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x reset jumper

1 x Clear CMOS jumper

Back Panel Connectors

1 x DisplayPort*

1 x HDMI port*

1 x Intel® Thunderbolt™ 4* connector (USB4® USB Type-C® port)

3 x USB 3.2 Gen 2 Type-A ports (red)

2 x USB 3.2 Gen 1 ports

1 x Q-Flash Plus button

1 x RJ-45 port

2 x antenna connectors (2T2R)

2 x audio jacks

1 x optical S/PDIF Out connector

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software
