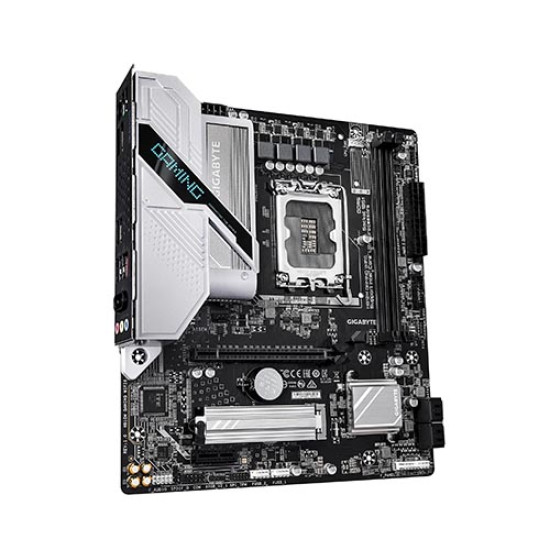

Gigabyte H810M GAMING WIFI6 DDR5 Intel Motherboard

Key Features

• Supports Intel® Core™ Ultra processors (Series 2)
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch: PCIe x16 Slot with Quick Release Design
• M.2 EZ-Latch Plus: Screwless installation for M.2 SSDs
• Friendly UI: Multi-Theme, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage: PCIe 4.0 x4 M.2 slots
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
• Extended Connectivity: HDMI, DisplayPort

Steady Power

Better Play GAMING Series, steady power keeps your gaming smooth.

Comprehensive Thermal

GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

Future Connectivity

Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Born from Ultra Durable™

Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.

Collaborative Excellence in Computing

GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

Specification

Chipset : Intel® H810 Express Chipset

LAN : Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Form Factor : Micro ATX Form Factor; 24.4cm x 21.5cm

I/O Controller : iTE® I/O Controller Chip

CPU

LGA1851 socket: Support for Intel® Core™ Ultra Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Memory

Support for DDR5 6400/5600 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Wireless Communication module

Realtek® Wi-Fi 6 RTL8851BE

- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 80MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Storage Interface

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

- 5 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

2 x addressable RGB Gen2 LED strip headers

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x Clear CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard/mouse port

1 x HDMI port (Note)

1 x DisplayPort (Note)

1 x USB 3.2 Gen 1 port

5 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

(Note) Actual support may vary by CPU.

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

Support for Q-Flash

Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit
