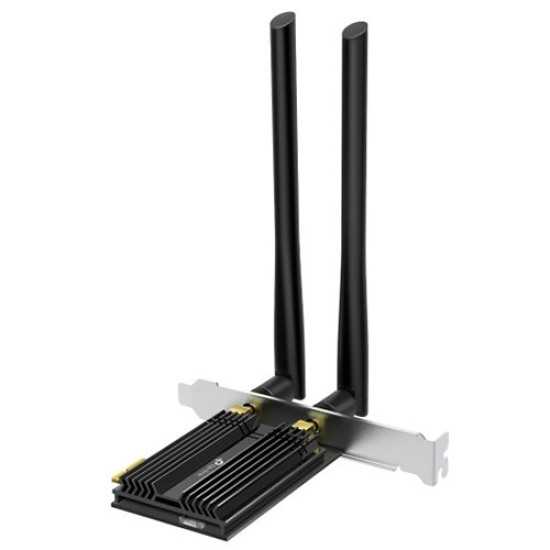

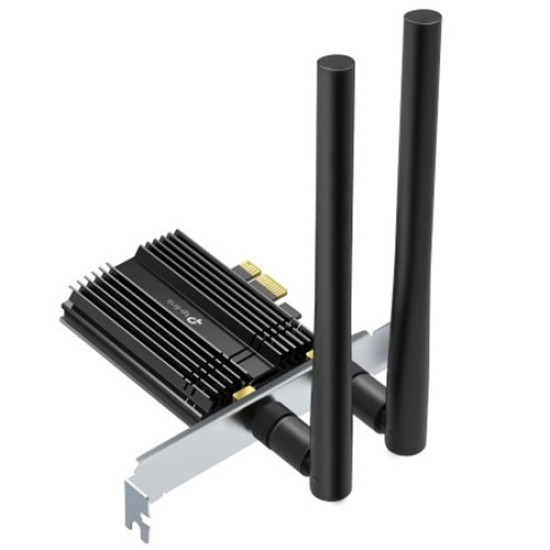

TP Link Archer TX50E AX3000 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter

AX3000 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter

Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

Smoother Experience— lower latency ensures ultra-responsive gaming, uninterrupted video chatting, and seamless live streaming

Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability

Bluetooth 5.3—The latest Bluetooth technology achieves Faster Speed and Broader Coverage than the previous version

Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety

Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments

Backward Compatibility – Full support for 802.11ac/a/b/g/n standards

Deep-Dive into VR

Wi-Fi 6 comes with 1024-QAM and 160 MHz bandwidth, for powerful, continuous Wi-Fi.‡ Bandwidth-intensive applications like VR demand high speeds, which Wi-Fi 6 delivers—3× faster than Wi-Fi 5.§ Just insert Archer TX50E into your PC for fully immersive VR experiences.

High Performance for High Demands

The very latest Wi-Fi standard, Wi-Fi 6, provides extreme speed, ultra-low latency, and uninterrupted connectivity so you enjoy faster downloads, smoother streaming, and more immersive gaming.

More Robust Bluetooth 5.3

Inheriting the high speed and broad coverage of last-gen Bluetooth, the latest Bluetooth 5.3 has also been enhanced in terms of reliability and security, which ensures more robust coordination with your game controllers, headphones, keyboards, etc.

High-Gain Antennas for Broader Coverage

Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.

MU-MIMO

Boosts the throughput and efficiency of the entire network, providing multiple data streams simultaneously.

OFDMA

Experience seamless connectivity, delivering optimized bandwidth and reduced latency for superior multi-device performance.

Ingenious Detail Make a Perfect Whole

Built with a specialized heatsink crafted to improve stability and reliability even in hot environments. Careful attention to every detail, such as gold plating on every contactor to resist oxidation, delivers a superior network experience.

Advanced Security

The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.

Easy Setup

The utility on the provided CD makes software installation remarkably simple

Standard and Low-Profile Brackets

Both a standard and low-profile bracket, for mini tower computer cases, are provided

Operating System

Supports Windows 11/10 (64-bit) only

Specifications

HARDWARE FEATURES

Dimensions ( W x D x H )

3.7 x 4.8 x 0.8 in

(95.2 x 120.8 x 21.5 mm)

Antenna Two High-Gain Dual Band Antennas

Bluetooth Features

Standards and Protocols

Bluetooth 5.3, Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0

Interface : F_USB 2.0

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/g/b 2.4 GHz

Bluetooth 5.3/5.2/5.0/4.2/4.0

WLAN Signal Rate

5 GHz

11ax: Up to 2402 Mbps(dynamic)

11ac: Up to 1733 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11a: Up to 54 Mbps(dynamic)

2.4 GHz

11ax: Up to 574 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11g: Up to 54 Mbps(dynamic)

11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity

5 GHz :

11ax HT160：-56.25dBm

11ax HT80: -59dBm

11ax HT40: -62.25dBm

11ax HT20: -65dBm

11ac HT160：-62dBm

11ac HT80: -65.5dBm

11ac HT40: -69.75dBm

11ac HT20: -73.75dBm

11n HT40: -74.5dBm

11n HT20: -77.5dBm

11a 54Mbps: -77.75dBm

11a 6Mbps: -94.5dBm

2.4GHz :

11ax HT40: -60.75dBm

11ax HT20: -63.75dBm

11n HT40: -73dBm

11n HT20: -76.25dBm

11g 54Mbps: -76.5dBm

11b 11Mbps: -89dBm

WLAN Transmit Power

5 GHz: 28dBm(FCC) / 23dBm(CE) (EIRP),

2.4 GHz : 24dBm(FCC) / 20dBm(CE) (EIRP)

WLAN Modes : Infrastructure mode

Wireless Security : WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

OTHERS

Certification : CE, FCC, RoHS

Package Content

Archer TX50E

Two High-Gain Antennas

Low-Profile Bracket

Standard Bluetooth Header Cable

Quick Installation Guide

Resource CD

System Requirements : Windows 11/10(64-bit) only

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
