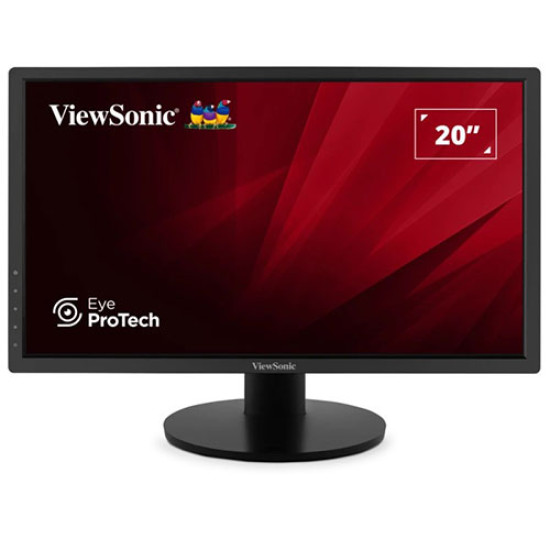

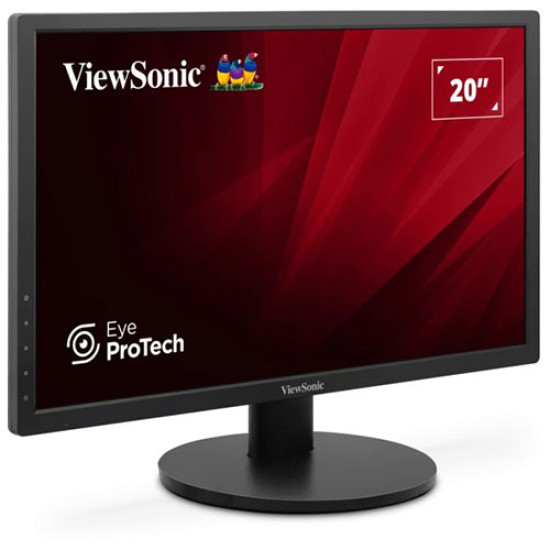

ViewSonic 20 inch Home and Office Monitor (VA2025-H)

20” Home and Office Monitor

WSXGA 1600 X 900 resolution

HDMI and VGA inputs for flexible connectivity

Eye ProTech for comfortable viewing

Eco Mode for low energy consumption

Various ViewMode color rendering options

OVERVIEW

The ViewSonic VA2025-H is a 20” 1600 x 900 resolution monitor featuring HDMI and VGA inputs for business and home use. The optimal screen performance and comfortable viewing is delivered through Eye ProTech technology, and various ViewMode presets. Simply expand your workspace and experience truly seamless visual experience on just one screen with a VESA-compatible mount at a low power consumption.

Legacy Application-friendly

The VA2025-H boasts a 1600 x 900 resolution, ensuring sharp text and brilliant HD image quality. With a 16:9 aspect ratio, the display is designed to accommodate all legacy and business-related applications.

React Instantly

Experience better performance and smooth pixel transitions with a fast 5ms (MPRT) response time. React faster and work with precision.

Connection Flexibility

HDMI and VGA inputs give you the freedom to connect your monitor to a wide range of devices.

Eye ProTech for Comfortable Viewing

Reduce your eye strain and maintain fresh-feeling eyes with ViewSonic Eye ProTech. The Flicker-Free technology eliminates screen flickering, while the Blue Light Filter minimizes harmful blue light from extended viewing periods, ensuring comfortable screen viewing.

Color Rendering Options

ViewSonic’s ViewMode offers “Movie”, “Web”, “Text”, “Mono” and three types of game presets: FPS, RTS, and MOBA. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized, satisfactory viewing experience for different uses.

Low Energy Consumption

Designed with energy efficiency in mind, ViewSonic’s Eco Mode successfully reduces carbon footprint and significantly lowers office overhead costs.

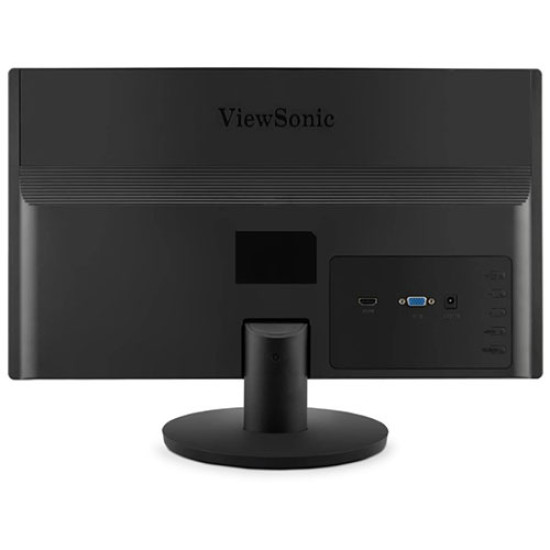

Dimension & I/O Ports

Conveniently mount the monitor to your preference by utilizing the 75mm x 75mm VESA-compatible mount design.

Specifications

Display

Display Size (in.): 20

Viewable Area (in.): 19.5

Panel Type: TN Technology

Resolution: 1600 x 900

Resolution Type: WSXGA (Wide Super XGA)

Static Contrast Ratio: 600:1 (typ)

Dynamic Contrast Ratio: 50M:1

Light Source: LED

Brightness: 250 cd/m² (typ)

Colors: 16.7M

Color Space Support: 8 bit (6 bit + FRC)

Aspect Ratio: 16:9

Response Time (Typical GTG): 5ms

Viewing Angles: 90º horizontal, 65º vertical

Backlight Life (Hours): 30000 Hrs (Min)

Curvature: Flat

Refresh Rate (Hz): 60

Low Blue Light: Software solution

Flicker-Free: Yes

Color Gamut: NTSC: 72% size (Typ)

sRGB: 103% size (Typ)

Pixel Size: 0.27 mm (H) x 0.266 mm (V)

Surface Treatment: Anti-Glare, Hard Coating (3H)

Compatibility

PC Resolution (max): 1600x900

Mac® Resolution (max): 1600x900

PC Operating System: Windows 10/11 certified; macOS tested

Mac® Resolution (min): 1600x900

Connector

VGA: 1

HDMI 1.4: 1

Power in: DC Socket (Center Positive)

Power

Eco Mode (Conserve): 11W

Eco Mode (optimized): 14W

Consumption (typical): 17W

Consumption (max): 22W

Voltage: AC 100-240V

Stand-by: 0.3W

Power Supply: External Power Adaptor

Controls

Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)

On Screen Display: Input Select, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Operating Conditions

Temperature: 32°F to 104°F (0°C to 40°C)

Humidity (non-condensing): 20% to 90%

Wall Mount : VESA Compatible: 75 x 75 mm

Input Signal

Frequency Horizontal: 24 ~ 83KHz

Frequency Vertical: 50 ~ 76Hz

Video Input

Digital Sync: TMDS - HDMI (v1.4)

Analog Sync: Separate - RGB Analog

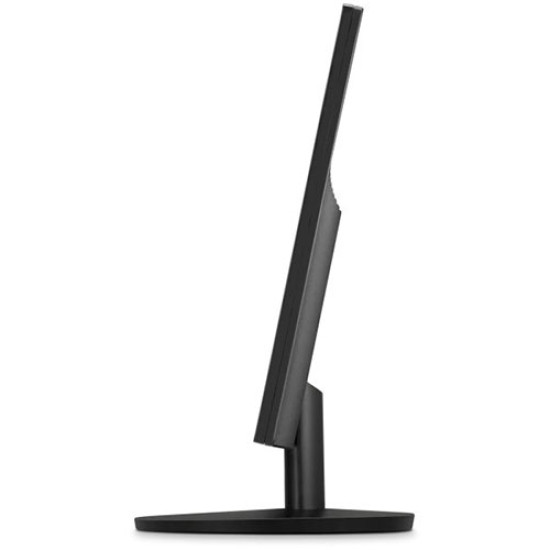

Ergonomics : Tilt (Forward/Back): -4º / 14º

Weight (imperial)

Net (lbs): 3.5

Net Without Stand (lbs): 3.1

Gross (lbs): 5.3

Weight (metric)

Net (kg): 1.6

Net Without Stand (kg): 1.4

Gross (kg): 2.4

Dimensions (imperial) (wxhxd)

Packaging (in.): 20.5 x 13.2 x 3.9

Physical (in.): 18.24 x 12.93 x 7.66

Physical Without Stand (in.): 18.24 x 10.6 x 1

Dimensions (metric) (wxhxd)

Packaging (mm): 520 x 335 x 100

Physical (mm): 463.22 x 328.46 x 194.65

Physical Without Stand (mm): 463.22 x 269.3 x 25.3
