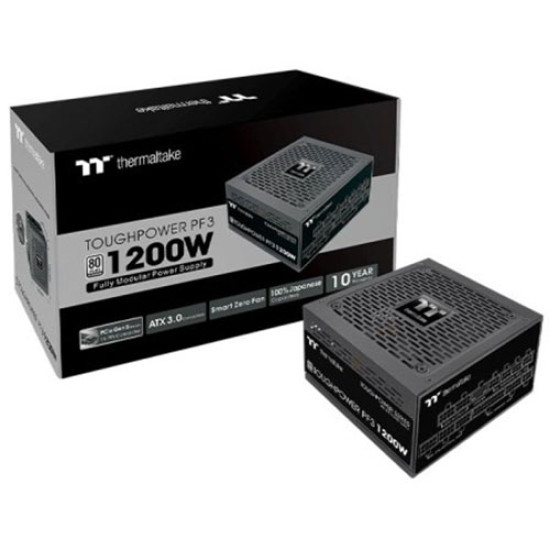

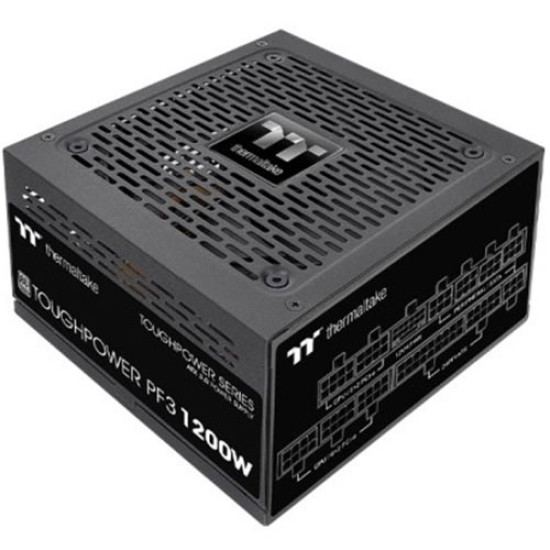

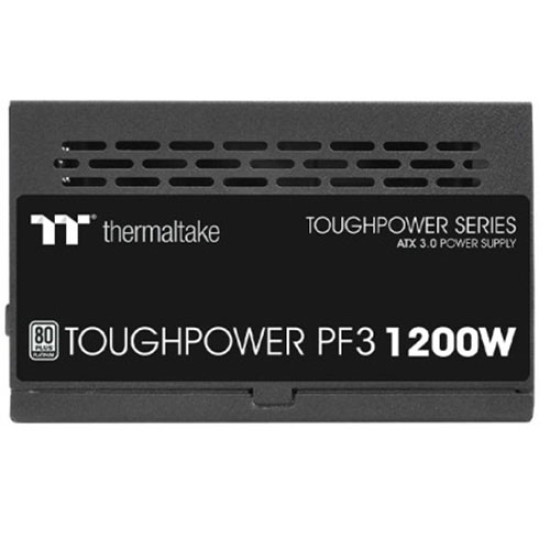

Thermaltake Toughpower PF3 1200W Platinum TT Premium Edition (PS-TPD-1200FNFAPD-3)

Toughpower PF3 1200W Platinum - TT Premium Edition

Toughpower PF3 series is 80 PLUS Platinum certified and fully compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5 connector, it can power up next-gen technology with one new 12VHPWR cable.

Power Up Next Generation Hardware

To fully support next-gen hardware, Toughpower PF3 Platinum Series (750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The PF3 Platinum series delivers 80 PLUS Platinum efficiency, it also offers the highest stability, durability, and reliability.

Fully Compatible with Intel ATX 3.0 Standards

Toughpower PF3 Platinum series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.

PCIe Gen 5.0 Ready

Toughpower PF3 series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the PF3 1200W can deliver up to 600W for PCIe 5.0 graphics cards.

Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards increase, so has their demand for power. The PF3 Platinum series is designed to support NVIDIA and AMD graphics cards, and ready to supply the graphics cards according to their different ways of connections.

80 PLUS Platinum Certified

80 Plus Platinum certification means the Toughpower PF3 converts power efficiently, resulting in lower power loss and heat buildup inside the power supply.

Compact Design with 140mm Depth

The Toughower PF3 Plantinum Series is designed to be compact with size of 140mm (D) x 86mm (H) x 150mm (W) which provides ample space for cable management.

Be Smart, Stay Quiet

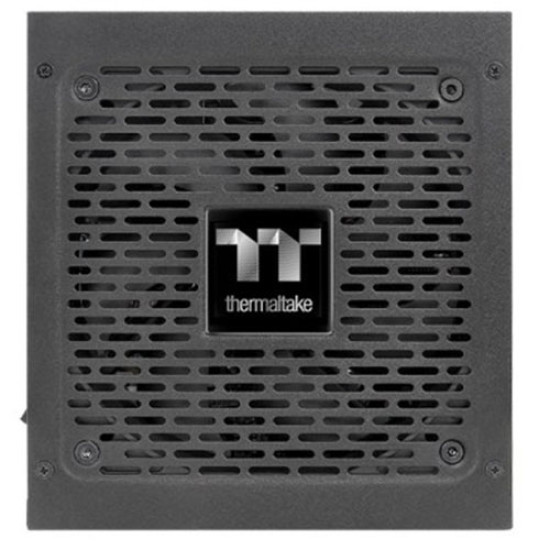

Featuring a 120mm fluid dynamic bearing fan to create the perfect balance between silence and superior cooling. Furthermore, the Smart Zero Fan will adjust the fan speed and minimizes undesired noise.

30mV Low Ripple Noise Design

Top-end build quality with low ripple noise. All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

More Stable than Ever

100% high quality Japanese 105°C/221°F electrolytic capacitors provides great durability as well as offering the highest stability, while remaining reliable.

Intel C6/C7 States Ready

The PF3 series has been optimized to work with all generations of Intel processors to achieve maximum energy saving.

Cybenetics – Efficiency Level Certification – Platinum

Toughpower PF3 1200W is certified to CYBENETICS PLATINUM in 115V and 230V input in terms of efficiency level. The overall efficiency rating is defined as ≥89% to ＜91% of 115V input and 230V input. There are six ETA certifications, covering an efficiency range from 82%. Besides the overall efficiency of a PSU, ETA also takes into account its overall Power Factor readings along with the efficiency of the 5VSB rail and the power that the unit consumes in standby (also called phantom power).

Cybenetics – Noise Level Cerfification – Standard

Toughpower PF3 1200W is certified to CYBENETICS Standard in 115V and 230V in terms of the noise level. There are seven noise level certifications, covering from dead silent PSUs (＜15db[A]) to quiet noisy ones(>40 db[A]). We use a solid methodology and states of the art equipment to measure the noise that a PSU outputs throughout its entire operation range, from almost zero noise output to full load.

Specifications

P/N : PS-TPD-1200FNFAPD-3

watts : 1200W

Max. Output Capacity : 1200W

Color : Black

Dimension ( W / H / D ) : 140mm(D)x86mm(H)x150mm(W)

PFC (Power Factor Correction) : Active PFC

Power Good Signal : 100-250 msec

Hold Up Time : > 17msec

Input Current : 15A

Input Frequency Range : 50 - 60Hz

Input Voltage : 100 - 240Vac

OPERATING TEMPERATURE : 0°C to + 40°C

Operating Humidity : 5% to 85%,non-condensing

Storage Temperature : -40°C to + 70°C

Storage Humidity : 5% to 95%, non-condensing

COOLING SYSTEM : 12cm FDB Fan

Efficiency : Meet 80 PLUS® Platinum at 115Vac input.

MTBF : 100,000 hrs minimum

Safety Approval : CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI

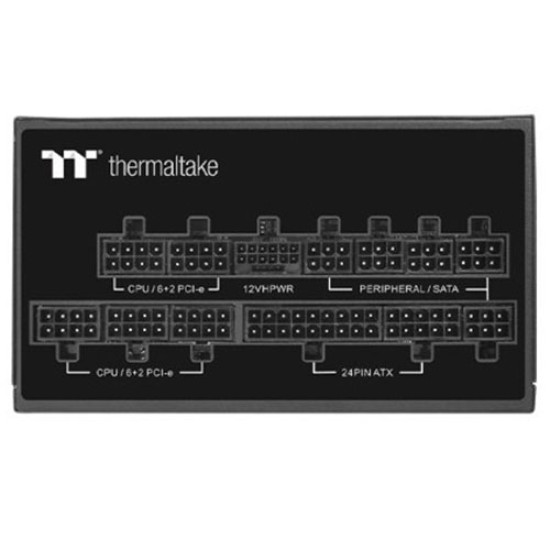

PCI-E 6+2pin :5

PCIe 12+4pin : 1
