Thermaltake Smart BX1 650W (DC to DC Version) Power Supply (PS-SPD-0650NNFABD-4)

Smart BX1 (DC to DC Version)

Built to deliver 80 PLUS with 85% power efficiency, the Smart BX1 series is available in 550W - 750W models. With an ample 5-year warranty, the Smart BX1 is able to satisfy the market, where value-oriented users are looking for a new power supply with reliable performance.

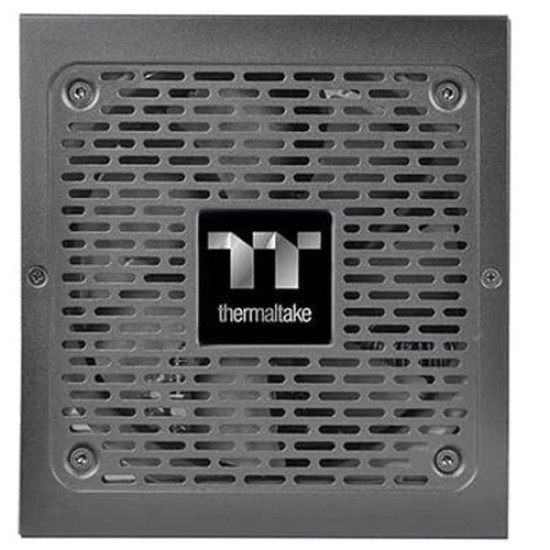

Ultra Quiet 120mm Fan

Equipped with 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation.

Multiple Connectors

The cables used for Smart BX1 Series are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage.

High-Quality 105°C/221°F main capacitor.

Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail & DC to DC Design

Smart BX1 Series is equipped with powerful +12V rails, superior performance under all types of system loading. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.

Built-in Industrial Grade Protection

To protect the hardware, Smart BX1 series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

80 PLUS Bronze Certified and Intel C6/C7 States Ready

Smart BX1 Series saves energy through its high energy efficiency of up to 85% and is 80 PLUS® Bronze certified. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Specifications

P/N : PS-SPD-0650NNFABD-4

watts : 650W

Dimension ( W / H / D ) : 150mm(W)x86mm(H)x140mm(D)

PFC (Power Factor Correction) : Active PFC

Power Good Signal : 100-150 msec

Hold Up Time : > 17msec at 80% load

Input Current : 12A Max.

Input Frequency Range : 50Hz - 60Hz

Input Voltage : 100-240Vac

OPERATING TEMPERATURE : 5°C to + 40°C

Operating Humidity : 20% to 85%,non-condensing

Storage Temperature : -40°C to + 55°C

Storage Humidity : 10% to 95%, non-condensing

COOLING SYSTEM : 120mm Hydraulic Bearing Fan

Efficiency : Meet 80 PLUS® Bronze at 115Vac input.

MTBF : 100,000 hrs minimum

Safety Approval : CE/UKCA/LVD/FCC/ICES/TUV/CB/cTUVus/BSMI

PCI-E 6+2pin : 2

PROTECTION : OCP/OVP/OPP/OTP/SCP/UVP
