Thermaltake Smart BX3 650 Watt ATX 3.1 PSU (PS-SPD-0650NNFABD-3)

Unmatched Reliability ATX 3.1 Power Supply

The Smart BX3 series is designed to meet ATX 3.1 standards, offering 550W, 650W, and 750W options. It's perfect for budget-conscious users seeking an efficient and reliable entry-level power supply, backed by a solid 5-year warranty.

ATX 3.1 Ready

Smart BX3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

Be Smart, Stay Quiet

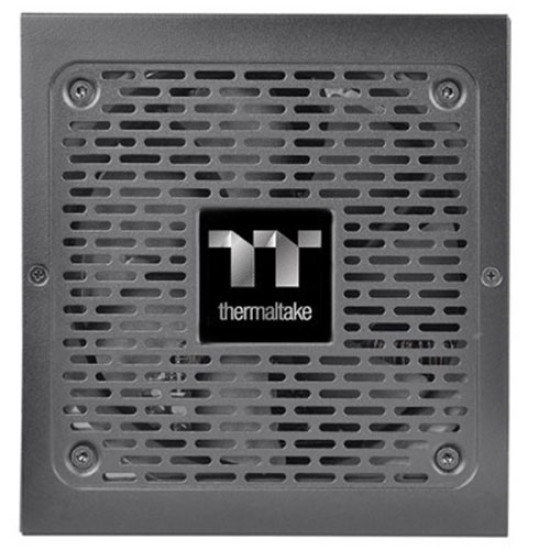

Equipped with a 120mm fluid bearing fan for superior airflow. Additionally, the built-in Smart Zero Fan spins only when the load reaches a certain percentage to minimize unwanted noise.

High Quality 105°C/221°F Main Capacitor

High quality main capacitor greatly improves the power supplies durability and ensures the Smart BX3 series is stable and reliable.

High Amperage Single +12V Rail & DC to DC Design

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.

Built-in Industrial Grade Protection

To protect the hardware, Smart BX3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

80 PLUS Bronze-Certified and Intel C6/C7 States Ready

Smart BX3 Bronze series saves energy through its high energy efficiency up to 85% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Specifications

P/N : PS-SPD-0650NNFABD-3

Max. Output Capacity : 650W

Color : Black

Dimension ( W / H / D ) : 150mm(W)x86mm(H)x140mm(D)

PFC (Power Factor Correction) : Active PFC

Power Good Signal : 100-150 msec

Hold Up Time : > 17msec at 80% load

Input Current : 15A-6A

Input Frequency Range : 50Hz/60Hz

Input Voltage : 100-240V～

OPERATING TEMPERATURE : 5°C to + 45°C

Operating Humidity : 20% to 85%,non-condensing

Storage Temperature : -40°C to + 55°C

Storage Humidity : 10% to 95%, non-condensing

COOLING SYSTEM : 12cm FDB Fan

Efficiency : Meet 80 PLUS® Bronze at 115Vac input.

MTBF : 100,000 hrs minimum

Safety Approval : CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC

PCI-E 6+2pin : 2

Smart Zero Fan

Fan will not spin until the load exceeds 20%

No physical fan switch

PROTECTION : OCP/OVP/UVP/OPP/OTP/SCP
