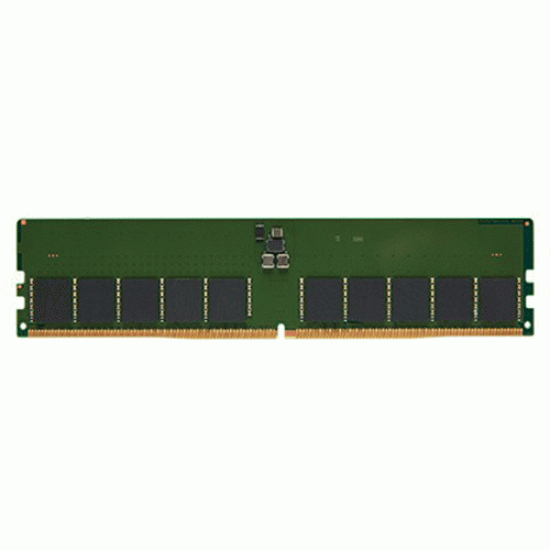

Kingston 32GB DDR5-5600 CL46 SDRAM (KSM56E46BD8KM-32HA)

Kingston's KSM56E46BD8KM-32HA is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Specification :

Brand : Kingston (Server Premier series)

Capacity : 32GB

Type : DDR5 ECC SDRAM (Unbuffered DIMM)

Speed : 5600MT/s (PC5-5600)

Latency : CL46 (JEDEC timings 46-45-45)

Rank : 2Rx8 (Dual Rank)

Voltage : 1.1V (VDD/VDDQ)

Manufacturer : Uses Hynix A-Die DRAM

Features : On-Die ECC, Sideband access (I3C/I2C), Post-Package Repair, RoHS Compliant.
