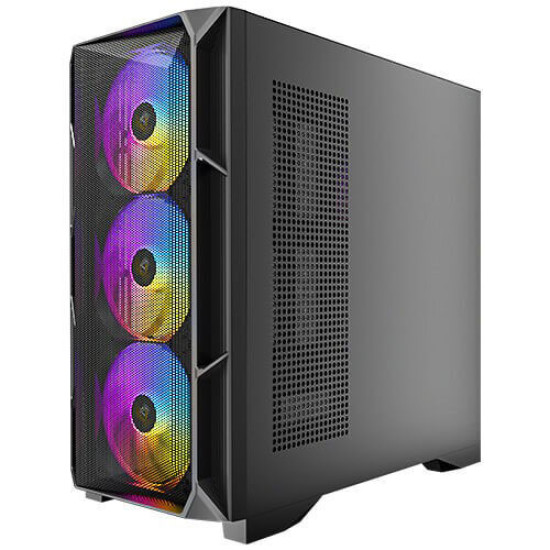

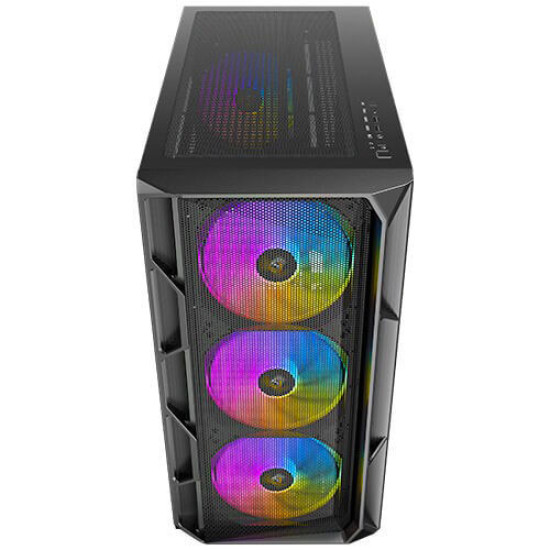

Antec AX1000 ARGB Lite Mid Tower Case

Sleek Geometric Design with Full-View Side

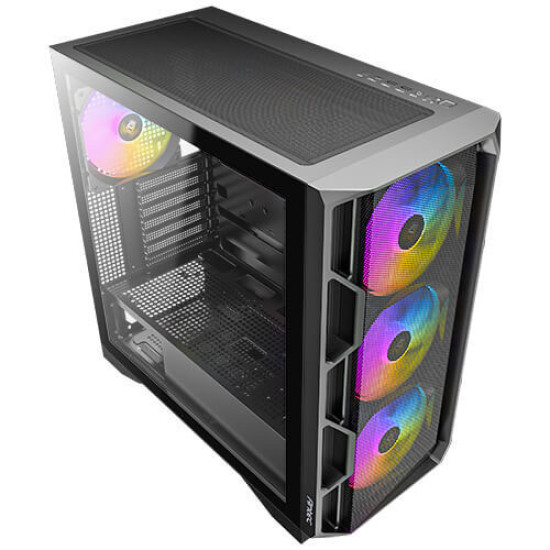

The AX1000 ARGB showcases a sleek geometric front panel paired with a full-view tempered glass side panel, allowing you to show off your gaming configurations without any obstacles.

All-Round Cooling with Massive Air Intake

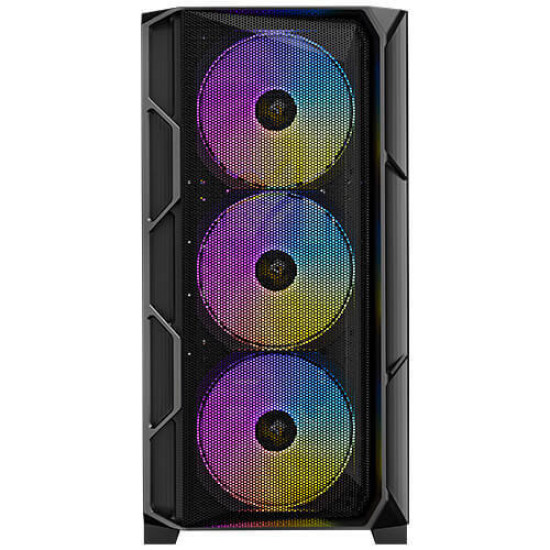

The high-airflow mesh front panel and bottom-up ventilation design maximize airflow to ensure optimal cooling for high-performance gaming setups.

Tool-Free Panels

The side panels feature pin designs that allow for easy assembly and disassembly, helping to prevent potential glass breakage.

Pre-Installed 4 x 140mm ARGB PWM Fans with Built-In Fan Controller

upport 360mm Water Cooler

Supports installation of a 360mm radiator on the top and at the front.

I/O Panel

Power, Reset , LED Control button, USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps)x 1, Mic/HD-AUDIO

Up to 9 Fans Simultaneously

Powerful Air Cooling Compatibility

Max. CPU Cooler Height: 185mm

Compatibility

Motherboard support : E-ATX, ATX, Micro-ATX , ITX

CPU cooler max height : ≤ 185 mm

GPU max length : ≤ 420mm

3.5" / 2.5" : 1/1

3.5" : 2

2.5" : 1

Power Supply max length : (Include cable) ≤ 240mm

Support Lengthy GPU

Max. GPU Length : ≤ 420mm

Dimensions

480 x 235 x 470mm (DWH)

Secificcation

main spec

Dimensions : 480 x 235 x 470mm

Form Factor : Mid tower

Materials : Steel + Plastic

Mainboard Support : E-ATX, ATX, Micro-ATX , ITX

Front Access & Controls : Power, Reset, LED Control button, USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps)x 1, Mic/HD-AUDIO

Side Panel : Tempered Glass Side Panel

Drive Bays

Expansion Slots : 7

3.5"/ 2.5" : 1 / 1

3.5" : 1

2.5" : 2

Fan Suppor

Front : 3 x 140 / 3 x 120mm

Top : 2 x 140 / 3 x 120mm

Power Supply Shroud : 2 x 140 / 2 x 120mm

Rear : 1 x 140 / 1 x 120mm

Included Fan(s) : 3 x 140mm ARGB PWM Fans at the front + 1 x 140mm ARGB PWM Fan at the rear + 6-port ARGB PWM fan controller

Radiator Support

Front : 120 / 140 / 240 / 280 / 360mm

Top : 120 / 140 / 240 / 280 / 360mm（Maximum RAM height: 52mm）

Rear : 120 / 140mm

Clearance

Max GPU Length : ≤420mm

Max CPU Cooler Height : ≤185mm

Max PSU Length : (Include cable)≤240mm

Miscellaneous

Dust Filter : Top / Right Hand Side / Bottom

Net Weight : 7.70 Kg

Gross Weight : 8.95 Kg
