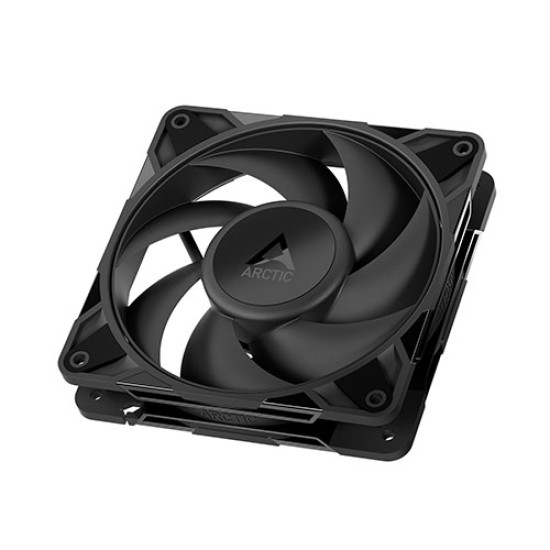

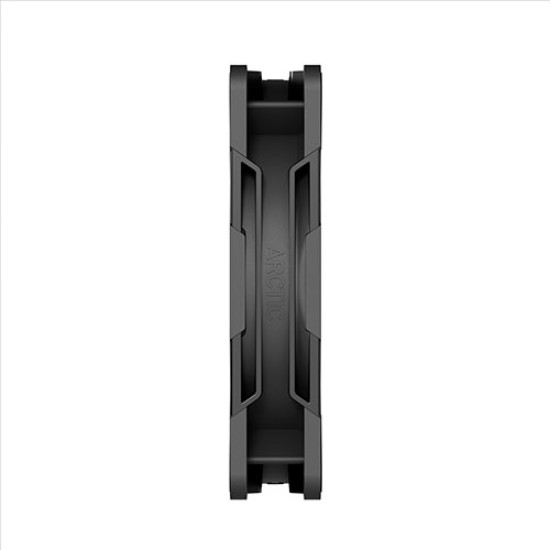

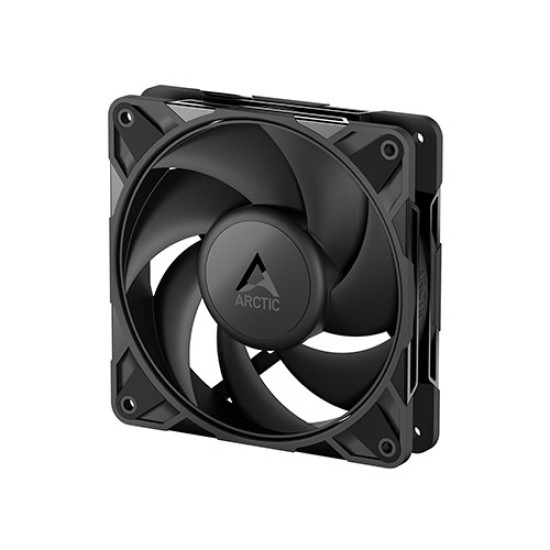

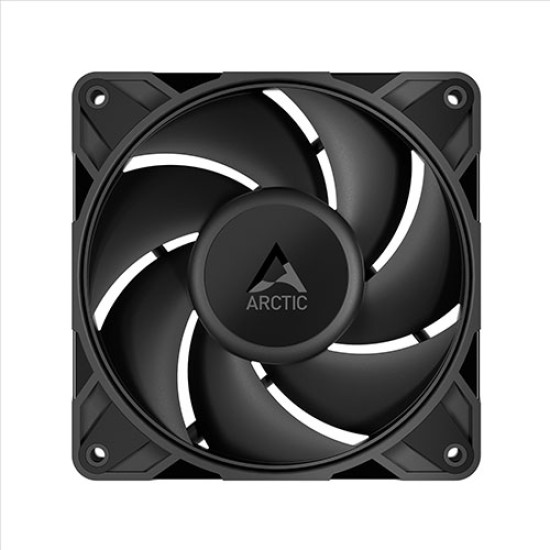

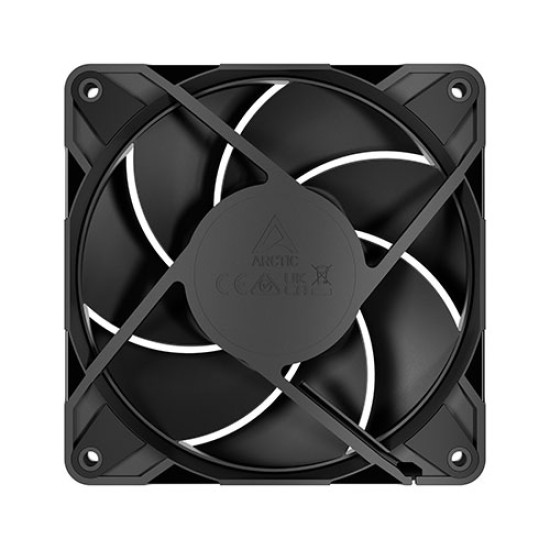

Arctic P12 Pro 120 mm PWM Cabinet Fan Single (ACFAN00305A)

Efficient Performance at High Air Resistance

Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

Maximum Performance, Redefined

Revised fan blade design for an optimal balance of performance and smooth operation.

Optimized Bearing-Shaft Design (FDB)

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

Automated Balancing

An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

More Power – Less Noise

The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

Specification

Operating Ambient Temperature : 0–40 °C

Dimensions : 120 (L) x 120 (W) x 25 (H) mm

Net Weight : 183 g

Fan Speed : 600–3000 rpm, PWM controlled

0 rpm below : 5 % PWM

Airflow : 77 cfm | 131 m³/h

Static Pressure : 6.9 mmH2O

Fan Bearing : Fluid Dynamic Bearing

Typical Voltage : 12 V DC

Start Up Voltage : 3.3 V DC

Current : 0.33 A

Cable Length : 400 mm

Connector : 4-Pin Fan Plug
