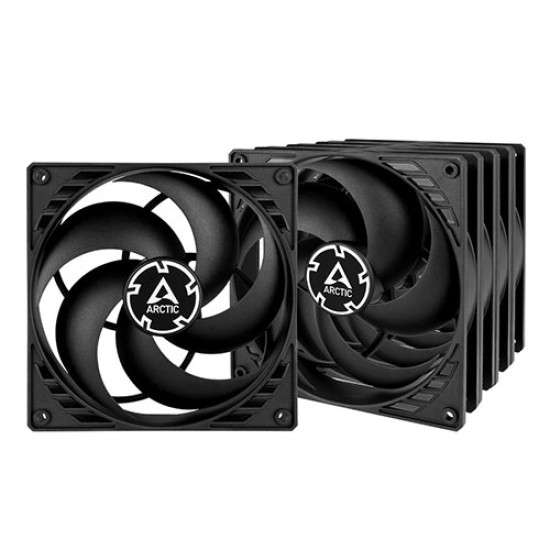

Arctic P14 140 mm Fan 5 Pieces (ACFAN00136A)

Optimised for Static Pressure

During the development of the new P14, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 is particularly suitable for use on heatsinks and radiators.

High-Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Two Way Installation

Push warm air out of the case

Pull cool air into your case

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It's a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the P14.

Specification

Fan Speed : 1700 rpm

Airflow : 72.8 cfm | 123.76 m³/h

Static Pressure : 2.40 mmH2O

Noise Level : 0.3 Sone

Fan Frame : Standard

Control Type : Fixed Speed

Connector : 3-Pin Connector

Fan Bearing : Fluid Dynamic Bearing

Operating Ambient Temperature : 0—40 °C

Typical Voltage : 12 V DC

Starting Voltage : 2.1 V

Current | Voltage : 0.15 A | 12 V DC

Cable Length : 400 mm

Length : 140 mm

Width : 140 mm

Height : 27 mm

Weight : 191 g
