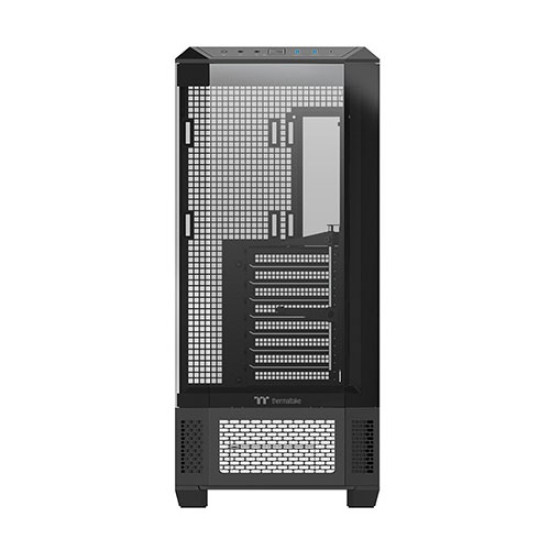

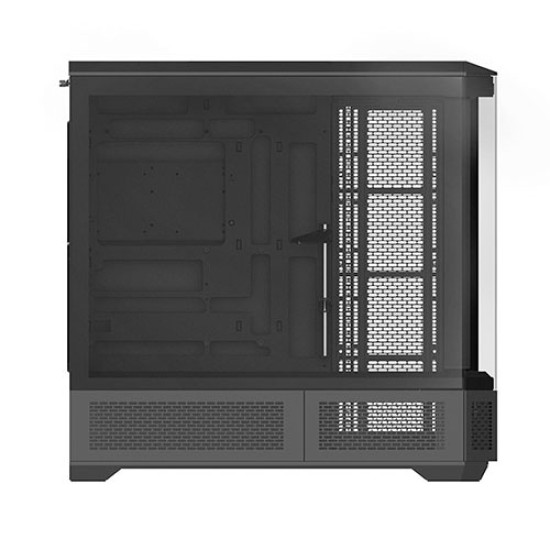

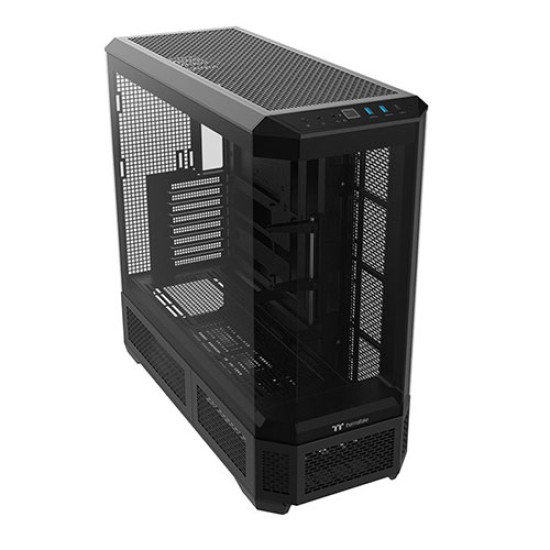

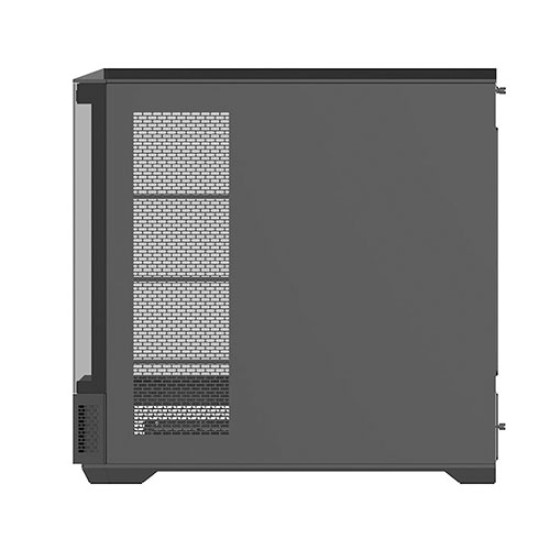

Thermaltake View 600 TG Full Tower Chassis (CA-11H-00F1WN-00)

Four Tempered Glass Panels for Maximum Visibility

The View 600 TG Full Tower Chassis features a distinctive shape and enhanced visibility with four 4mm tempered glass panels on the front and left, allowing users to showcase their system.

Compatible with Hidden-Connector Motherboards

Designed for next-gen builds, the View 600 TG Full Tower Chassis supports E-ATX motherboards, including standard and hidden-connector ATX/Micro-ATX models from ASUS, MSI, and GIGABYTE.

Optimized Radiator Support

The View 600 TG offers excellent cooling flexibility, supporting up to 420mm or 360mm radiators on both the top and motherboard side.

Exceptional Fan Support

Designed for high-performance cooling, the View 600 TG Full Tower Chassis supports up to ten 120mm or 140mm fans, giving users maximum airflow customization to their system.

Display It Your Way

The rotatable PCI-E slots, along with an optional riser cable (sold separately), support both horizontal and vertical GPU mounting configurations

GPU Holder

The View 600 TG series chassis features a built-in graphics card holder for added support to prevent sagging.

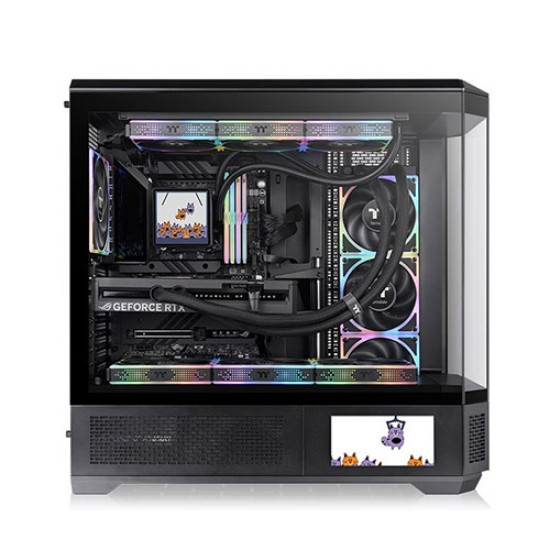

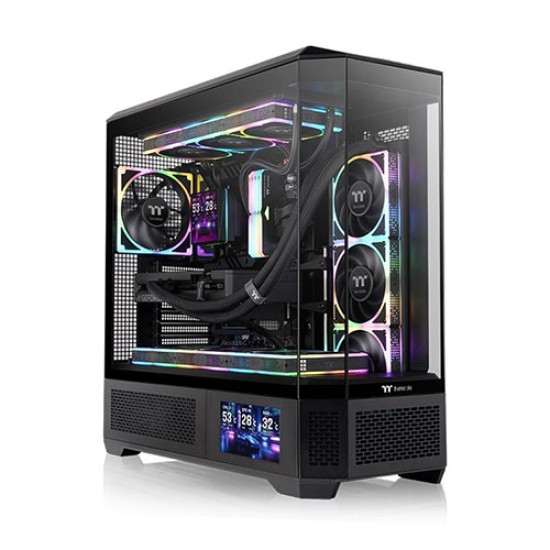

Visually Pleasing, Totally Interactive

Maximize your View 600 TG’s visual effects by upgrading it with our LCD Panel Kit.

The 6” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus software.

Personalize Your LCD Display

Through the latest TT RGB Plus, the 6‘’ LCD display presents real-time information and plays JPG and GIF files with at a 1480*720 resolution. It comes with six default background styles, and users can upload up to 20 custom images. Additionally, the display can show time and weather information, enhancing both visual appeal and customization options for your build.

Unleash Limitless Creativity with AI Forge​

Take your LCD display customization to the next level with AI Forge, an innovative feature built into the TT RGB PLUS 3.0 software. Simply type a prompt, and the AI will instantly generate a stunning background that brings your imagination to life. You can save your creations directly in the software without any extra downloads or uploads, freely edit the design, overlay real-time system information, and fully express your own style.​

Air Intake and Exhaust

Thanks to its spacious interior, the View 600 TG Full Tower Chassis still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.

We've Tested Everything, So You Don’t Have To

At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The View 600 TG products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.

Massive Airflow & Incredible Performance

Thermal images taken during thermal testing. We can see that View 600 TG guarantees good cooling performance and a low internal temperature while using the highest quality components.

Storage Support

The drive plate and cage support flexible storage configurations, allowing installation of up to three 3.5'' HDDs and one 2.5'' SSD, or one 3.5'' HDD and three 2.5'' SSDs

Perfect Dust Protection

The View 600 TG Full Tower Chassis features dust filters on the top, bottom, and motherboard sides to protect the system.

Handy I/O Ports

Two USB 3.0, one USB 3.2 Gen 2 Type C, one reset button and HD Audio ports are placed on the top panel to grant direct access when needed.

Specification

Series : View

CASE TYPE : Full Tower

Dimension (H x W x D) : 560 x 249 x 584 mm(22.06 x 9.8 x 22.98 inch)

PANEL : 4mm Tempered Glass x 4

Color : Black

MATERIAL : SPCC

COOLING SYSTEM : N/A

Drive Bays : 3 x 3.5”+1 x 2.5” or 3 x 2.5” +1 x 3.5”

EXPANSION SLOTS : 8

MOTHERBOARDS : 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) , 12” x 13” (E-ATX)

Hidden-Connector Motherboard : 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O Port : USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU : Standard PS2 PSU (optional)

FAN SUPPORT

Top:

3 x 120mm

3 x 140mm

Right:

3 x 120mm

3 x 140mm

Rear:

1 x 120mm

1 x 140mm

Power cover:

3 x 120mm

3 x 140mm

RADIATOR SUPPORT

Top :

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

Right:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

Rear:

1 x 120mm

1 x 140mm

CLEARANCE

CPU cooler height limitation: 175mm

VGA length limitation: 480mm

PSU length limitation: 220mm
