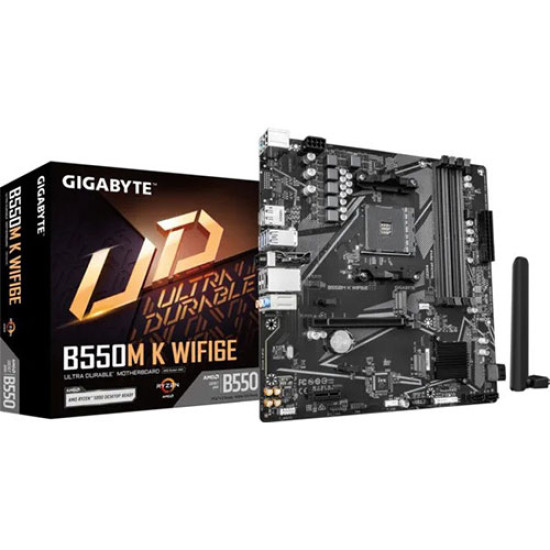

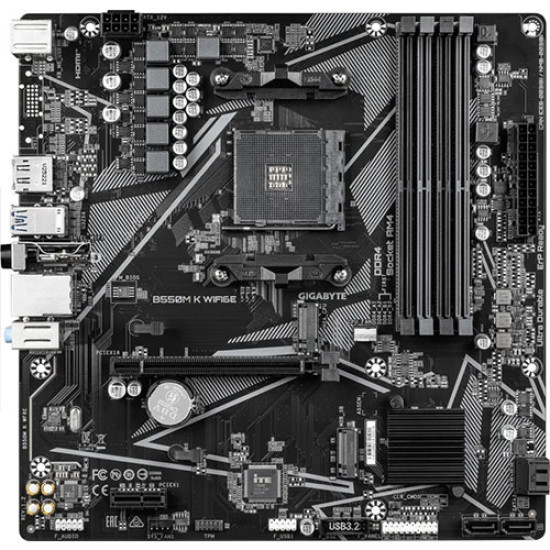

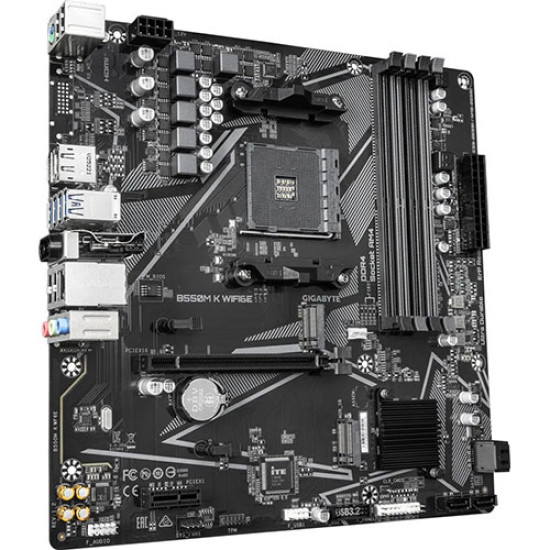

Gigabyte B550M K WIFI6E DDR4 AMD Motherboard

AMD B550 Ultra Durable Motherboard with WIFI EZ-Plug, Wi-Fi 6E, Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GbE LAN, Smart Fan 6 with FAN STOP

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors

Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs

Ultra Durable™ PCIe 4.0 Ready x16 Slot

Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors

High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality

Fast Networks: GbE LAN & Wi-Fi 6E 802.11ax

WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

Rear DisplayPort and HDMI for Multi-display Support

Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Anti-Sulfur Resistors Design

Dual NVMe PCIe 4.0*/3.0 M.2 Connectors

With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.

The Industry's Leading LAN Static-Electricity & Surge Protection

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

Smart Fan 6

Ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Humidity Protection Glass Fabric PCB

There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

Specification :

CPU :

AMD Socket AM4, support for:

AMD Ryzen™ 5000 G-Series Processors/

AMD Ryzen™ 5000 Series Processors/

AMD Ryzen™ 4000 G-Series Processors/

AMD Ryzen™ 3000 G-Series Processors/

AMD Ryzen™ 3000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset :

AMD B550

Memory :

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:

- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

(Graphics specifications may vary depending on CPU support.)

Maximum shared memory of 16 GB

Audio :

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN :

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Wireless Communication module

MediaTek Wi-Fi 6E MT7902

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

* Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

Expansion Slots :

1 x PCI Express x16 slot, integrated in the CPU:

- AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode

- AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

1 x PCI Express x1 slot, integrated in the Chipset:

- Supporting PCIe 3.0 x1 mode

Storage Interface :

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:

- AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs

- AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:

- Supporting PCIe 3.0 x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

- Support for RAID 0, RAID 1, and RAID 10

USB

CPU:

- 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors :

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

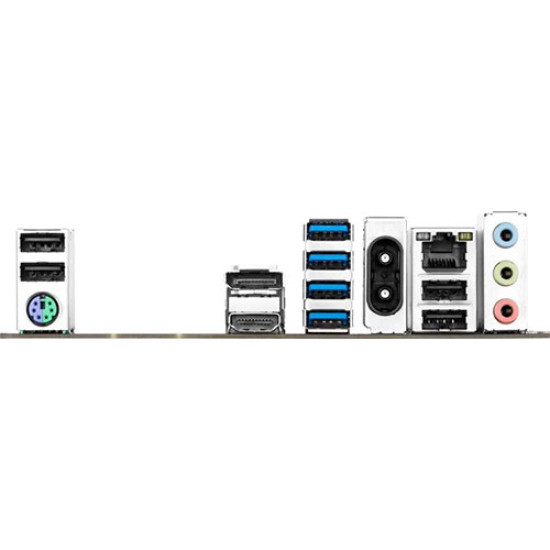

Back Panel Connectors :

1 x PS/2 keyboard/mouse port

1 x DisplayPort*

1 x HDMI port*

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

2 x antenna connectors (1T1R)

3 x audio jacks

* Actual support may vary by CPU.

I/O Controller : iTE® I/O Controller Chip

H/W Monitoring :

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS :

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features :

Support for APP Center

- @BIOS

- EasyTune

- Smart Backup

- System Information Viewer

Support for Q-Flash

Bundled Software : Norton® Internet Security (OEM version)

Operating System :

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor : Micro ATX Form Factor; 24.4cm x 24.4cm
