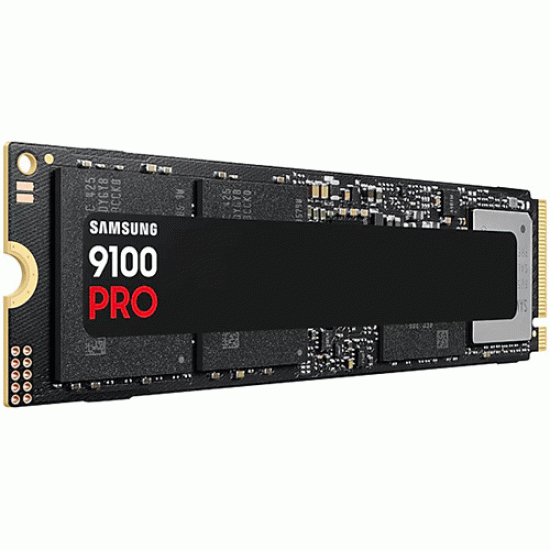

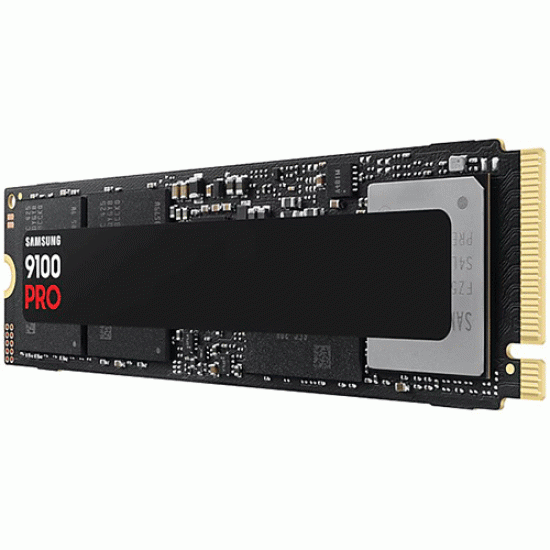

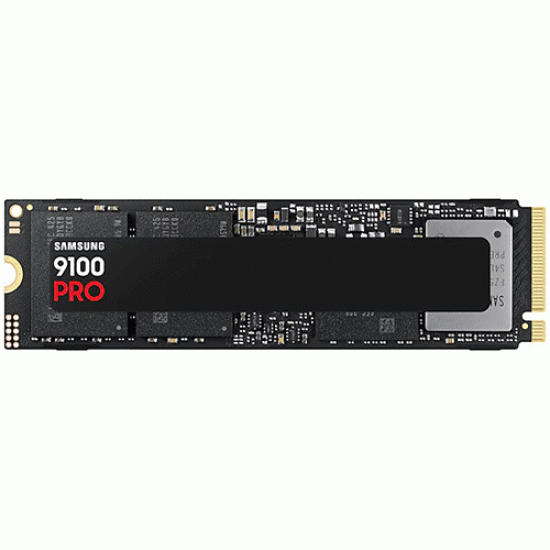

Samsung 9100 PRO 2TB NVMe Gen5 SSD (MZ-VAP2T0BW)

Samsung 9100 PRO 2TB NVMe Gen5 SSD

Breakthrough PCIe 5.0 performance resulting in sequential Read speed up to 14800 MB/s

Optimized for AI workloads, defy limits in work and play with an on board AI PC and AI content generation, fuelled by 9100 PRO with exhilirating random read/write speeds

Breeze through video editing, 3D art & long streaming session with latest PCIe5.0 interfaces and expansive capacity up to 8TB

Every task, powerfully parallel

Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

Exceptional everywhere

Elevate your competitive edge. Breeze through video editing, 3D art, and even long streaming sessions with the latest PCIe® 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on any device, and choose the storage you need with expansive capacity up to 8TB.

Extraordinary thermal efficiency

Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.

Samsung Magician software

Make your SSD work like magic. Samsung Magician software's optimization tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Bringing innovations to life

For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

Specification

Client PCs, Game Consoles

Interface : PCIe® 5.0 x4, NVMe™ 2.0

Dimension (WxHxD) : Max 8.01 cm x Max 2.21 cm x Max 0.23 cm

Product Weight : Max 9.0g Weight

Performanc : Up to 14,700 MB/s * Performance may vary based on system hardware & configuration

Sequential Writ : Up to 13,400 MB/s * Performance may vary based on system hardware & configuration

General Feature

Application : Client PCs, Game Consoles

Capacity : 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor : M.2 (2280)

Interfac : PCIe® 5.0 x4, NVMe™ 2.0

Dimension (WxHxD : Max 8.01 cm x Max 2.21 cm x Max 0.23 cm

Product Weigh : Max 9.0g Weight

Storage Memory : Samsung V-NAND TLC

Controller : Samsung in-house Controller

Cache Memor : Samsung 2GB Low Power DDR4X SDRAM

Performance

Sequential Rea : Up to 14,700 MB/s * Performance may vary based on system hardware & configuration

Sequential Write : Up to 13,400 MB/s * Performance may vary based on system hardware & configuration

Random Read : Up to 1,850,000 IOPS * Performance may vary based on system hardware & configuration

Random Writ : Up to 2,600,000 IOPS * Performance may vary based on system hardware & configuration

Environment

Average Power Consumption (system level : Average: Read 8.1 W / Write 7.9 W* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle) : Typical 4.8 mW * Actual power consumption may vary depending on system hardware & configuration

Power Consumption (Device Sleep : Typical 4 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltag : 3.3 V ± 5 % Allowable voltage

Reliability (MTBF) : 1.5 Million Hours Reliability (MTBF)

Operating Temperatur : 0 - 70 ℃ Operating Temperature

 Shoc : 1,500 G & 0.5 ms (Half sine)

Accessories

Installation Kit : Not Available

Software

Management SW : Magician Software for SSD management

Warranty

5-year Limited Warranty or 1,200TBW Limited Warranty
