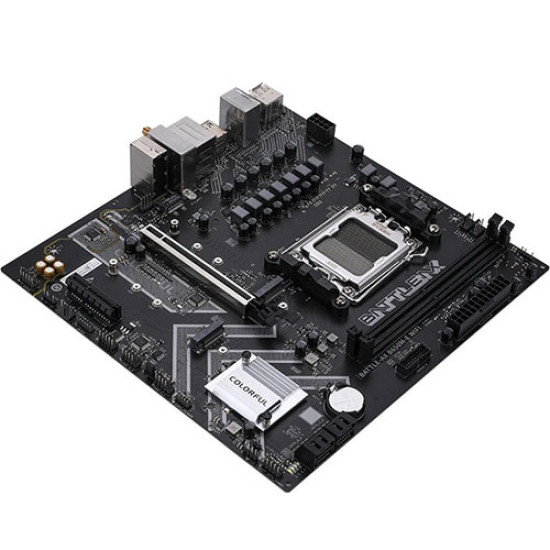

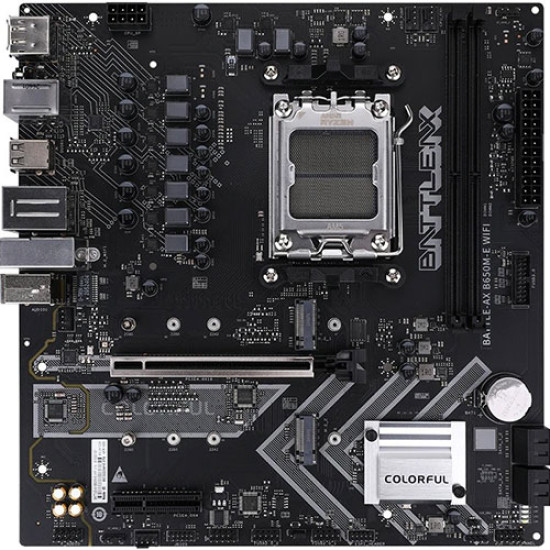

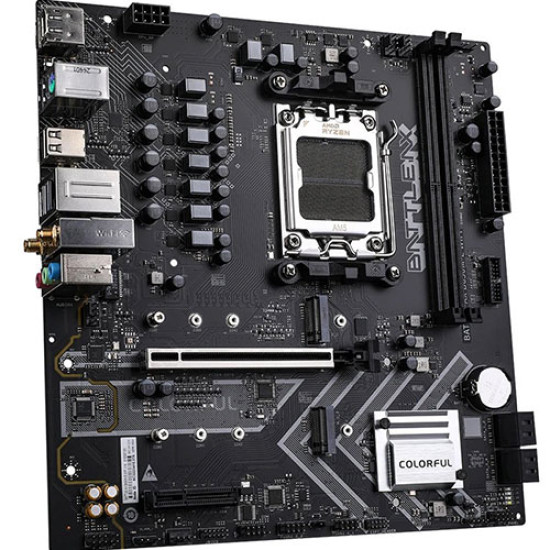

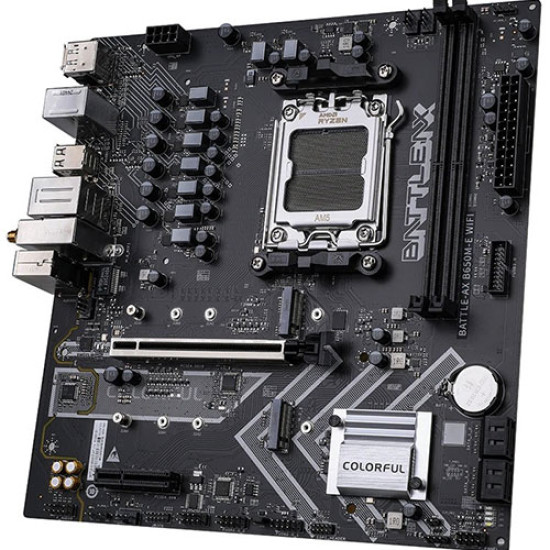

Colorful BATTLE-AX B650M-E WIFI V14 DDR5 AMD Motherboard (BA-B650M-E-WF-V14)

Features

Provide 2 M.2 SSD slots

Equipped with gigabit wired network card and AX200 WiFi 6 wireless network card, supporting Bluetooth 5.2

Support iGame Center lighting effect control software, which can synchronously adjust the lighting effects of heat sinks, cooling fans, and memory

I/O backplane supports one click BIOS upgrade function

Six major protective technologies for more stable product operation

Strict testing of 200 processes ensures quality assurance

PCB atomization process fully upgraded

Specifications

Model : BATTLE-AX B650M-E WIFI V14

Product Series : BATTLE-AX series

Chipset : AMD B650

Processor

Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard

(*Please visit the Colorful official website www.colorful.cn to check the latest processor support list)

Memory

2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory)

- Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory

- Support Extreme Memory Profile (XMP) memory technology

- Support EXtended Profiles for Overclocking (EXPO) memory technology

- Supports dual channel memory technology

(* Please visit www.colorful.cn for the latest memory compatibility list)

SATA Ports

2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, supporting the creation of RAID 0, RAID 1, and RAID 10 disk arrays using SATA or M.2 NVMe hard drive devices

- M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel)

- M.2_2 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel)

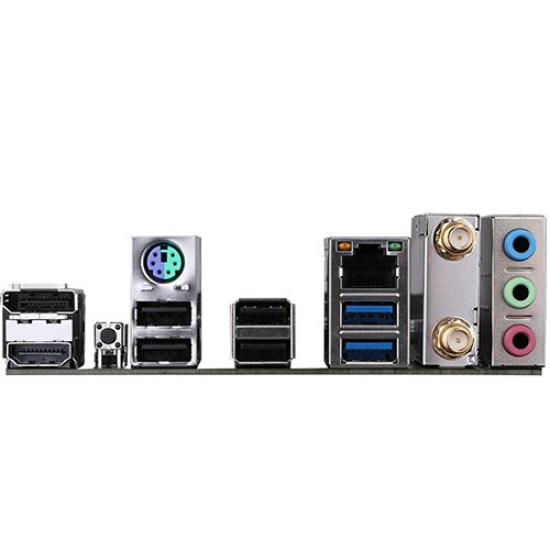

Board I/O

-4×USB 2.0 interfaces

-2×USB 3.2 Gen 1 5Gbps Type-A interfaces

-1×DP 1.2 interface, supporting up to 4K 60Hz resolution

-1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution

-1×PS/2 interface

-1×Gigabit network interface

-2×Wi Fi 6 antenna interfaces

-1×BIOS update button

-3×Audio interfaces (audio input/output/microphone)

On board :

-2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces

-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 5Gbps Type-A interfaces

-1×CPU fan pin

-2×System fan pins

-1×Water cooling pump pin

-2×5V 3-pin ARGB pins

-1×Front audio pin

-1×Front panel pin

-1×COM port pin

-1×Speaker pin

-1×Clear CMOS jumper

-1×BIOS burner pin

-1×POST card pin

Expansion Slots : 1 PCIe 4.0 x16 slot

1 PCIe 4.0 x4 slot

BIOS : 256M UEFI, supports multiple languages

Power Management

Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

Hardware Monitor

CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

LAN : RTL8111K Gigabit Ethernet Card, AX200 WiFi 6 Wireless Network Card, Bluetooth 5.2

Audio : Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

Configuration : MATX 244 x 235 mm
