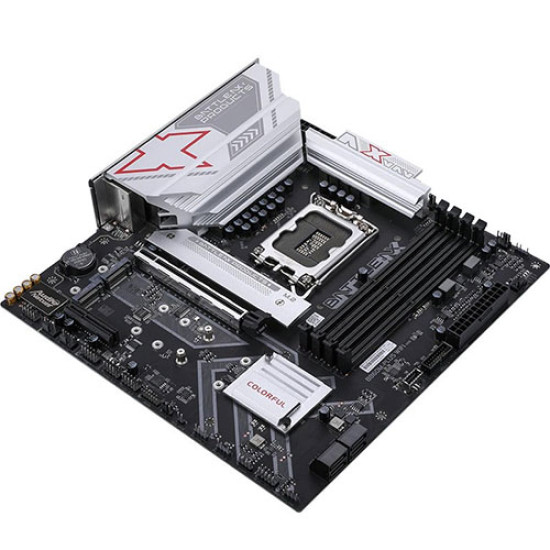

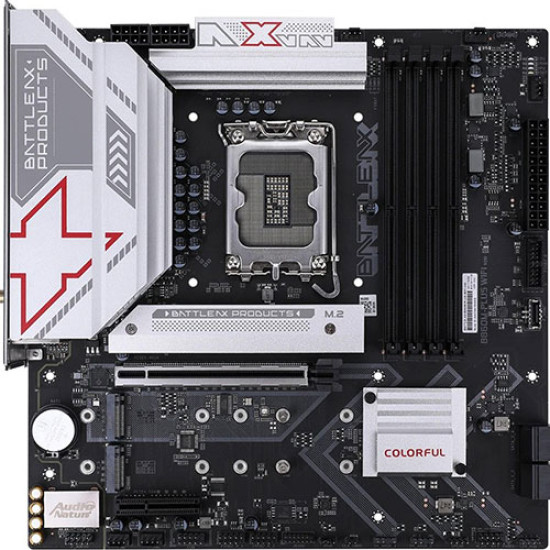

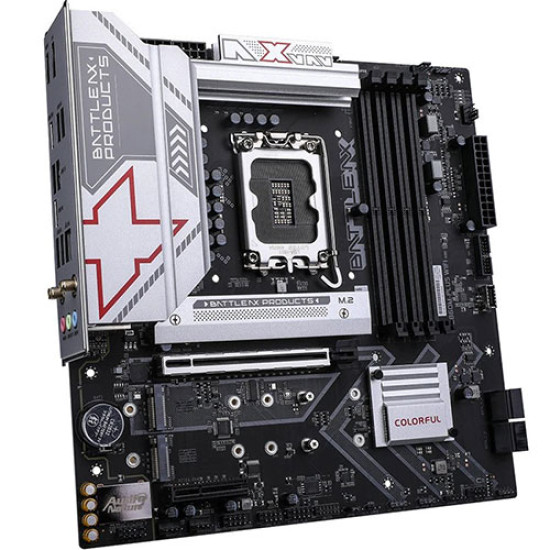

Colorful BATTLE-AX B860M-PLUS WIFI V20 DDR5 Intel Motherboard (BA-B860M-PL-WF-V20)

Features

BATTLE-AX series is equipped with customized frost cooling armor, with full-cover condenser for enhanced heat dissipation

Adopt 10+1+1+1 phase enhanced power supply design (Dr MOS 60A)

Provides 1 PCIe 5.0 x4 M.2 SSD slot and 2 PCIe 4.0 x4 M.2 SSD slots

Provides 1 USB 3.2 Gen 2x2 20Gbps Type-C high-speed rear interface

Equipped with Realtek 2.5G high-speed wired network card and AX101 WiFi 6 wireless network card, supports Bluetooth 5.2

Support iGame Center lighting control software, which can adjust the lighting effects of radiator, cooling fan and memory synchronously

Six major protection technologies, more stable product operation

200 processes strictly tested, quality guaranteed

PCB atomization process fully upgraded.

Specifications

Model : BATTLE-AX B860M-PLUS WIFI V20

Product Series : BATTLE-AX Series

Chipset : Intel B860

Processor

Supports Intel® Core™ Ultra processors that fit the LGA 1851 slot of the motherboard

(*Please visit the Colorful official website www.colorful.cn for the latest processor support list)

Memory

4 DDR5 memory slots, supporting up to 192 GB of memory (a single slot can support a capacity of up to 48 GB)

- Support DDR5-7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5800/5600/5400/5200/5000/4800MHz memory

- Support Intel® Extreme Memory Profile (XMP) memory technology

- Support dual channel memory technology

(* Please visit www.colorful.cn for the latest memory compatibility list)

SATA Ports

3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices

- M.2_1 slot: support 2242/2260/2280 M.2 SSD (PCIe 5.0 x4, CPU channel)

- M.2_2 slot: support 2242/2260/2280/22110 M.2 SSD (PCIe 4.0 x4, PCH channel)

- M.2_3 slot: support 2242/2260/2280/22110 M.2 SSD (PCIe 4.0 x4, PCH channel)

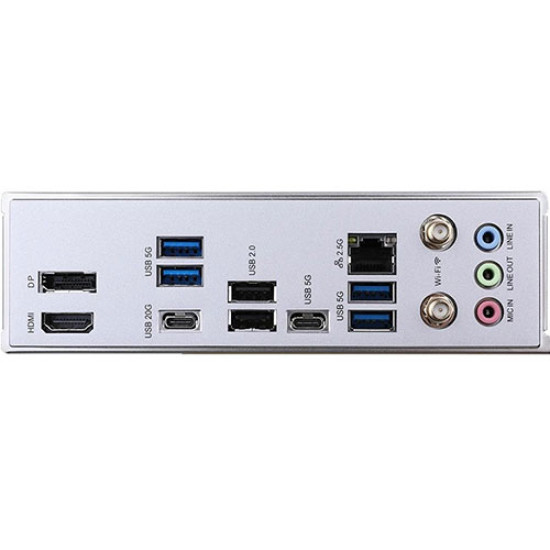

Board I/O

- 2×USB 2.0 interfaces

- 4×USB 3.2 Gen 1 5Gbps Type-A interfaces

- 1×USB 3.2 Gen 1 5Gbps Type-C interface

- 1×USB 3.2 Gen 2x2 20Gbps Type-C interface

- 1×DP 1.4 interface, Supports up to 8K 60Hz resolution

- 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution

- 1×2.5G network interface

- 2×Wi-Fi 6 antenna interfaces

- 3×Audio interfaces(audio input/audio output/microphone)

On board:

- 2×USB 2.0 pins can expand 4 USB 2.0 Type-A interfaces

- 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 5Gbps Type-A interfaces

- 1×USB 3.2 Gen 2 Type-C slot can expand 1 USB 3.2 Gen 2 10Gbps Type-C interface

- 1×CPU fan pin

- 3×System fan pins

- 1×Water cooling pump pin

- 3×5V 3-pin ARGB pins

- 1×12V 4-pin RGB pin

- 1×Front audio pin

- 1×Front panel pin

- 1×Speaker pin

- 1×COM port pin

- 1×Clear CMOS jumper

- 1×BIOS burner pin

- 1×RGB light effect control jumper

Expansion Slots

1×PCIe 5.0 x16 slot

1×PCIe 4.0 x4 slot

BIOS : 128M UEFI, support multiple languages

Power Management

Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

Hardware Monitor

CPU fan speed is controllable, system fan speed is controllable (Fan1 supports independent control and Fan2 and Fan3 share control), CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

LAN : RTL8125BG 2.5Gbit LAN, AX101 WiFi 6 wireless network card, Bluetooth 5.2

Audio : Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

Configuration : M-ATX 245 x 245 mm
