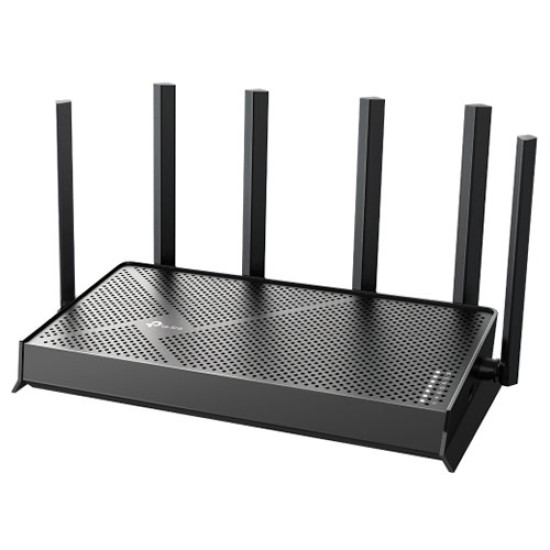

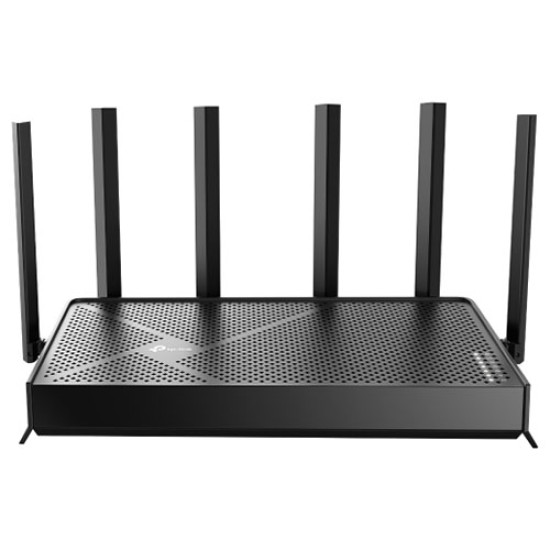

TP-Link Archer BE400 BE6500 Dual-Band Wi-Fi 7 Router

BE6500 Dual-Band Wi-Fi 7 Router

6.5 Gbps Dual-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.1

Multi-Link Operation (MLO): Transmits data with Wi-Fi 7 clients across multiple bands simultaneously to increase throughput, reduce latency, and improve reliability for various networking behaviors.6

2.5G Wired Connection: 1× 2.5 Gbps WAN port, 1× 2.5 Gbps LAN port and 3× 1 Gbps LAN ports offer high-speed data transmissions.4

Maximized Coverage:  6× external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.1

Easy Mesh-Compatible: Works with Easy Mesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.8

Easy Setup and Use: Network management has never been easier with the Tether app.

TP-Link Home Shield: Enhanced security defends against the latest cyber threats.7

Great Compatibility: Supports all Wi-Fi generations and devices and all internet providers.9

6.5 Gbps Dual Band Wi-Fi 7 Speed

Powered by Wi-Fi 7 technology, Archer BE400 delivers incredible Wi-Fi speeds of up to 6.5 Gbps, enabling your devices to run at full speed.1

WiFi 7, WiFi Like Never Before

WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.

Boosted Throughput, Unmatched Reliability

Multi-Link Operation (MLO) enables Archer BE400 to transmit data with Wi-Fi 7 clients across multiple bands simultaneously to increase throughput, reduce latency, and improve reliability for various networking behaviors.6

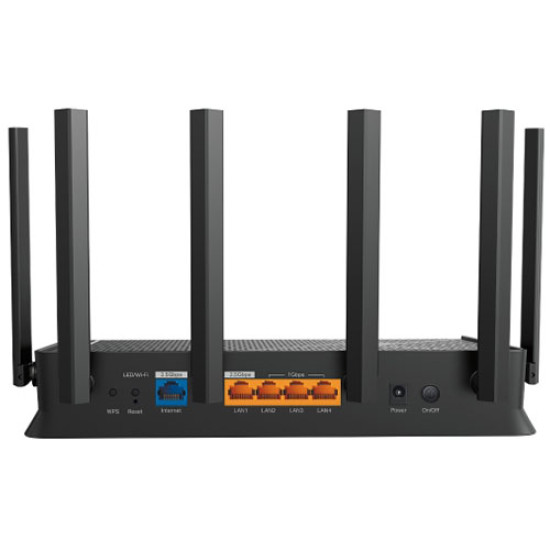

2.5 Gigabit Wired Connections Devices

Experience lightning-speed connectivity with dual 2.5 Gbps ports! Archer BE400 features 1× 2.5 Gbps Internet (WAN) port and 1× 2.5 Gbps LAN port, maximizing Gigabit+ speeds delivered by your internet service provider. Break through the 1G bottleneck and unleash peak performance.4

6× High Performance Antennas with

Beamforming for a Broader Coverage

Equipped with 6× high performance antennas, Archer BE400 boosts the WiFi signals throughout your home. The Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.1

Create Whole Home Mesh WiFi

Archer BE400 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.8

Specifications

WiFi Speeds

BE6500

• 5 GHz: 5764 Mbps

• 2.4 GHz: 688 Mbps

WiFi Range

3 Bedroom Houses

6× External Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity

High

Dual-Band

Allocate devices to different bands for optimal performance

MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

OFDMA

Simultaneously communicates with multiple clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

DFS

Access an extra band to reduce congestion

4 Streams

Connect your devices to more bandwidth

Advanced Features

• Multi-Link Operation (MLO)

• 4K-QAM

• Multi-RUs

• EasyMesh-Compatible

• Works with Alexa and Google Assistant

• IoT Network

Wireless Mode

• Router Mode

• Access Point Mode

SECURITY

Network Security

• SPI Firewall

• Access Control

• IP & MAC Binding

• Application Layer Gateway

• HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network

• 1× 5 GHz Guest Network

• 1× 2.4 GHz Guest Network

VPN Server

• OpenVPN Server

• PPTP VPN Server

• L2TP VPN Server

• WireGuard VPN Server

VPN Client

• Open VPN Client

• PPTP VPN Client

• L2TP VPN Client

• WireGuard VPN Client

WiFi Encryption

• WPA

• WPA2

• WPA3

• WPA/WPA2-Enterprise (802.1x)

HARDWARE

Ethernet Ports

• 1× 2.5 Gbps WAN

• 1× 2.5 Gbps LAN

• 3× 1 Gbps LAN

USB Support

1× USB 3.0

• Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32

• Supported Functions:

FTP Server

Media Server

Samba Server

Buttons • Power Button

• Wi-Fi/LED Button

• WPS Button

• Reset Button

Power 12 V ⎓ 2.5 A

SOFTWARE

Protocol

• IPv4

• IPv6

Service Kit

HomeShield

Learn More>

EasyMesh

Compatible with EasyMesh

Parental Controls

HomeShield Parental Controls

Custom Profiles

Professional Content Filter Library

Family Time

Bedtime

Off Time

Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

WAN Type

• Dynamic IP

• Static IP

• PPPoE

• PPTP

• L2TP

Quality of Service QoS by Device

Cloud Service

• Auto Firmware Upgrade

• TP-Link ID

• DDNS

NAT Forwarding

• Port Forwarding

• Port Triggering

• DMZ

• UPnP

IPTV

• IGMP Proxy

• IGMP Snooping

• Bridge

• Tag VLAN

DHCP

• Address Reservation

• DHCP Client List

• Server

DDNS

• TP-Link

• NO-IP

• DynDNS

Management Features

• Tether App

• Webpage
