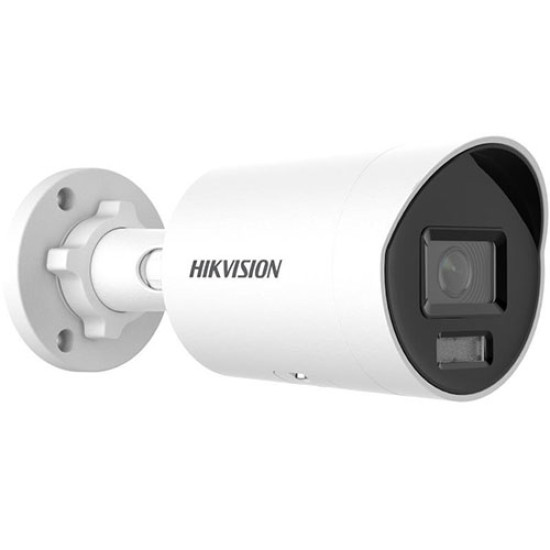

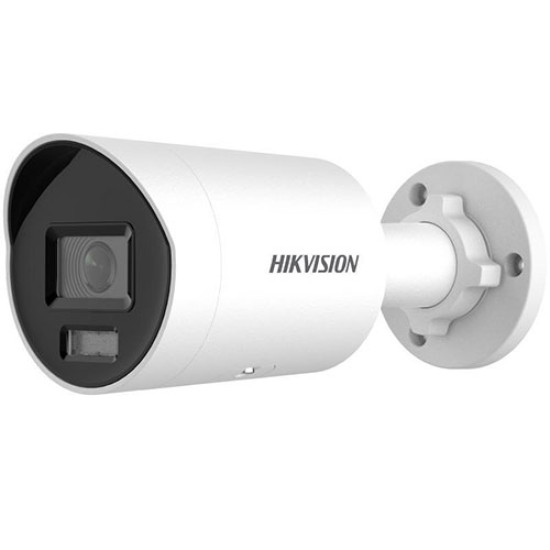

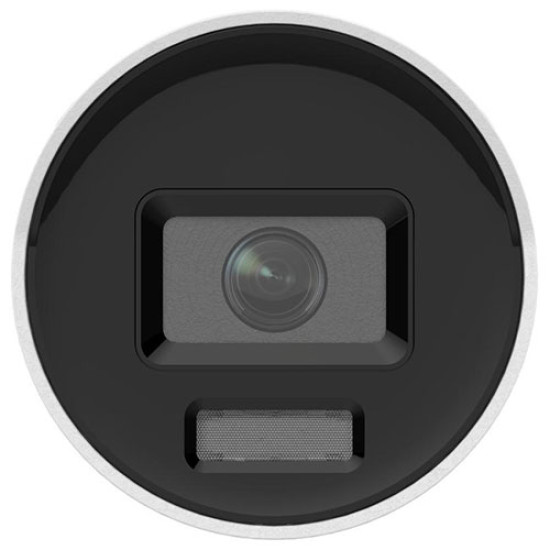

Hikvision 4 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera (DS-2CD2047G2H-LIU)

4 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera

High quality imaging with 4 MP resolution

Smart Hybrid Light: advanced technology with long range

Clear imaging against strong back light due to 130 dB WDR technology

Efficient H.265+ compression technology

Focus on human and vehicle classification based on deep learning

-U: Built-in microphone for real-time audio security

Water and dust resistant (IP67)

Specifications

Camera

Image Sensor : 1/1.8" Progressive Scan CMOS

Max. Resolution : 2688 × 1520

Min. Illumination : Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light

Shutter Time : 1/3 s to 1/100,000 s

Day & Night : IR cut filter

Angle Adjustment : Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens Type : Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 104.0°, vertical FOV 54.4°, diagonal FOV 126.7°

4 mm, horizontal FOV 89.2°, vertical FOV 45.5°, diagonal FOV 108.2°

Lens Mount : M16

Iris Type : Fixed

Aperture : F1.0

Depth of Field

2.8 mm: 2.5 m to ∞

4 mm: 3.1 m to ∞

DORI

DORI

2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m

4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type : IR,White Light

Supplement Light Range : Up to 40 m

Smart Supplement Light : Yes

IR Wavelength : 850 nm

Video

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*The third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

*Third stream is supported under certain settings.

Video Bit Rate : 32 Kbps to 8 Mbps

H.264 Type : Baseline Profile,Main Profile,High Profile

H.265 Type : Main Profile

Bit Rate Control : CBR,VBR

Scalable Video Coding (SVC) : H.264 and H.265 encoding

Region of Interest (ROI) : 1 fixed region for main stream and sub-stream

Audio

Audio Compression : -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)

Audio Sampling Rate : -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering : -U: Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Simultaneous Live View : Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Network Storage : NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)

Client : iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters Switch : Yes

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch : Day,Night,Auto,Schedule

Image Enhancement : BLC,HLC,3D DNR

SNR : ≥ 52 dB

Wide Dynamic Range (WDR) : 130 dB

Privacy Mask : 4 programmable polygon privacy masks

Interface

Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone : -U: Yes

Reset Key : Yes

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email

Smart Event : Scene change detection

Deep Learning Function

Face Capture : Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

General

Power

12 VDC ± 25%, 0.45 A, max. 5.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 7 W

Material : Front cover: Metal, body: Metal, bracket: Metal

Dimension : Ø74.4 mm × 179.2 mm (Ø2.9" × 7.1")

Package Dimension

234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")

Approx. 525 g (1.2 lb.)

With Package Weight : Approx. 750 g (1.7 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

Heartbeat,mirror,password reset via email,pixel counter,anti-banding

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015,

RCM: AS/NZS CISPR 32: 2015

Safety

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment : CE-RoHS: 2011/65/EU

Protection : IP67: IEC 60529-2013
