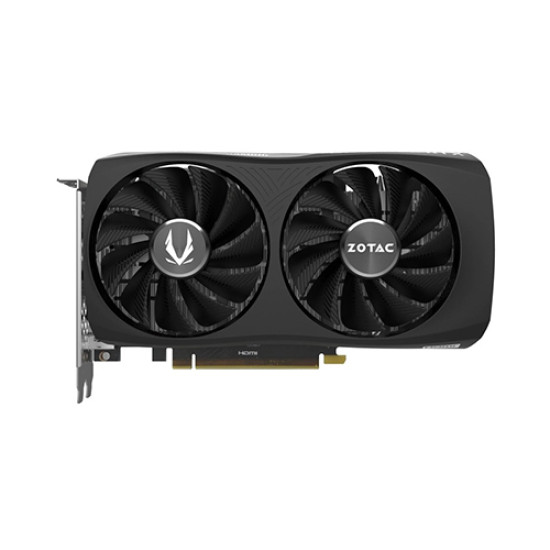

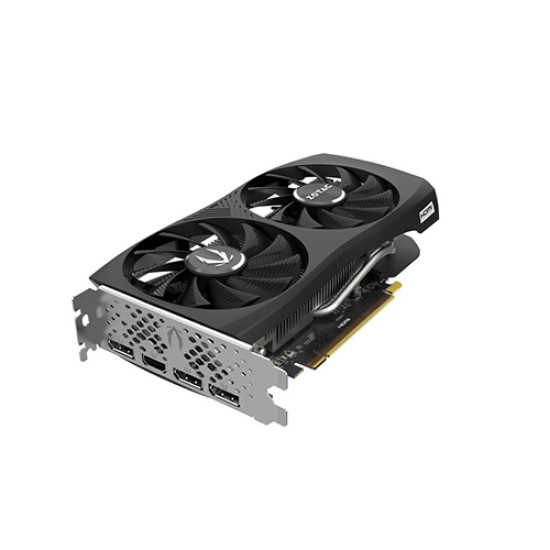

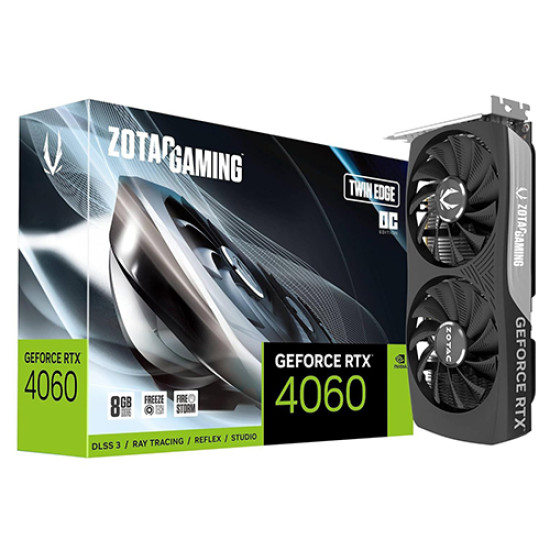

Zotac Gaming GeForce RTX 4060 8GB Twin Edge (ZT-D40600E-10M)

ZOTAC GAMING GeForce RTX 4060 8GB Twin Edge

The ZOTAC GAMING GeForce RTX 4060 8GB Twin Edge is a compact and capable graphics card, featuring the NVIDIA Ada Lovelace architecture and an aerodynamic-inspired design. With a reduced 2 slot size, it's an excellent choice for those who want to build a SFF gaming PC capable of smooth framerate and 1080p performance in the latest title releases.

Key Features

• Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
• Compact design with 2 Slot footprint
• Metal Backplate
• Freeze Fan Stop
• 221.4 mm / 8.7 in length
• 8-pin PCIe power connector

Hyperrealistic. Hyperfast.

The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.

The performance multiplier, powered by AI.

DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.

Max FPS. Max Quality. Powered by AI.

DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.

Further With AI, Faster on RTX

Discover the RTX AI advantage. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in AI power on Windows PCs is on NVIDIA RTX and GeForce RTX.

GEFORCE RTX 4060 FAMILY TWIN EDGE (OC)

The ZOTAC GAMING GeForce RTX 4060 Family Twin Edge and their OC variants have a purposefully designed compact footprint to enable powerful high-performance SFF PC builds.

WIDE CASE COMPATIBILITY

The compact design of the ZOTAC GAMING GeForce RTX 4060 family of GPUs make it easier for gamers looking to upgrade. With a slim 2.2-slot width and up to 8.9inch / 225.5mm short length, most PC cases available can easily accommodate with a simple drop-in installation.

STANDARD 8-PIN POWER

A single 8-pin PCIe power connector is all that’s needed to power this GPU. A lower 500W minimum recommended power supply (PSU) means that there are potentially less components needed for an upgrade, making it a more appealing upgrade choice.

ADVANCED COOLING

Refined in every aspect, IceStorm 2.0 is our advanced cooling system made to push the limit of GPU performance in even the most graphically demanding PC games.

COMPOSITE HEATPIPES

Made of composite layers consisting of a thicker envelope and a grooved wick with a multi-channel working fluid, each heat pipe is more efficient at transferring heat.

AIR FLOW

With ample ventilation paths, airflow can maneuver and exhaust from almost every side to minimize trapped heat.

NOISE REFINED

ZOTAC GAMING brings new noise-reducing features to the GeForce RTX 40 Series to enhance immersion when gaming.

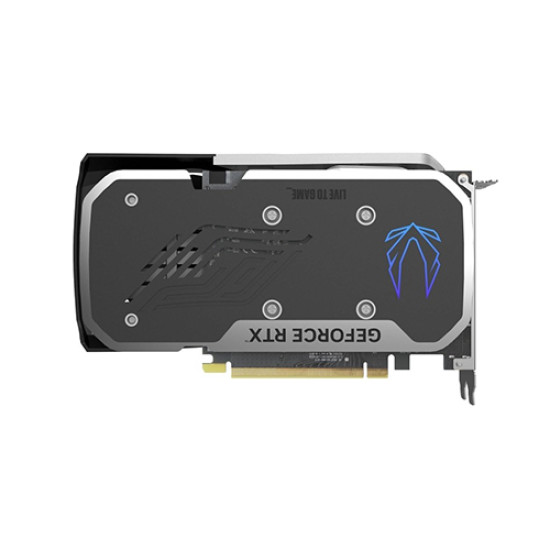

STRONG BACKSIDE

The ZOTAC GAMING GeForce RTX 4060 family’s rigidity is achieved with a metal backplate, giving it a strong foundation in durability.

NEW. SIMPLE. INTUITIVE.

The all-new ZOTAC GAMING FireStorm Utility for 40 Series features an entirely re-designed interface that makes complex fine-tuning tasks easier to do. The new software comes with a host of tuning and monitoring options that include clock speeds, GPU memory frequencies, voltage, fan speed, fan curve settings and SPECTRA RGB lighting effects.

SPECIFICATIONS

GPU : GeForce RTX 4060

CUDA cores : 3072

Video Memory : 8GB GDDR6

Memory Bus : 128-bit

Engine Clock : Boost: 2460 MHz

Memory Clock : 17 Gbps

PCI Express : 4.0 x8

Display Outputs3 x DisplayPort 1.4a (up to 7680x4320@60Hz), 1 x HDMI® Connector*

HDCP Support : 2.3

Multi Display Capability : Quad Display

Recommended Power Supply : 500W

Power Consumption : 115W-120W

Power Input : 1 x 8-pin PCIe

DirectX : 12 Ultimate

OpenGL : 4.6

Cooling : Air Cooled

Slot Size : 2 slot

SLI : N/A

Supported OS : Windows 11 / 10 (64-bit, v1809 November 2018 or later)

Card Length : 221.4mm x 122.7mm x 43.1mm / 8.7" x 4.8" x 1.7"

Accessories : User Manual
