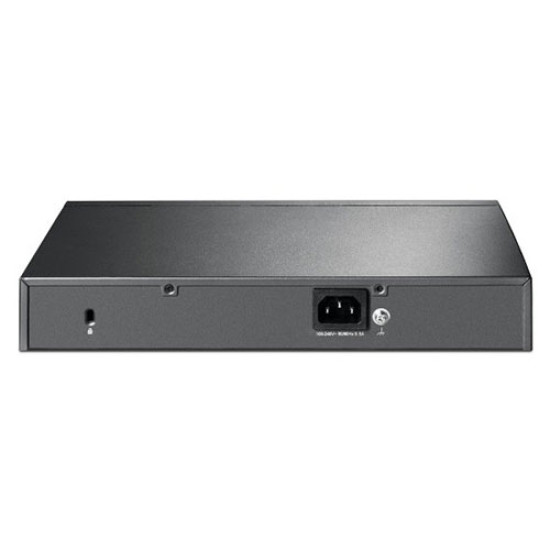

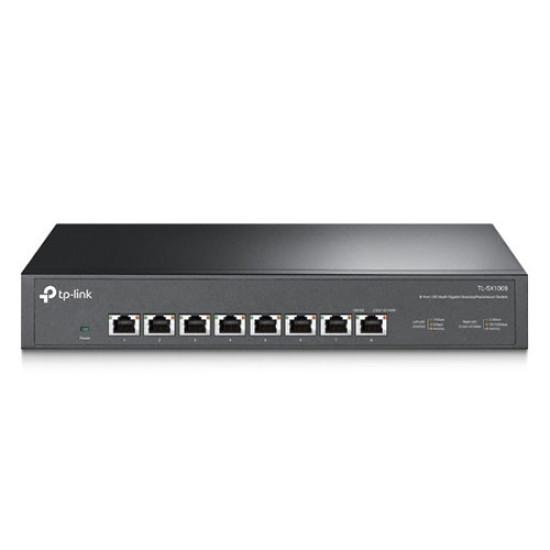

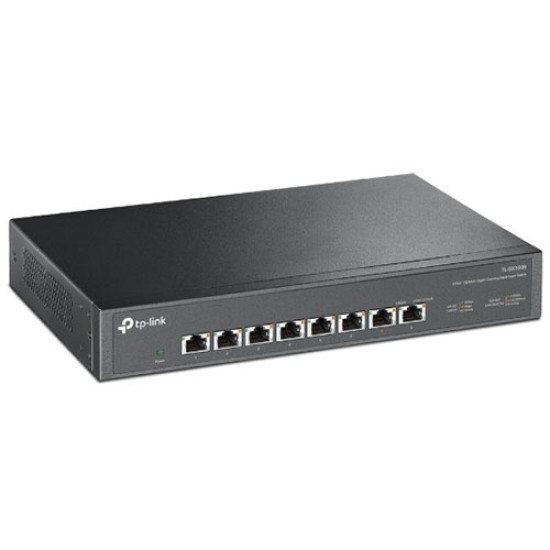

TP-Link TL-SX1008 8-Port 10G Desktop or Rackmount Switch

Unlock the Highest Performance of 10G/Multi-Gig Bandwidth and Devices

As the flagship 10G product, TL-SX1008 is an 8-port 10G desktop/rackmount switch, providing up to 160 Gbps of switching capacity. Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 10G NAS, 10G server, workstation, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, desktop, and more.

Ready for Immediate Network Upgrading to 10G?

Reliable, lightning-fast connections and the lowest possible latency make it ideal for gaming and small office and home office use.

Lightning-Fast Connections for Business and Home Office

Work at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points.

Unlock the Real WiFi 6†

The best option to meet the full bandwidth potential of WiFi 6 access points with 10G wired connections.

Instant Transfer for Workstations‡

Immediately back up and store computer files to NAS storage with increased transfer speeds, never waste time.

Built for Smooth LAN Parties

Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let’s begin the unprecedented smooth game!

Enjoy Buffer-Free 8K Videos

Enjoy buffer-free multi-channel 8K videos with friends and family for movie nights with maximum entertainment.

More 10GE LAN Ports for WiFi 6 Networking

Expand the 10GE LAN ports of your WiFi 6 routers and connect more devices—all running at max 10 Gbps.

Just Plug and Play for Internet Access

A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.

Flexible Deployment Options

The versatile mounting system gives you the flexibility to place the TL-SX1008 on a desktop or mount it in a rack.

Same Cables, New Speed

Designed to integrate flawlessly into existing gigabit Ethernet network infrastructures, guaranteeing speeds 5× faster§ using standard Cat5e Ethernet cables—no Cat6 wiring needed. With Cat6a or higher rated cables, 10G connections are built up to 100 meters (328 feet).

Secification

HARDWARE FEATURES

Standards and Protocols : IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz

Interface : 8× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity : 1 (Intelligent fan speed adjustment)

External Power Supply : 100–240 VAC, 50/60 Hz, 0.8A

LED :  System Power: 1 Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port

Dimensions ( W x D x H ) : 11.6×7.1×1.7 in (294×180×44 mm)

Max. Power Consumption : 31.2 W

PERFORMANCE

Switching Capacity : 160 Gbps

Packet Forwarding Rate : 119.0 Mpps

MAC Address Table : 32 K

Packet Buffer Memory : 2 Mb

Jumbo Frame : 10 KB

SOFTWARE FEATURES

Advanced Features : 802.3X Flow Control802.1p/DSCP QoS

Transmission Method : Store and Forward

OTHERS

Certification : CE, FCC ,RoHS

Package Content :  8-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX1008 Power Cord Installation GuideRackmount Kit Rubber Feet

Environment :  Operating Temperature: 0–50 °C (32–122 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
