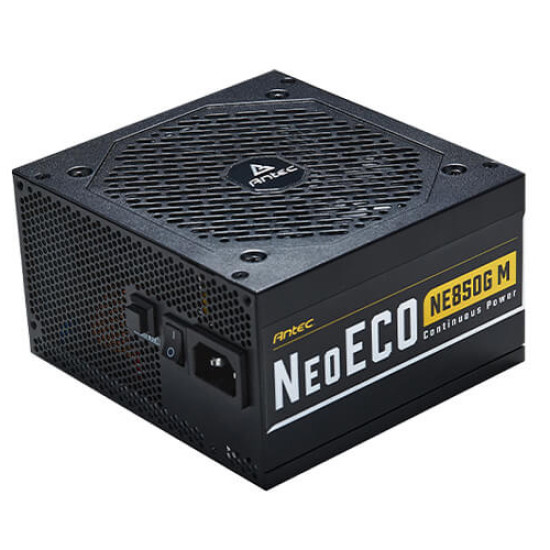

Antec Neo ECO 850W Gold Modular Power Supply (NE850G M GB)

NeoECO Gold modular 850W
The brand-new NeoECO Gold Modular series was born ready for the best DIY-PC experience seekers, and it also serves exceptional performance and outstanding stability. Featured 100% full modular design and 80 PLUS Gold certification, the NeoECO Gold Modular series keeps your PC hardware installation convenient and clean. It still provides highly efficient power to your system and reduces your electricity bills. The advanced thermal control with the Zero RPM mode enables to turn the fan off at low loads to provide absolute silence. With the 120mm silent fan, the NeoECO Gold Modular can optimize the balance between cooling and noise. High-quality Japanese heavy-duty caps allow your system has more stable performance. The CircuitShield™ design serves your industry-grade protection to make your system safe in any environment. With the 7-year warranty, the NeoECO Gold Modular series will be the ideal choice for professional modders and PC gamers.

120mmSilent Fan
Features improvement for airflow and excellent durability.

Zero RPM Mode
The Zero RPM fan mode further automatically ensures zero fan speed at low loads to reduce plenty of noise and keep absolute silence.

Japanese Heavy-Duty Caps
Japanese capacitors ensure the tightest DC stability and regulation, for eliability that you and your system can count on.

PhaseWaveTM LLC + DC to DC Design
A server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology to improve performance and stability.

FEATURES
850W Continuous Power™ - Guaranteed 850W of Continuous Power from Antec.100% Modular - Improves airflow and reduces clutter.80 PLUS® Gold certified -Reduce your electricity bill.PhaseWave™ Design - A server-class LLC design with a synchronous rectification based on a DC-DC topology

120mm Silent Fan

Whisper-quiet high-quality fluid-dynamic bearing fan with long life time .Zero RPM Manager - An advanced low voltage fan control with fan-off mode at low loads for absolute silence .99%+12V - Output for maximum CPU & GPU support .CircuitShield™ï¼Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO .High-Quality JP capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance .28(18+10) pin MBU socket - For possible future MBU connectors .ATX 12V 2.4－Engineered according to the newest PSU guideline and compatible with the latest CPU generation .

TECHNICAL DETAILS
BRAND : Antec
MODEL : NE850G M GB

SPECIFICATION

Type : ATX 12V 2.4
Modular : Fully
Dimension  : 150(L) x 140(W) x 86(H)
Input Voltage : 100-240 VAC
Input Current : 10A MAX
Input Frequency Range : 50Hz-60Hz
PFC : Active PFC
Power Good Signal  : 100-500ms
Efficiency : Up To 92%
Protection : OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
Output Capacity : 850W
Operation Temperature : 0~40°C
Regulatory : cTUVus / TUV / CB / RCM / CE / CCC / FCC / KC
Fan : 120mm Silence Fan
Certifications : 80 Plus Gold
Connector : 1 x MB 24(20+4) Pin, 2 x 8(4+4) Pin EPS 12V ,6 x 8(6+2) Pin PCI-E,10 x SATA ,5 x Molex,1 x FDD
Net Weight : 1.38 kgs
Gross Weight : 2.55 kgs
