ZOTAC GAMING GeForce RTX 5060 Twin Edge OC White Edition (ZT-B50600Q-10M)

ZOTAC GAMING GeForce RTX 5060 Twin Edge OC White Edition

ZT-B50600Q-10M

The ZOTAC GAMING GeForce RTX 5060 Twin Edge OC White Edition is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a factory OC as well as a solid cooling solution, the Twin Edge OC White Edition is ready to take on the latest title releases with smooth framerates and performance.

Specification

Feature Highlights:

- Powered by the NVIDIA Blackwell architecture and DLSS 4

- 8-Pin PCIe power connector

- SFF-Ready compact Graphics Card

- Metal Backplate

- BladeLink Fans

- All-new FireStorm Utility

GPUNVIDIA GeForce RTX 5060 GPU

CUDA   : cores3840

Video Memory  : 8GB GDDR7

Memory Bus : 128-bit

Engine Clock : 2527 MHz

Memory Clock : 28 Gbps

AI TOPS : 614

PCI Express : PCI Express 5.0 x8

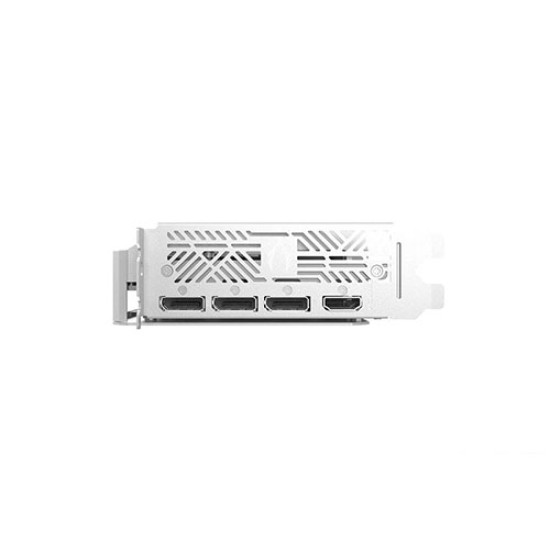

Display Outputs3 x DisplayPort 2.1b with UHBR20

(up to 4K 480Hz or 8K 165Hz with DSC)

1 x HDMI® :  Connector

(Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)

HDCP :  Support2.3

Multi Display :  CapabilityQuad Display

Recommended Power : Supply550W

Power Consumption : 145W

Power Input1 x 8-pin power input

DirectXMicrosoft :  DirectX® 12 Ultimate

OpenGL : 4.6

CoolingAir  :  Cooled

Slot :  Size2

SLINo

Supported OSWindows 11 / Windows 10 64-bit (v1809 November 2018 or later)

Card Length220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6"

Accessories : User Manual
