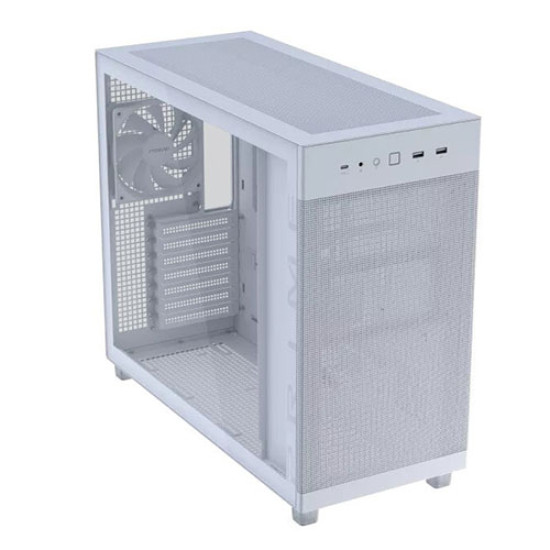

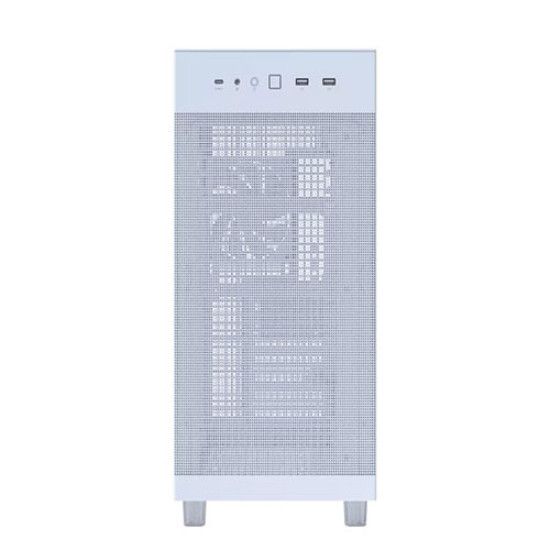

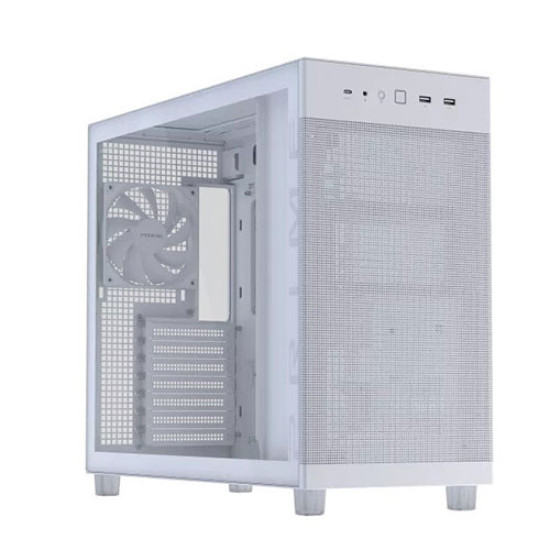

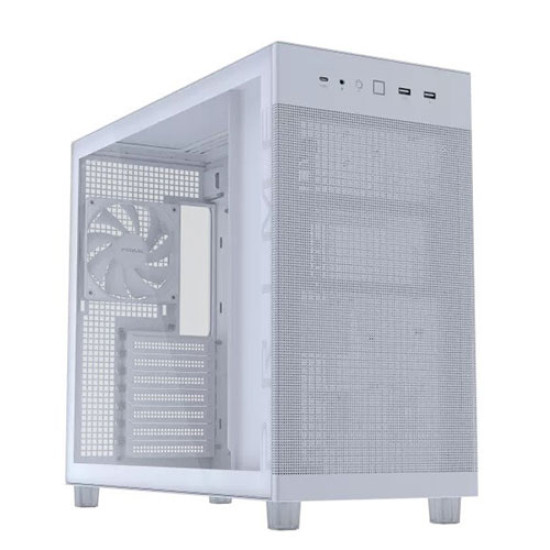

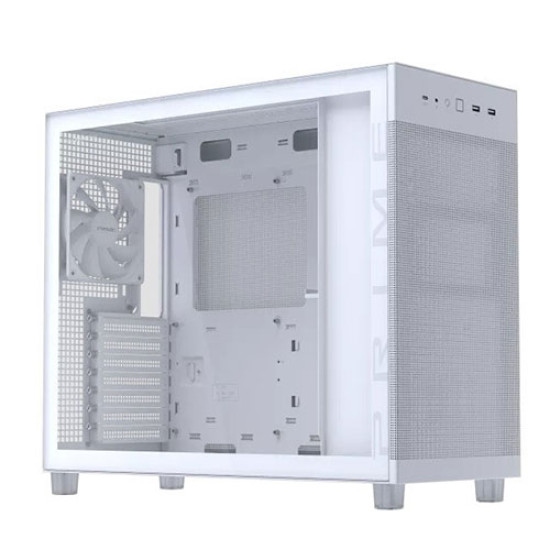

Asus Prime AP303 TG ATX Cabinet White (AP303-TG-WHT)

Tempered Glass Panel

Compact Frame. Massive Potential.

The ASUS Prime AP303 is a compact 44-liter ATX chassis that accommodates 360mm radiators up to 60mm thick and graphics cards up to 360mm long. It features a graphics card bracket and holder to keep cards firmly mounted, plus an internal power cable that delivers 15 amperes to maintain stable power delivery for high-end PC builds.

Exceptional Space Efficiency

The AP303 is designed to maximize internal space, enabling installation of graphics cards up to 360mm long, radiators up to 360mm long and ATX power supplies up to 180mm long.

Superior Stability

Under Heavy Loads

Alongside the graphics card holder is a graphics card bracket that supports GeForce RTX 50 Series graphics cards from 310mm to 360mm long. It securely mounts the graphics card with screws, reducing sagging and movement.

Efficient Cooling

With support for up to 360mm radiators and up to seven fans, the AP303 is primed to deal with the thermal scenarios of high-performance hardware.

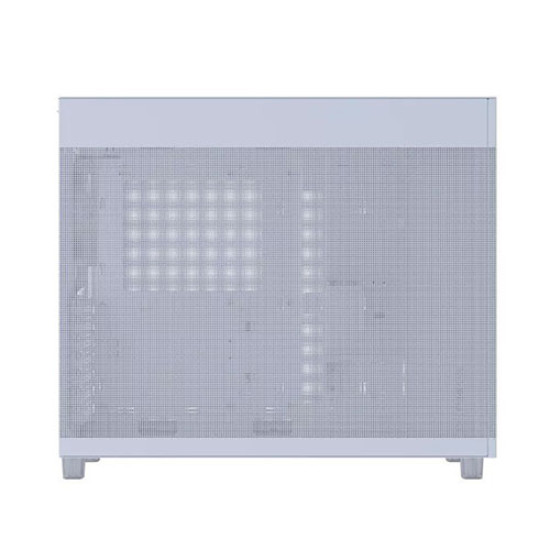

Quasi-Filter Mesh Panels

Metallic quasi-filter mesh panels are designed to enhance airflow and minimize dust ingress, delivering both performance and protection in a sleek style.

Pioneering Cable for High-End Systems

The UL-certified internal power cable delivers 15 amperes of current to ensure stable operation for high-end systems with a 1200W power supply.

USB Type-C® Support

AP303 includes one 20Gbps Type-C port and two USB 3.0 ports for future-ready and backward-compatible connectivity.

Unified Front I/O Header

A thoughtful header design makes connecting Front Input/Output (FIO) components to the motherboard easy.

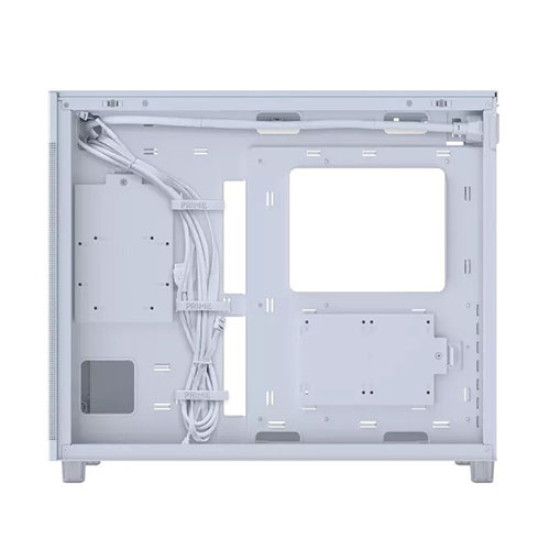

Organized Cabling

A 34mm-wide compartment behind the motherboard provides ample space to neatly organize cables, despite the relatively compact dimensions of the chassis.

Tool-Free Side Panels

The side panels of the AP303 use a simple but secure clip mechanism to attach to the case. This makes them easy to remove, providing easy access to the interior of the chassis.

Multiple Colors and Styles

The AP303 is available in either black or white, giving you options to create a rig that blends in or stands out. In addition, the tempered glass side panel version provides an elegant appearance, whereas the mesh side panel version boosts airflow efficiency and thermal performance.

Specification

Model : ASUS Prime AP303 - Tempered Glass Panel

Motherboard Support : ATXMicro-ATXMini-ITX

Drive Bays : 2 x 2.5" Bay1 x 2.5"/3.5" Combo Bay

Expansion Slots : 7

Front I/O Port : 1 x headphone / Microphone2 x USB 3.2 Gen11 x USB 3.2 Gen 2x2 Type C

Radiator Support (Top) : 120 mm140 mm240 mm280 mm360 mm

Radiator Support (Rear) : 120 mm

Cooling Support (Top) : 3 x 120 mm3 x 140 mm

Cooling Support (Rear) : 1 x 120 mm

Pre-installed Fans (Rear) : 1 x 120 mm

Maximum CPU Cooler Height : 165 mm

Maximum GPU Length : 360 mm

Maximum PSU Length : 180 mm

Removable Dust Filters : Bottom

Maximum Cable Management Space : 34 mm

Dimensions : 215*425*485 (W*H*D) mm

Weight : Mesh Edition: 6.8 KgTempered Glass Edition: 7.8 Kg
