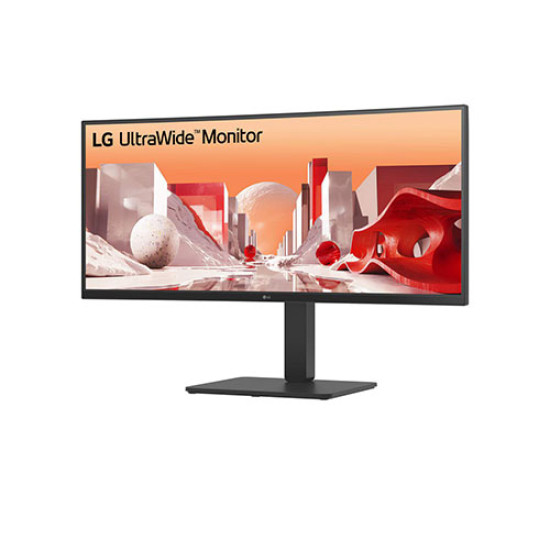

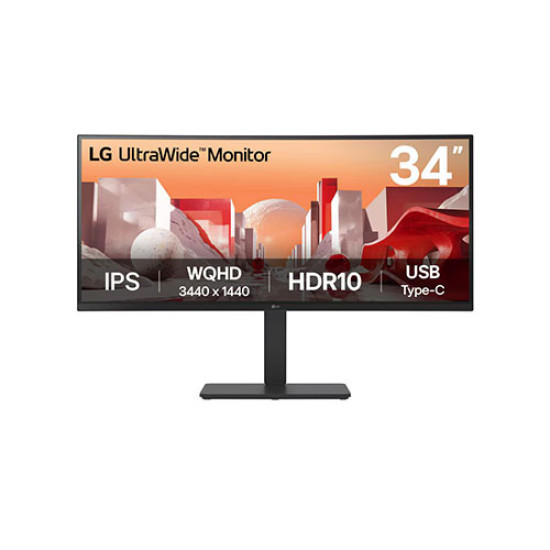

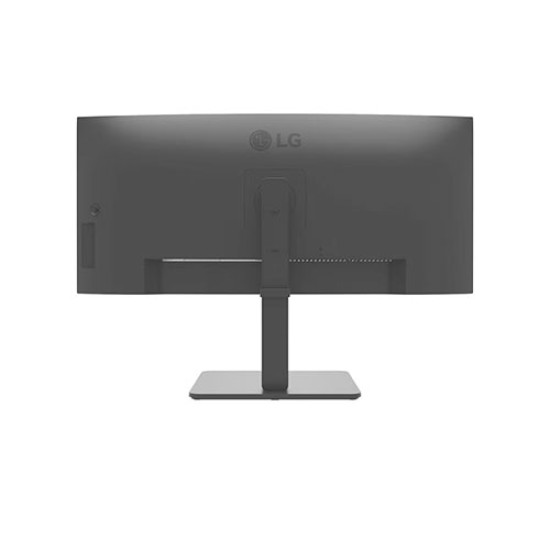

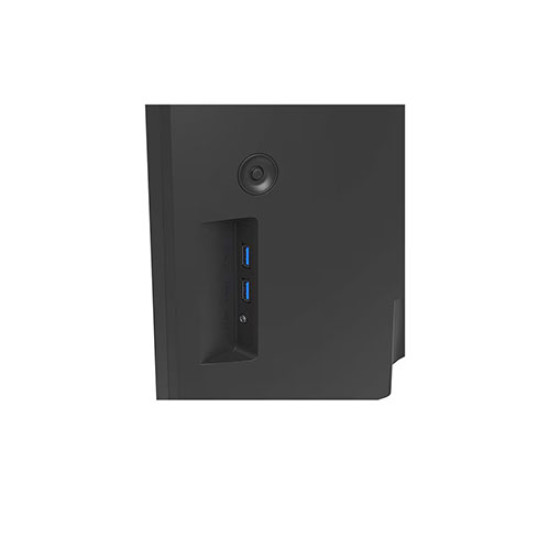

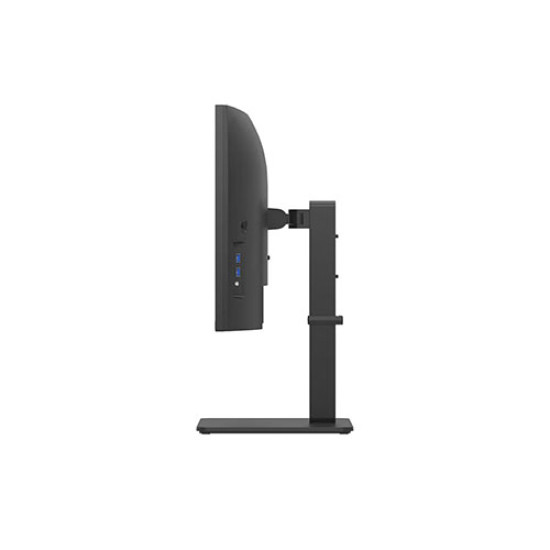

LG 34 inch UltraWide QHD Curved IPS Monitor with USB Type-C (34BA75QE)

34" UltraWide QHD Curved IPS Monitor with USB Type-C™

Key Features

34” WQHD (3440x1440) Curved IPS display

sRGB 99% (Typ.) / HDR10

Built-in power and speakers

USB Type-C™ (PD 90W) / RJ45

Reader Mode & Flicker Safe

Tilt/Height/Swivel adjustable stand

34" WQHD IPS display

Vivid color at wide angles

LG WQHD (3440x1440) monitor with IPS technology delivers a clear and consistent color. It can provide vivid color reproduction and help users to view the screen at a wide angle.

21:9 WQHD (3440x1440) Curved (3800R)

See more, do more

The UltraWide™ QHD (3440x1440) monitor, featuring a 3800R curvature and a 21:9 aspect ratio, provides you with more screen real estate and elevates your work efficiency. You can have multiple files open side by side and view extended rows of data in a spreadsheet without wrapping.

21:9 WQHD (3440x1440) Curved (3800R)

HDR10 with sRGB 99% (Typ.)

See amazing colors

HDR technology is now applied to various content. This monitor is compatible with industry standard HDR10 (High Dynamic Range), based on the sRGB 99% color gamut, supporting specific levels of color and brightness that enables viewers to enjoy the dramatic colors of the content.

 Picture By Picture (PBP)

One screen, multiple views

34BA75QE allows you to see multiple contents from two computers with the picture-by-picture feature, so it helps to process work efficiently.

Dual Controller (Built-in KVM)

Multi devices, one monitor

The dual controller helps to work through a single monitor with two computers and transfer files to either computer. Also, the built-in KVM feature allows you to control both computers with a single keyboard and mouse.

USB Type-C™

Productivity hub with easy connectivity

USB Type-C™ port allows from display and data transferring to connected device charging (up to 90W), enabling support for your laptop all at the same time over a single cable.

Multi ports

A variety of interface

The 34BA75QE offers a variety of ports, solving the problem of limited connectivity for hardworking individuals. With its multiple ports, you can easily connect numerous devices for efficient desk setup. Say goodbye to the frustration of running out of ports.

Specification:

INFO

Category : UltraWide

Product name; WQHD

Year ; Y24

DISPLAY : Size [Inch]

34 : Size [cm]

86.72 cm ' ; PPI (Pixel Per Inch)

109.68 ; Resolution ; 3440 x 1440

Panel Type ; IPS

Aspect Ratio ; 21:9

Pixel Pitch [mm] : 0.2325 x 0.2325 mm

Viewing Angle (CR≥10) ; 178º(R/L), 178º(U/D)

Curvature ; 3800R

Brightness (Min.) [cd/m²] ; 240 cd/m²

Brightness (Typ.) [cd/m²] ; 300 cd/m²

Color Gamut (Min.)

sRGB 90% (CIE1931)

Color Gamut (Typ.)

sRGB 99% (CIE1931)

Color Depth (Number of Colors)

1.07B

Color Bit

10bit (8bit+FRC)

Contrast Ratio (Min.) ; 700:1

contrast Ratio (Typ.) ; 1000:1

Response Time ; 5ms (GtG at Faster)

Refresh Rate (Max.) [Hz] ; 60

Surface Treatment

AntiGlare

FEATURES

HDR 10

YES

HDR Effect ; YES

Color Calibrated in Factory

YES ; Flicker Safe

YES ; Reader Mode

YES ; Color Weakness

YES : Super Resolution+

YES

Black Stabilizer ; YES

Dynamic Action Sync ; YES

User Defined Key : YES

Auto Input Switch : YES

PBP ; YES (2PBP)

Smart Energy Saving

YES

OSD Language

17 countries (English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Portuguese(brazil), Polish, Russian, Greek, Ukrainian, Chinese, Traditional Chinese, Japanese, Korean)

Picture mode

(SDR) : Custom, Vivid, HDR Effect, Reader, Cinema, FPS, RTS, Color Weakness (HDR) : Custom, Vivid, Cinema, FPS, RTS

Others (Features)

KVM, PBP, Ethernet ; SW APPLICATION

LG Switch ; YES

Dual Controller ; YES

OnScreen Control (LG Screen Manager)

YES

CONNECTIVITY

HDMI

YES(2ea)

HDMI Version ; 2

HDMI (HDCP Version) ; 2.

HDMI (w/o VRR) ; 59 ~60Hz

DisplayPort ; YES(1ea)

DP Version : 1.4

DP (HDCP Version) : 2.2

DP (w/o VRR) :L 59 ~60Hz

USB-C : YES(1ea)

USB-C (Data Transsmission)

YES  ; USB-C (Max. Resolution at Hz)

3440X1440@ 60H

USB-C (Power Delivery)

90W

USB Upstream Port

1x USB3.2 Gen1

USB Downstream Port

4x USB3.2 Gen1

Built-in KVM

YES;LAN (RJ-45)

YES Headphone out

3pole(Sound Only) ; Location

Rear / Side ; USB-C (DP Version)

1.4USBC (HDCP Version)

2.2;USB-C (V Frequency)

59 ~60Hz

SOUND

Speaker

5W x 2

Maxx Audio

YES

POWER

Type

Builtin Power

AC Input : 100~240V (50/60Hz)

DC Output : 20.5V, 9A

Power Consumption (On-Mode : 29W

Power Consumption (Sleep Mode) : Less than 0.5W

Power Consumption (DC Off) : Less than 0.3W

Power Consumption (On-Mode) (ErP) : 29W

Power Cnsumption (On-Mode) (KR) : NA

MECHANICAL

Borderless Design

3Side Virtually Borderless Design

Display Position Adjustments

Tilt/Height/Swive

tilt : 5 ~ +21 °

Swivel : ±45º

Height Range [mm] : 150m

Down Height [mm] : 13mm

Wall Mountable [mm]100 x 100 mm

OneClick Stand : YES

Base Detachable : YES

Color (Back Cover) : Black Texture

Color (Front Cabinet) : Black Texture

Color (Middle Cabinet) : Black Texture

Color (Stand Base) : Black Texture

Color (Stand Body)  ; Black Texture

DIMENSINS/WEIGHTS

Dimension with Stand (W x H x D) [mm]

816.7*543.5*267.5（Up）816.7*393.5*267.5（Down）

Dimension without Stand (W x H x D) [mm]

816.7*364.4*83.6

Dimension in Shiping (W x H x D) [mm]

988 x 482 x 203 mm

Weight with Stand [kg : 11kg

Weight without Stand [kg] : 7.5kg

Weight in Shipping [kg] : 13.7kg

Pallet Stuffing (20ft/40ft/40ft HC)

216ea / 504ea / 630ea ; ACCESSORY

HDMI: YES

Dsplay Port ; YES

USB-C ; YES

Display Port (Color/Length)

Black / 1.8m

HDMI (Color/Length) ; Black / 1.8m

Power Cord : YES

Power Cord (Color/Length)

Black / 1.8m

USB-C (Color/Length)

Black / 1.8m

STANDARD : TCO ; YES ; PA

YES : EPEAT (USA)

BRONZE

EPEAT (Germany) : BRONZE

Others (Standard) : CEC, PCF Report

TUV-GS : YES

TUV-Ergo ; YES

CB ; YES

UL (cUL) ; YES

FCC-B ; YES

ErP ; YES

CE ; YES
