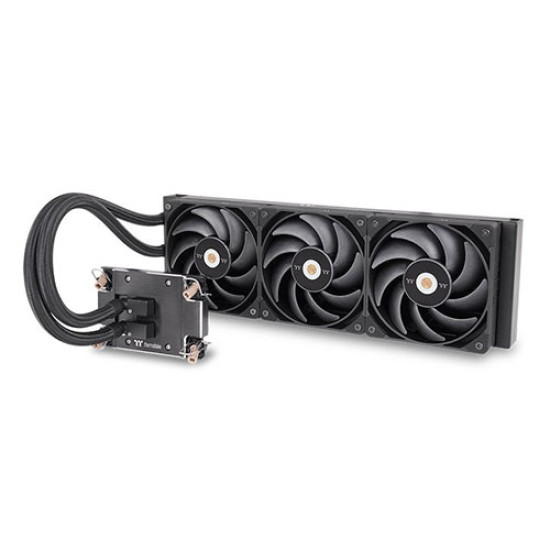

Thermaltake AW420 AIO 420mm Liquid Cooler (CL-W445-PL14BL-A)

AW420 AIO Liquid Cooler

CL-W445-PL14BL-A

The AW420 AIO Liquid Cooler provides premium cooling performance for workstation configurations, supporting Intel LGA4710/4677 and AMD sTR5/SP6 sockets. It features a nickel-plated copper water block for excellent heat dissipation and three TOUGHFAN 14 Pro fans with high static pressure. It is an ideal cooling solution for intensive tasks like 3D rendering and AI computing. Its all-black aesthetic design combines performance and style for the ultimate workstation experience.

AW420 AIO Liquid Cooler

Ready for Workstation Cooling

Supports Intel LGA4710/4677 & AMD sTR5 / SP6 Sockets

The AW420 AIO Liquid Cooler is designed for workstation setups, ensuring exceptional cooling efficiency for demanding workloads, such as 3D rendering, AI computing, and big data analytics. It can accommodate Intel LGA4710/4677 and AMD sTR5/SP6 sockets, delivering broad compatibility with the latest workstation processors.

Nickel-Plated Copper Water Block in Large Size

The water block is designed with an expanded structure to maximize heat dissipation and ensure full CPU coverage. Built with nickel-plated copper and with a copper-based active cooling surface, it offers exceptional cooling efficiency and durability for workstation systems.

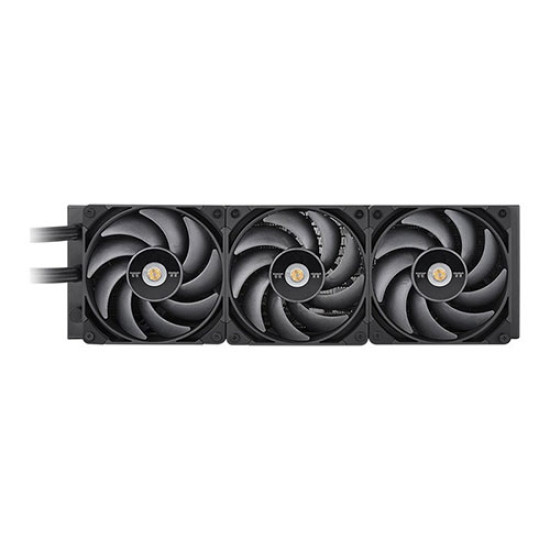

High Static Pressure with TOUGHFAN Pro

The AW420 AIO Liquid Cooler is equipped with three TOUGHFAN 14 Pro fans, featuring an advanced blade design for outstanding airflow and static pressure. With a performance of 119.6 CFM airflow and 3.57 mm-H2O static pressure, while maintaining 31.6 dB-A noise level, these fans offer superior cooling efficiency.

For those looking to maintain consistency across their build, the TOUGHFAN Pro fans are also available for purchase individually.

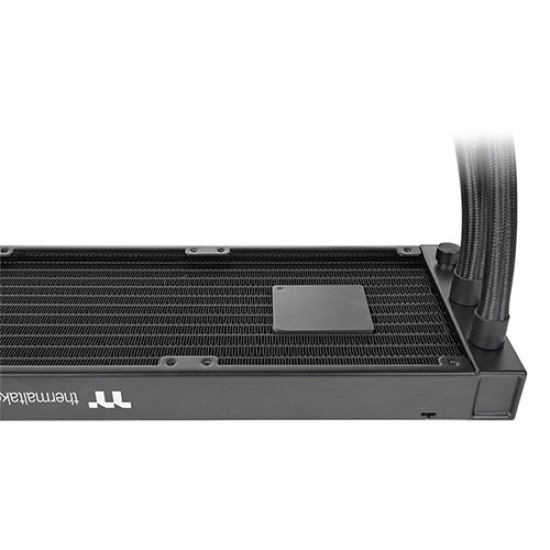

Enhanced Radiator with a Compact Design

The AW AIO Liquid Cooler Series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

Stable and Quiet Cooling

The high-quality pump maintains steady water circulation, keeping the copper plate consistently cool. Featuring a three-phase, six-pole motor integrated into the radiator, it minimizes pump noise while delivering efficient cooling performance.

Sleek All-Black Design

The AW AIO Liquid Cooler Series features an all-black aesthetic, delivering a modern and sophisticated look. Designed to blend style and performance, making it an ideal choice for enthusiasts seeking both visual appeal and cooling efficiency.

Specification :

P/N : CL-W445-PL14BL-A

PUMP :

Pump Speed : 4000 RPM

Rated Voltage : 12 V

Rated Current : 0.3 A

Power Input : 3.6 W

Connector : 2510- 3 Pin

WATER BLOCK

Material : Copper

Fan :

Dimension : 140 x 140 x 25 mm

Fan Speed : PWM 500~2000 R.P.M

Connector : 2510- 4 Pin

Started Voltage : 6V

Rated Voltage : 12V

Rated Current : 0.36A (one fan)

Power Input : 4.32W (one fan)

Air Flow : 119.6CFM (one fan)

Air Pressure : 3.57 mm-H2O (one fan)

Noise Level : 31.6 dB-A (one fan)

Tube :

Length : 460mm

Material : Rubber

Radiator :

Dimension : 456 x 138.5 x 27 mm

Material : Aluminum

COMPATIBILITY

CPU Socket:

Intel LGA4710/4677

AMD sTR5/SP6

TDP : 625W
