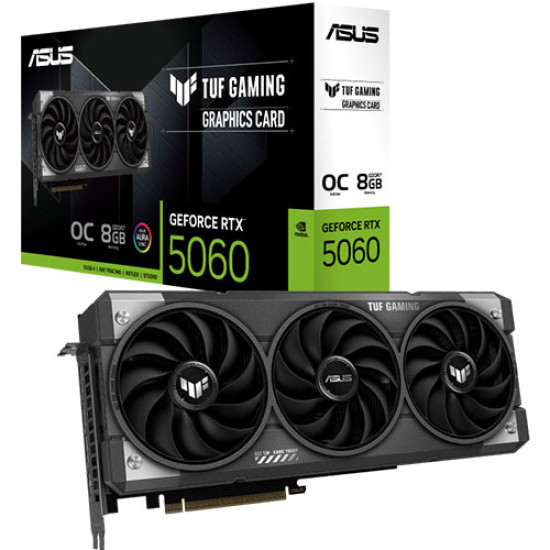

ASUS TUF Gaming GeForce RTX 5060 8GB GDDR7 OC Edition (TUF-RTX5060-O8G)

ASUS TUF Gaming GeForce RTX™ 5060

NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5060, designed to withstand the harshest conditions and deliver unparalleled performance.

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

Protective PCB Coating

A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Dual-ball Fan Bearings

Dual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling.

MaxContact Design

MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.

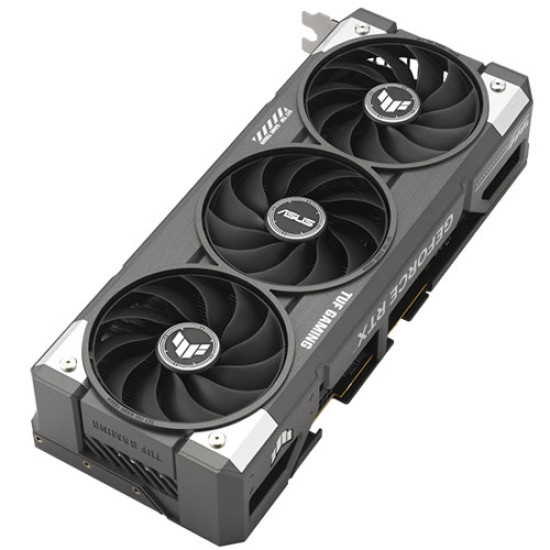

Axial-tech Upgrades

Axial-tech fans spin on dual-ball bearings and propel more air than standard fans.

New Directions

The two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 50°C, for quieter operation during light tasks. They restart above 55°C, following a speed curve that balances performance and acoustics.

Perfect PSU for the TUF Gaming GeForce RTX 50 Series

The TUF Gaming Gold Series PSUs are the perfect match for TUF Gaming GeForce RTX 50 series graphics cards, offering exceptional durability and reliable power delivery. Built with high-quality components and military-grade capacitors, these PSUs ensure your gaming setup performs at its best, even during the most demanding sessions.

The Ultimate in Ray Tracing and AI

RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

Specifications

Model : TUF-RTX5060-O8G-GAMING

Graphic Engine : NVIDIA® GeForce RTX™ 5060

AI Performance : 648 TOPs

Bus Standard : PCI Express 5.0

OpenGL : OpenGL®4.6

Video Memory : 8GB GDDR7

Engine Clock

OC mode: 2677MHz

Default mode: 2640MHz (Boost Clock)

CUDA Core : 3840

Memory Speed : 28 Gbps

Memory Interface : 128-bit

Resolution : Digital Max Resolution 7680 x 4320

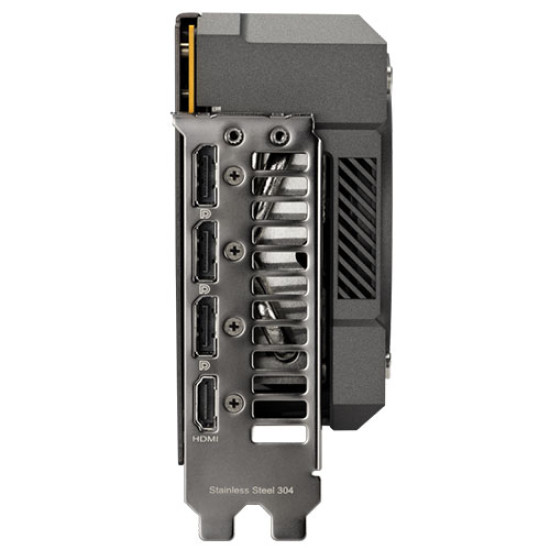

Interface

Yes x 1 (Native HDMI 2.1b)

Yes x 3 (Native DisplayPort 2.1b)

HDCP Support Yes (2.3)

Maximum Display Support : 4

NVlink/ Crossfire Support : No

Accessories

1 x Speedsetup Manual

1 x TUF Velcro Hook & Loop

1 x TUF Gaming Certificate

1 x Thank You Card

Software

ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions : 302 x 133.5 x 62mm

Recommended PSU : 550W

Power Connectors : 1 x 8-pin

Slot : 3.1 slot

AURA SYNC : ARGB
