Asus Dual Radeon RX9060XT 8G GDDR6 (DUAL-RX9060XT-8G)

Dual Fans, Perfect Fit

ASUS Dual Radeon™ RX 9060 XT combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

2.5-slot Design

A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

Axial-tech Upgrades

Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology

To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 55°C and power consumption is low.

Dual Ball Fan Bearings

Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

Vented Backplate

A vented backplate significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

ASUS GPU Guard

ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks.

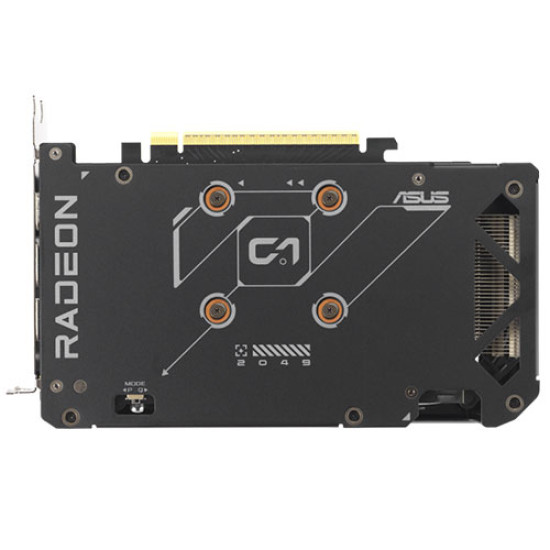

Protective Backplate

The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.

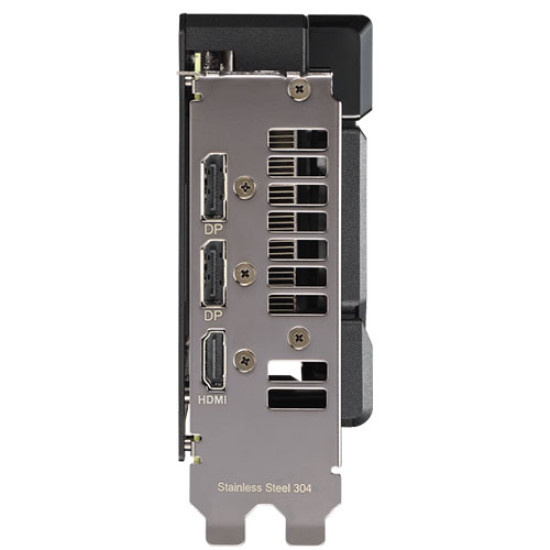

Stainless Steel Bracket

The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.

Dual BIOS

Do you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.

Auto−Extreme Technology

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact. The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.

BEST PSU FOR RADEON™ RX 9000 SERIES

Use the wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG, TUF Gaming or Prime power supply for ultimate performance.

Specifications

Model : DUAL-RX9060XT-8G

Graphic Engine : AMD Radeon™ RX 9060 XT

Bus Standard : PCI Express 5.0

OpenGL : OpenGL®4.6

Video Memory : 8GB GDDR6

Engine Clock

OC mode (GPU Tweak III): up to 3150 MHz (Boost Clock)/up to 2550 MHz (Game Clock)

Default mode: up to 3130 MHz (Boost Clock)/up to 2530 MHz (Game Clock)

Stream Processors : 2048

Memory Speed : 20 Gbps​

Memory Interface : 128-bit

Resolution : Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.1b)

Yes x 2 (Native DisplayPort 2.1a)

HDCP Support Yes (2.3)

Maximum Display Support : 3

NVlink/ Crossfire Support : No

Software

ASUS GPU Tweak III & Drivers: please download all software from the support site.

Accessories

1 x Thank you card

1 x Speedsetup Manual

202 x 120 x 49mm

Recommended PSU : 550W

Power Connectors : 1 x 8-pin

Slot : 2.5 Slot
