MSI GeForce RTX 5060 8G VENTUS 2X OC 8GB GDDR7

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
• Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

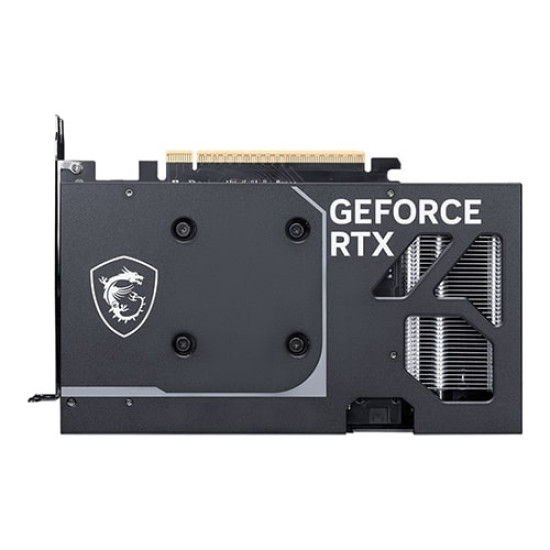

• Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

TAKE THE ESSENTIALS

VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

DUAL-FAN THERMAL DESIGN

Two fans on a large heatsink ensure great cooling performance with a quieter experience.

HARDENING EVERY DETAIL

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.

Specification

Marketing Name : GeForce RTX™ 5060 8G VENTUS 2X OC

Model Name : G5060-8V2C

Graphics Processing Unit : NVIDIA® GeForce RTX™ 5060

Interface : PCI Express® Gen 5 x16 (uses x8)

CUDA® CORES : 3840 Units

Memory Speed : 28 Gbps

Memory : 8GB GDDR7

Memory Bus : 128-bit

HDCP Support : Y

Power consumption : 145 W

Power connectors : 8-pin x1

Recommended PSU : 550 W

Card Dimension (mm) : 197 x 120 x 41 mm

DirectX Version Support : 12 Ultimate

OpenGL Version Support : 4.6

Maximum Displays : 4

G-SYNC® technology : Y

Digital Maximum Resolution : 7680 x 4320

Core Clocks

Extreme Performance: 2535 MHz (MSI Center)

Boost: 2527 MHz

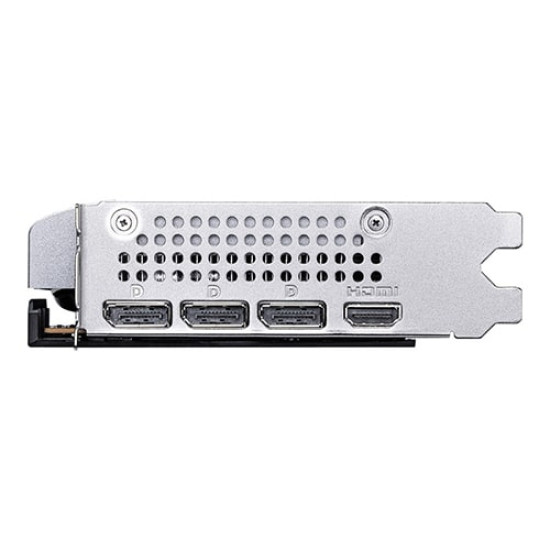

Output

DisplayPort x 3 (v2.1b)

HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
