Corsair Chassis FRAME 5000D RS ARGB Mid-Tower PC Case White (CC-9011310-WW)

Key Features

We Provide the Frame, You Create the Art

Build the high-airflow, low-temperature PC of your dreams in the CORSAIR FRAME 5000D highairflow case, featuring the innovative FRAME Modular Case System offering unprecedented flexibility to perfectly customize your build as you want it. The InfiniRail Mounting System simplifies fan installation, while support for up to a 420mm radiators and a new 3D Y-Pattern Airflow front panel ensure cool air is directed precisely where it’s needed most. The increased width and length ensure compatibility with the most powerful graphics cards and cooling options, with support for reverse connection motherboards future-proofing your system. We provide the frame. You create the art.

FRAME Modular Case System

The revolutionary FRAME system gives new meaning to the word customization. he revolutionary FRAME Modular Case System redefines customization. Some of the choices include upgrading the motherboard tray to billet aluminum, replacing the front I/O panel with different USB ports, and swapping out the front intake panel for a different look. This case evolves with your needs, offering a variety of options for future upgrades and aesthetic changes.

choose your way

The internal side panel near the motherboard tray can be used as a cable cover for clean cable management, or you can remove it and mount fans to the side for increased cooling potential.

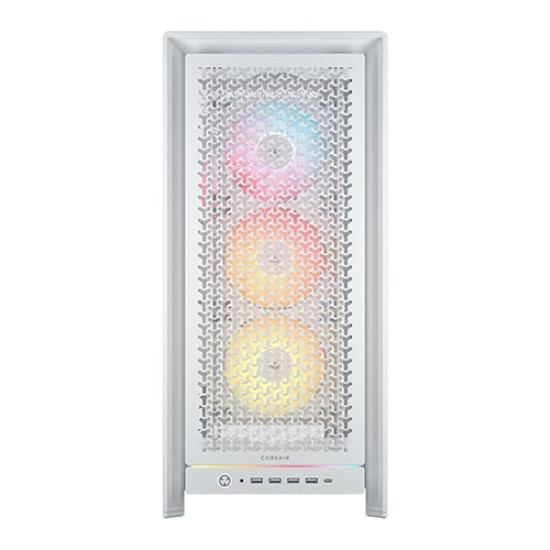

3D Y-Pattern Airflow Panel

Optimized for high airflow and minimal restriction, the steel front panel is perforated in three dimensions with a Y-pattern that provides a low-obstruction path for cool air.

Top 420mm Radiator Support

Take your cooling to the next level with a top-mounted 420mm radiator and room for 360mm radiators on the front or side.

infiniRail™ Fan Mounting

Mount up to 14x 120mm fans simultaneously to keep cool air flowing in and hot air exhausting quickly and efficiently, or easily adjust the InfiniRail™ fan mounts for 140mm or 200mm fan locations. The combinations are nearly endless.

Four RS140 ARGB Fans Included

RS140 ARGB PWM daisy-chainable fans for simply great cooling – no separate controller needed. Controlled through one 4-pin PWM connector and one +5V ARGB connector on your compatible motherboard.

Supports Reverse Connection Motherboards

ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth validated with plenty of connector and cable cutouts and tie-downs to keep things tidy even where you can’t see them.

a wealth of ports

The FRAME 5000D offers four USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C front I/O panel. The I/O ports have also been relocated to the bottom of the case to make it easy for folks with their PC on their desk to connect devices.

future-proofed storage

Included drive trays for dual 3.5” hard drives or four 2.5” SSDs, or they can be removed entirely to make room for custom liquid cooling components and cables.

Solid GPU Support

Modern graphics cards are bigger and heavier than ever, which is why every 5000D comes with an included GPU Anti-sag stabilization arm. GPUs are getting bigger and hotter, which is why the Frame 5000D was designed slightly longer and wider than most other mid-tower cases.

in stunning detail

The Frame 5000D includes a number of features displaying CORSAIR's attention to detail. They include external cable management points, captive screws that won’t get lost, fully color-matched rivets, screws, and plastic components, an attractive Frost White option, and built-in rotatable PCI slots for vertical GPU mounting fans.

RapidRoute 2.0

FRAME 5000D features the next generation of CORSAIR's cable-routing hardware, with a pegboard-style motherboard tray that allows for custom mounting points for tie-downs and buckles. It also comes with several types of cable clips, or you can 3D print your own. It includes six cinching straps and two wire loom pairs to secure extra cable lengths for a tidy interior.

Specification

Case Edition : FRAME 5000D RS ARGB

Case Form Factor : Mid Tower

Motherboard Form Factor : ATX, E-ATX, MicroATX, Mini-ITX

Back Connect Compatible : Yes

I/O, Bays & Expansion

Standard Expansion Slots : 8

Vertical Expansion Slots : 3

Front/Side/Top Panel I/O :

1 x Headphone/Mic Combo

1 x Power Button

4 x USB 3.2 Gen2 Type-A

1 x USB 3.2 Gen2 Type-C

Drive Bays :

6 x 2.5" Internal

2 x 3.5"

Fans & Filters

Fans Included : 4 x 140mm w/ Addressable RGB LEDs

Fan Bays :

4 x 120mm

3 x 120mm / 140mm / 2x 200mm

7 x 120mm / 7x 140mm

Fan Controller/Hub :

Dust Filters

Bottom

Front

Side

Liquid Cooling Support

Front Radiator Compatibility : 1 x 240/280/360mm

Top Radiator Compatibility : 1 x 240/280/360/420mm

Bottom Radiator Compatibility

Rear Radiator Compatibility : 1 x 120/140mm

Side Radiator Compatibility : 1 x 240/280/360mm

Clearances

Max CPU Cooler Height : 175 mm

Max GPU Card Length : 450 mm

Cable Routing Space

Side Panels

Window/s : Yes

Window Configuration : 1 x Main Side

Window Construction : Tempered Glass

LED Lighting Functionality

LED Lighting : No

LED Lighting Emitters

LED Lighting Colour

LED Lighting Support & Control

Power Supply Compatibility

PSU Included : No

PSU Wattage (If Included)

PSU 80+ Rating (If Included)

PSU Support : ATX

PSU Mounting Location : Bottom Mount, Rear

Max PSU Length : 250 mm

Chassis

Colour : White

Chassis Construction Materials : Steel / Tempered Glass
