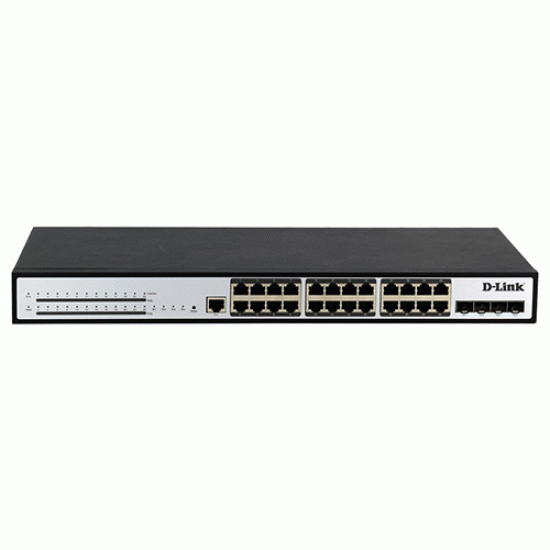

D-Link Lite L3 PoE Managed Switch (DGS-F1210-28P)

Powerful, yet Cost-Efficient

The D-Link DGS-F1210-28P Lite L3 PoE Managed Switch that offers advanced features such as Virtual Switch Stacking (VSS) supporting up to 12 units and IP interfaces supporting up to 64 SVIs. This switch also supports dynamic routing protocols including RIP, RIPng, OSPF, and OSPFv3, ensuring seamless and scalable network performance. The D-Link DGS-F1210-28P Lite L3 PoE Managed Switch is meticulously engineered to cater to the dynamic requirements of small to medium-sized business.

This switch seamlessly integrates advanced Layer 2 and Layer 3 features, providing versatile deployment options and robust network management capabilities PoE (Power over Ethernet) refers to the power over Ethernet technology.

Quality of Service (QoS) and Traffic Management

The DGS-F1210-28P is equipped with a comprehensive set of QoS features that ensure critical network services such as voice over IP (VoIP), video conferencing, and IPTV receive the bandwidth and priority they require.

Security and Control

Security is paramount in modern network environments. The DGS-F1210-28P offers comprehensive security features to protect your network and data.

Specification :

Network Standard :

IEEE 802.3: Ethernet Media Access Control (MAC) protocol

IEEE 802.3i: 10BASE -T Ethernet

IEEE 802.3u: 100BASE -TX fast Ethernet

IEEE 802.3ab: 1000BASE -T gigabit Ethernet

IEEE 802.3z: 1000BASE -X gigabit Ethernet (fiber)

IEEE 802.3ad: comply link aggregation standard

IEEE 802.3x: flow control

IEEE 802.1p: Priority Queues

IEEE 802.1q: VLAN Bridge operation IEEE 802.1d: STP spanning tree

IEEE 802.1s: MSTP spanning tree

EEE 802.1w: RSTP spanning tree

IEEE 802.3af (PoE Standard for 15.4W)

IEEE 802.3at (PoE+ Standard for 30W)

Ports :

24*10/100/1000Mbps RJ45 port PoE Ports (Auto MDI-MDIX)

4 * 10G SFP+ fiber port

1 Console port

PoE :

24 10/100/1000Mbps RJ45 port support PoE / PoE+

Max PoE Budget 370W

Single port max 30W

LEDs

28 Link/Act LEDs

24 POE LEDs

1 Power LEDs

Performance :

Forwarding mode: store and forward

Switching Capacity: 128Gbps

Packet forwarding rate: 95 Mpps

16K MAC address table

Software

VSS

Support Virtual Stacking

Support up to 4 Switches in single stack

Routing

Support Static Routing IPv4 and IPv6

Support Dynamic Routing Protocols like RIP v1/v2

Support OSPFv2, OSPFv3

DHCP

Support DHCP Server, Client, Relay.

Support DHCP Snooping

Support DHCP option 82

VLAN

Support 4K VLAN, GVRP

Support 802.1Q VLAN, Port VLAN, Voice VLAN, Private Vlan

PoE

Support setting the PoE port priority

Support setting PoE power supply period

Support setting PoE power on Port

MAC Address Table

Comply the IEEE 802.1d standard

Support MAC address learning and aging automatically

Support static, Dynamic, filter address table

Security

Password Protection

ICMP-echo, DoS protection

Support DHCP Snooping, DHCP attack protection

Support port security, port isolation

Support HTTPS, SSLv3, TLSv1, SSHv1/v2

Support IP-MAC-Port

Support 802.1X AAA

Support ARP Protection, IP Sources Protection, DoS Protection,

Access Control (ACL)

Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function

Support port mirroring, one to one/Many to One

Multicast

Support IGMP v1/v2/v3 Snooping

Support static multicast

Support multicast VLAN

Support multicast filtering, message statistics, unknown multicast discarding

QoS

Support 8 port queue

Support Port Priority, 802.1p priority, DSCP priority

Support SP, WRR Priority scheduling algorithm

Spanning Tree

Support STP (IEEE 802.1d) RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocol

Support loop protection, BPDU protection

Management and maintenance

Support WEB management Http & Https

Support CLI (Telnet, local serial port)

Support SNMP V1/V2/V3,

Support LLDP, RMON

Support IP Source protection

Support Cable Diagnostic

Support CPU monitor, Memory monitoring

Support system log, Syslog

IPv6

Support IPv6 Ping, IPv6 Traceroute, IPv6 Telnet

Support IPv6 SSH, IPv6 SSL

Link Aggregation

Support Static aggregation

Support Up to 8 aggregation groups

In one group max 8 ports

Environment

Operation Temperature: 0° to 50° C

Storage Temperature: -40° to 70° C

Operation Humidity: 0% to 90% non-condensing

Storage Humidity: 0% to 95% non-condensing

Certifications/Compliance

CE, ROHS (on demand)

Altitude : 2000 mtr.

Power Input : 100-240V AC 50-60Hz

Dimension (LxWxH) : 440mm x 210mm x 44mm
