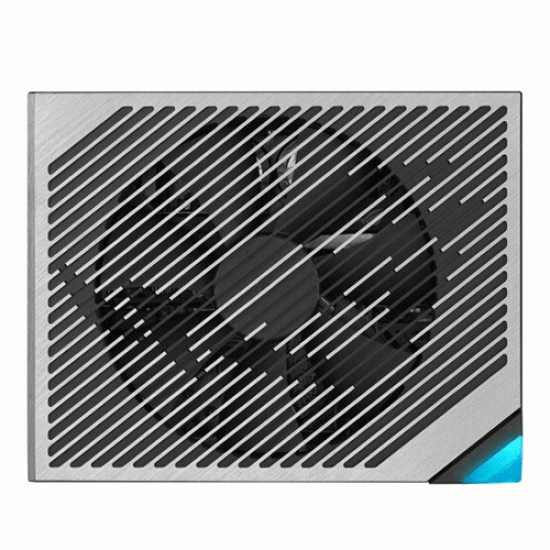

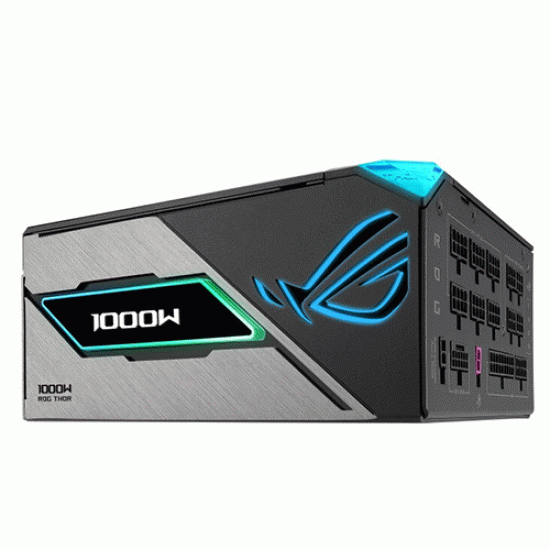

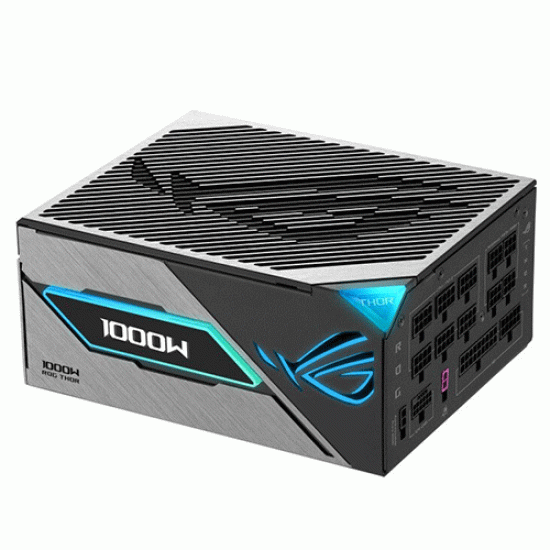

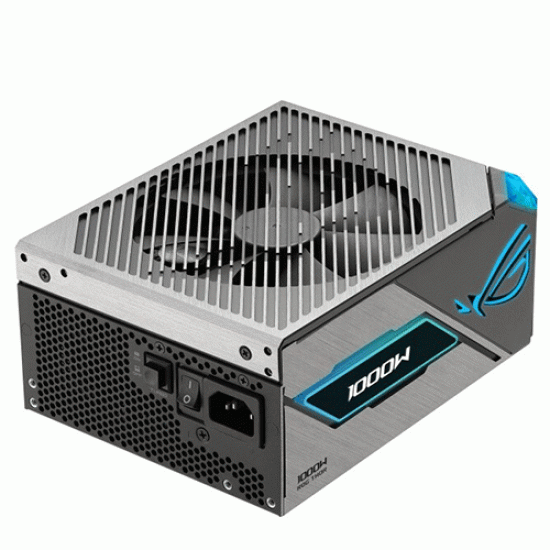

Asus ROG Thor 1000W Platinum III ATX 3.1 PSU (ROG-THOR-1000P3)

Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1000W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC build

GaN MOSFET

The ROG Thor 1000W Platinum III PSU boasts an innovative GaN MOSFET that deliver up to 30% more power efficiency than standard MOSFETs. Plus, the smaller size of a GaN MOSFET allows for a more organized internal layout. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation.

ROG Heatsinks

Cool under pressure

ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

Magnetic OLED Display

This detachable magnetic OLED display showcases real-time power draw, providing insights to your system's performance and efficiency. The magnetic attachment can be swapped to either side of the unit for fan-up or fan-down PSU installation, depending on the design of your case, so you can maintain optimal airflow without compromising monitoring.

Specification :

PFC Type : Active PFC

ATX Standard : ATX 3.1

Dimensions : 190 x 150 x 86 mm

Efficiency : 80Plus Platinum

MTBF : >120,000 hrs @ 25°C

Protection Features : OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials : ROHS

AC Input Range : 100-240Vac

DC Output Voltage : +3.3V +5V +12V -12V +5Vsb

Maximum Load : 30A 25A 83.33A 0.3A 3A

Combined Load : 125W 125W 1000W 3.6W 15W

Total Output : 1000W

Cable Connectors :

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 16-pin x 1

PCI-E 6+2-pin x 4

SATA x 7

PERIPHERAL x 6

Package Contents :

Power Cord x 1

Motherboard Power Cable x 1 (610mm)

CPU Cable x 2 (1000mm)

PCI-E Gen 5.1 16-pin Cable x 1 (750mm)

PCI-E Cable 1-to-1 x 4 (750mm)

SATA Cable 1-to-4 x 1 (400+120+120+120mm)

SATA Cable 1-to-3 x 1 (400+120+120mm)

Peripheral 1-to-3 x 2 (400+150+150mm)

Addressable RGB Cable x 1 (800mm)

ROG sticker x 1

ROG cable tie x 6

Chassis Screws Package x 1

Cable Tie x 12

User Manual x 1

Weight : 2.37 KG

AURA SYNC : ARGB

Cybenetics Noise Level Certification : A++

0dB Technology : Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button : Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
