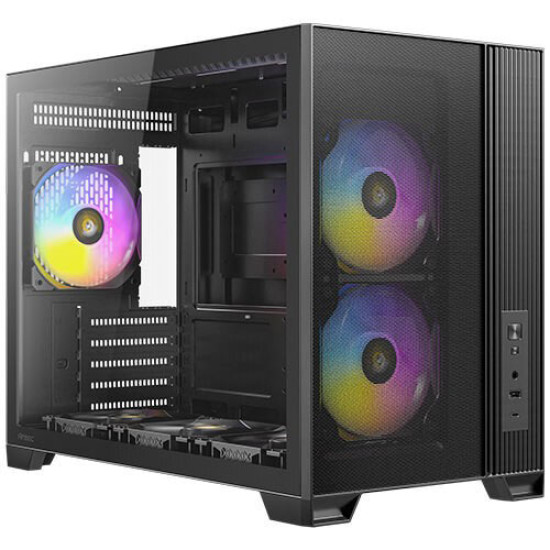

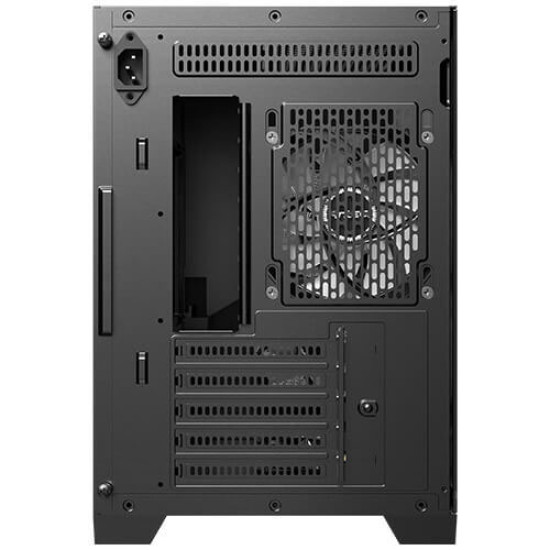

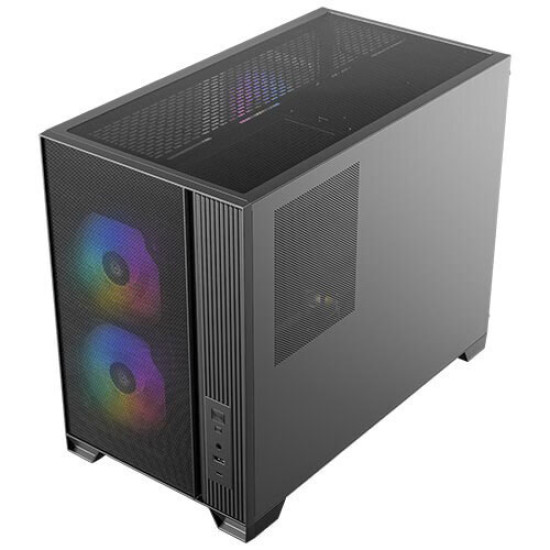

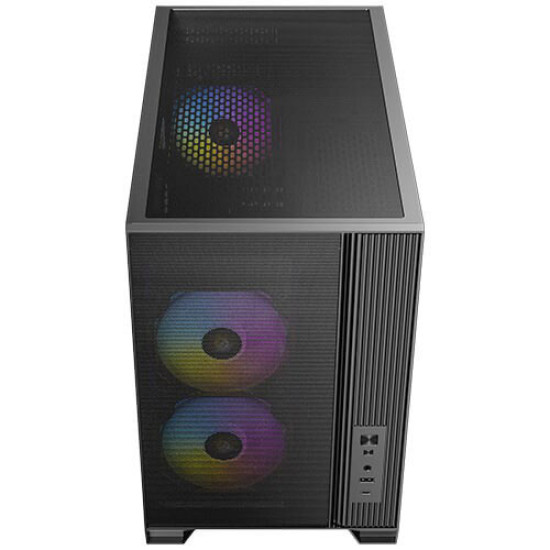

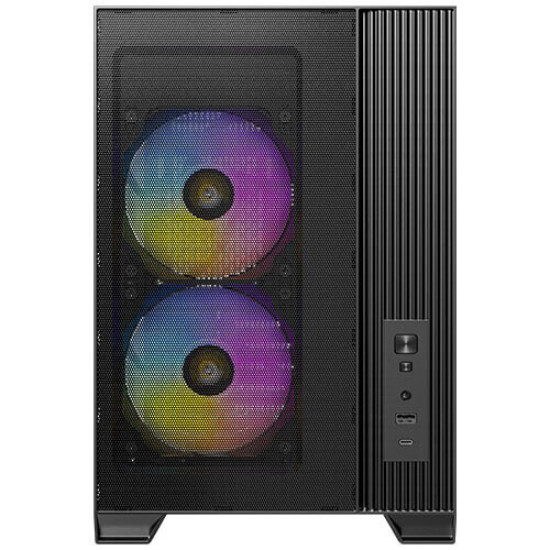

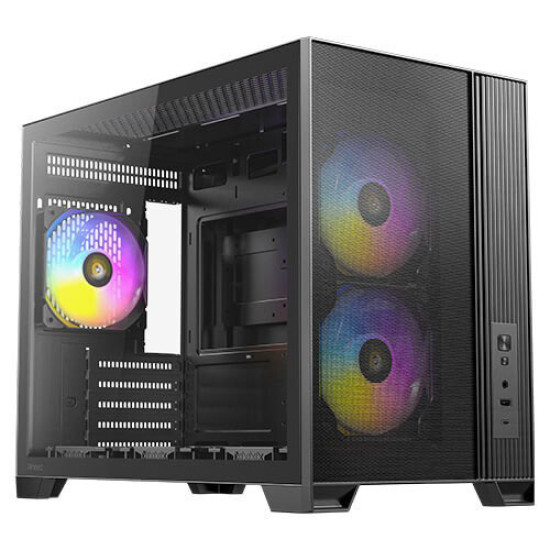

Antec FLUX M Compact Micro ATX Mini Tower Case

Flow Luxury

F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 6 fans included, delivering enhanced GPU cooling performance.

Flux Airflow

Multi-directional vent design, featuring extensive air intakes at the front and bottom, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.

Flux Vertical Cooling

A large bottom mesh panel boosts airflow, enhancing cooling efficiency around the graphics card.

Flux Horizontal Cooling

Air intake via the front mesh provides a smooth venting channel throughout the case.

Bottom air intake optimization

The large bottom intake increases airflow, with about 20mm clearance between the bottom fans and the GPU, allowing reverse fans to efficiently and directly cool the GPU.

Built-in GPU Bracket

Includes a support bracket compatible with high-performance graphics cards.

Front-Mounted PSU Chamber &

13A extension cable

The front-mounted PSU chamber improves airflow by freeing up internal space, while the included 13A extension cable ensures stable power delivery for high-wattage PSUs.

CABLE MANAGEMENT

Cable management space behind the motherboard provides up to 59mm at the front and 49mm at the rear.

Extensive Interior

Motherboard support Micro-ATX,ITX

CPU cooler max height ≤ 175mm

GPU max length ≤ 405mm

Power Supply max length (Without cable) ≤ 160mm

3.5" / 2.5" 2/2

Specification

main spec

Dimensions : 459 x 247 x 365mm (DWH)

Form Factor : Compact MicroATX

Materials : Steel + Plastic

Mainboard Support Micro-ATX , ITX

Front Access & Controls : Power, Reset , USB3.0 x 1, Type-C 3.2 Gen 2 (10 Gbps) x 1, Headphone/Mic Combo Jack

Side Panel : 3mm Tempered Glass

Drive Bays

Expansion Slots : 5

3.5" / 2.5" : 2 / 2

Fan Support

Front : 2 x 120mm

Top : 3 x 120mm

Bottom : 3 x 120mm

Rear : 1 x 120mm

Included Fan(s) : 2 X 120mm ARGB PWM fans at the front + 3 x 120mm PWM reverse fans at the bottom + 1 x 120mm ARGB PWM fan at the rear

Radiator Support

Top : 120 / 240 / 360mm

Rear : 120mm

Clearance

Max GPU Length : ≤405mm

Max CPU Cooler Height : ≤175mm

Max PSU Length : (Cable not included)≤160mm

Miscellaneous

Dust Filter : Top / Bottom

Net Weight : 6.35 Kg

Gross Weight : 7.41 Kg
