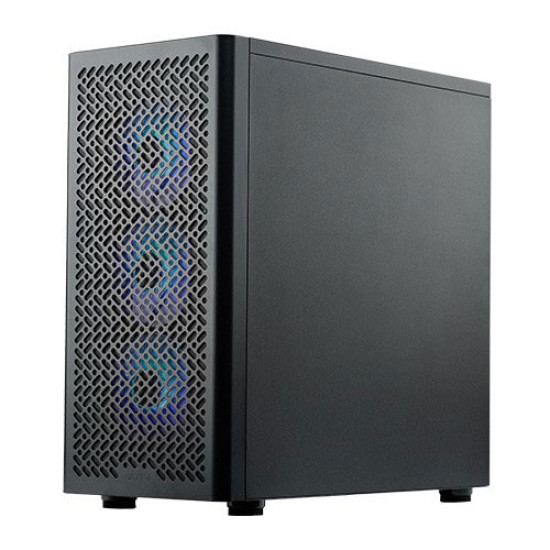

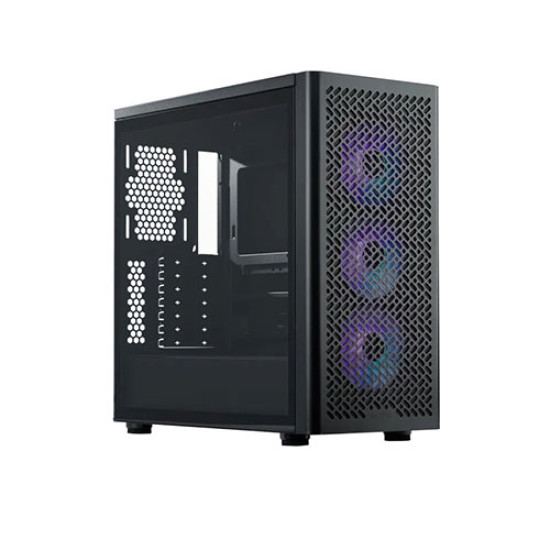

Cooler Master Elite 502 ARGB Mid Tower Case - Black

Back-Connected Motherboard Support​

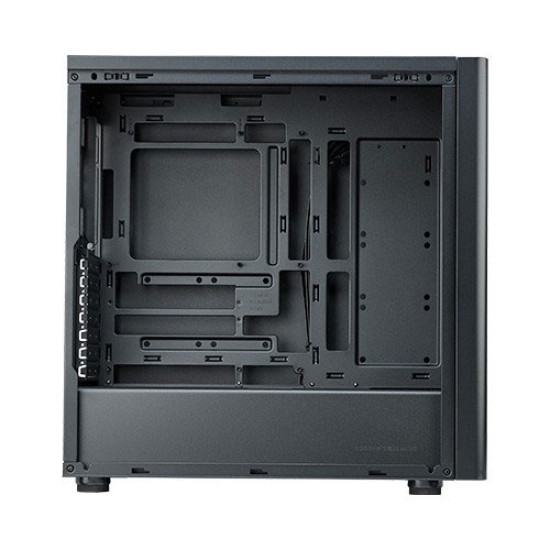

Supports back-connected motherboard design, freeing up space at the front of the case and providing 33-35mm of space behind the motherboard tray for easier cable management.

Optimized Airflow​

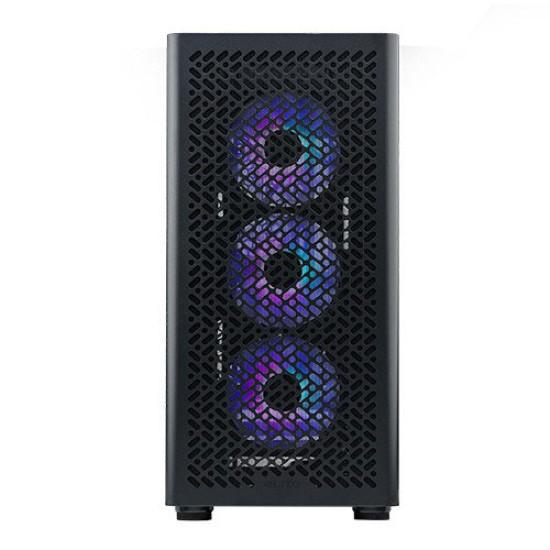

Equipped with three 120mm ARGB fans, it offers stable cooling performance while adding stunning lighting effects to your build.

Room For Updates​

Supports a 410mm GPU, a 170mm CPU cooler, and ample space for future hardware upgrades.

Versatile Thermal Options

Supports up to seven 120mm fans and either a top-mounted 360mm radiator or a front-mounted 420mm radiator, offering hyper-effective CPU thermal performance.

Removable HDD Cage

The HDD cage is completely removable, providing better access during assembly and system upgrades.

Specification

Product Name : ELITE 502

Model Number : ELITE 502: E502-KGNN-S00

Color(s) :  Black / ELITE 502

Materials - Exterior : Steel

Materials - Right Side Panel : Steel

Materials - Left Side Panel : TG

Dimensions (L x W x H) : 474 x 230 x 481 mm (Incl. Protrusions), 435 x 230 x 465 mm (Excl. Protrusions)

Volume (incl. Protrusions) : 49.73 L

Motherboard Support : ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9"/ 30.5cmx27.7cm motherboards, may impact cable management)

Expansion Slots : 7

5.25" Drive Bays : N/A

3.5" Drive Bays : 2

2.5" Drive Bays : 2 (Max.6)

I/O Panel - USB Ports  : 1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C​

I/O Panel - Audio In / Out : 3.5 mm Combo x 1

Fan Support - Front : (Filtered) 140 mm x 3 / 120 mm x 3

Fan Support - Top : (Filtered) 140 mm x 2 / 120 mm x 3

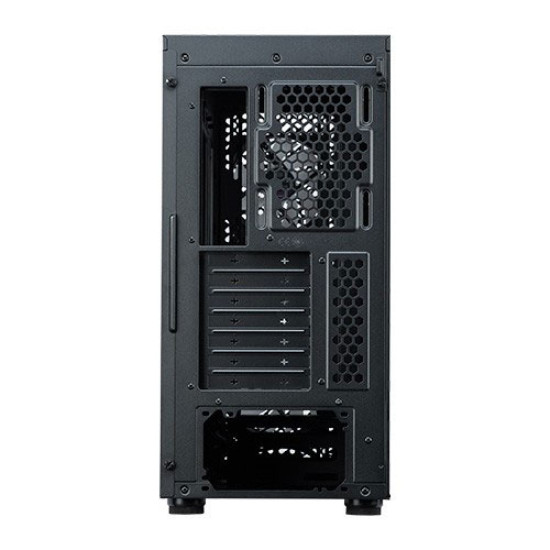

Fan Support - Rear : 1x 120mm

Pre-installed Fans - Front : 3x 120mm ARGB Fans

Pre-installed Fans - Top : N/A

Pre-installed Fans - Rear : N/A

Radiator Support - Front : 120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 457*140*27 mm)

Radiator Support - Top : 120 / 140 / 240 / 280 / 360mm

Radiator Support - Rear : 120mm

Clearance - CPU Cooler : 170mm

Clearance - PSU : 170 / 210mm (w/o HDD Cage)

Clearance - Graphics Card (installed 3.5"HDD BRK) : 360 / 410 mm (w/o front radiator)

Cable Routing - Behind Motherboard Tray : 33-35 mm

Dust Filters : Top, Front, Bottom

Power Supply Support : ATX

Series : Elite Series

Size : Mid Tower
