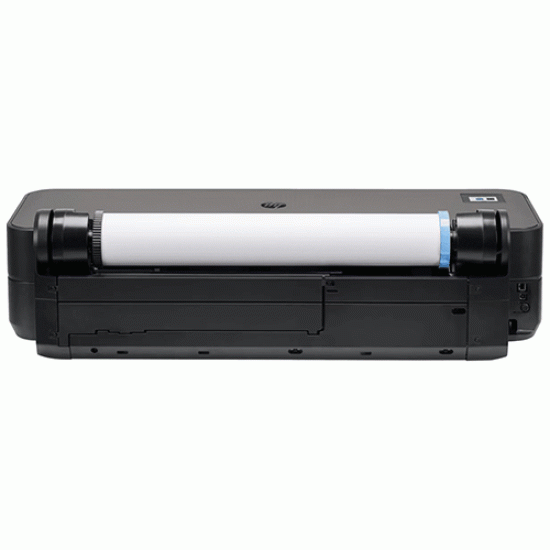

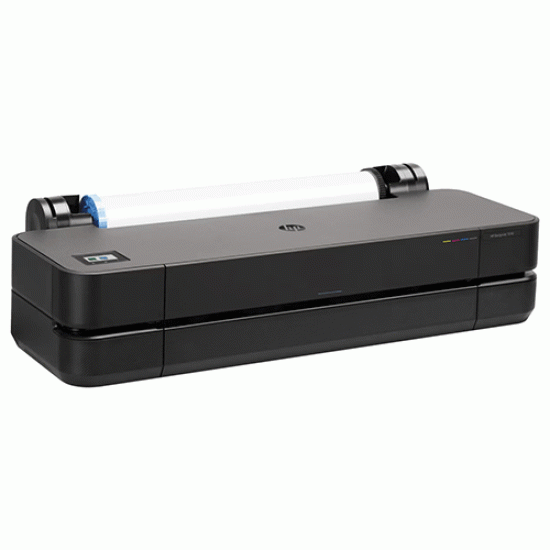

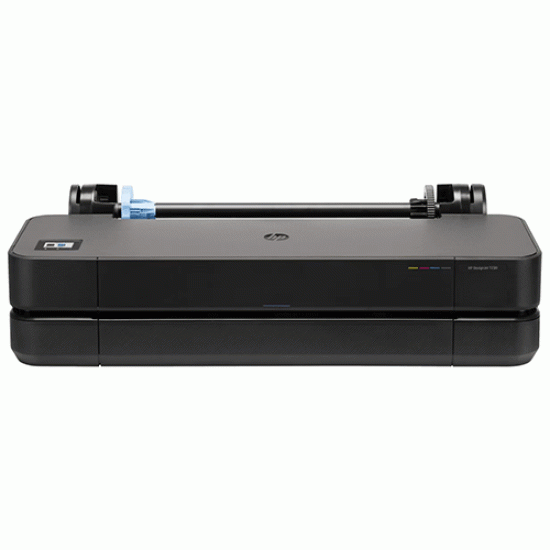

HP DesignJet T230 24-in Printer (5HB07D)

Reliable performance. Exceptional value.

Outstanding quality. Impressive simplicity.

Save time with HP's easiest job submission*. Send multiple files in one click with HP Click.*

Fits the way you work

Avoid waiting with high-speed printing in just seconds per A1/D plot.* Get high-quality results and improved line accuracy with a 34% enhanced colour gamut."

Fits your office and budget

Save space with HP's smallest plotters*, including a built-in stand, designed to fit your office. Use up to 95% less ink for routine maintenance and get up to 100 extra A1/D pages per month.*

Print in multiple size

Print multi-size projects automatically from A1/D to A4/A with an auto sheet feeder, without manually switching media.

Sustainable impact. Security intact. Energy efficient

Save energy with automatic on/off and efficient ink maintenance. Made with up to 40% recycled plastic, it’s HP's first large-format printer containing recycled metal.

Secure printing

Protect your printer from cyberthreats with built-in HP Wolf Essential Security.

Specification

Connectivity And Communications

Connectivity, standard : Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Cartridges And Printheads

Number of print cartridges : 4 (C, M, Y, K)

Ink types : Dye-based (C, M, Y); pigment-based (K)

Colour(s) of printing supplies : Cyan, magenta, yellow, black

Print head nozzles : 1376

Print heads : 1 (cyan, magenta, yellow, black)

Number of print cartridges : 4 (C, M, Y, K)

Ink types : Dye-based (C, M, Y); pigment-based (K)

Camera Specifications

Print head nozzles : 1376

Print heads : 1 (cyan, magenta, yellow, black)

Printing Media Handling

Finished output handling : Sheet feed, roll feed, automatic horizontal cutter

Print Resolution

Print quality colour (best) : Up to 2400 x 1200 optimised dpi

Supported Printing Media

Media sizes supported : A4, A3, A2, A1

Media sizes, custom : 210 x 279 to 610 x 1897 mm

Media types

Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media weight, recommended : 60 to 280 g/m²

Memory

Memory : 512 MB

Battery And Power

Power Consumption Description : <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

Software And Applications

Software included : HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
