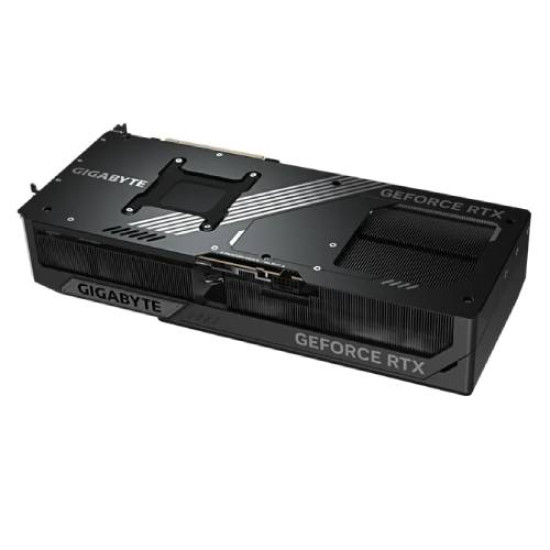

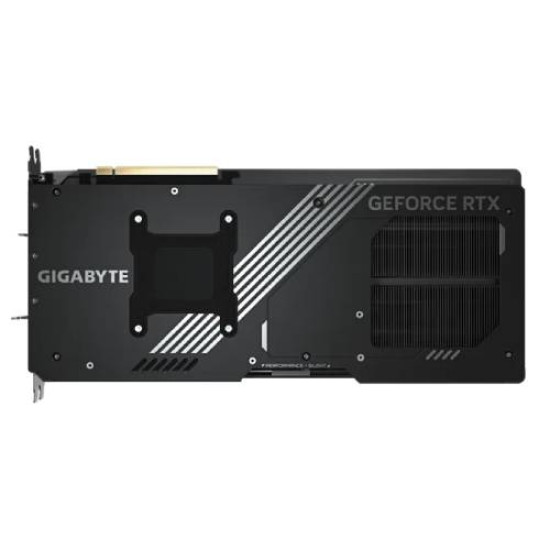

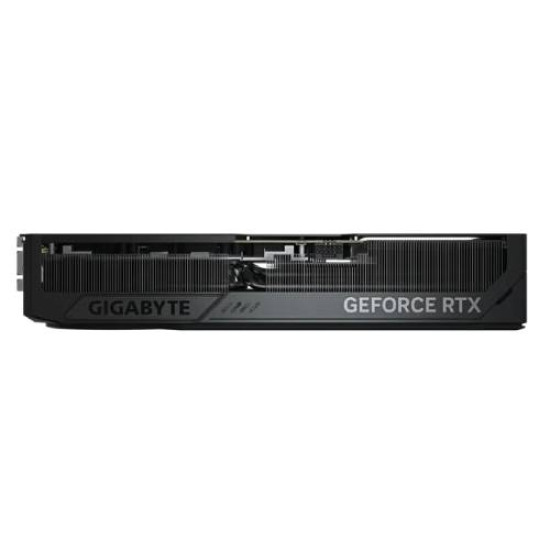

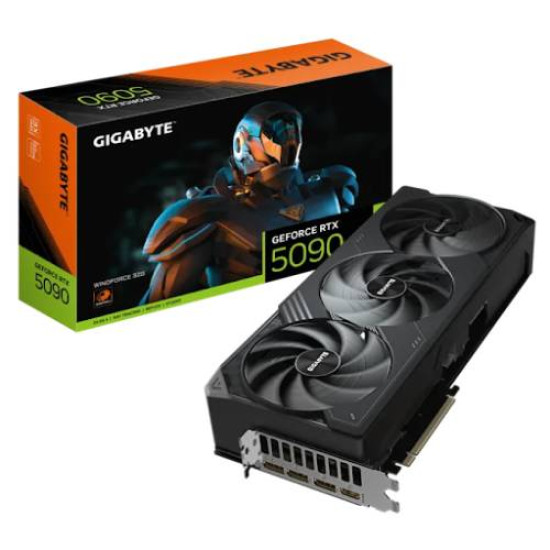

Gigabyte GeForce RTX 5090 WINDFORCE 32G GDDR7 (GV-N5090WF3-32GD)

Gigabyte GeForce RTX 5090 Windforce 32GB GDDR7 Graphics Card (GV-N5090WF3-32GD)

Feature

Powered by the NVIDIA Blackwell architecture and DLSS 4

Powered by GeForce RTX™ 5090

Integrated with 32GB GDDR7 512bit memory interface

WINDFORCE cooling system

Hawk fan

Server-grade Thermal conductive gel

Dual BIOS (Performance / Silent)

Reinforced structure

Versatile VGA holder

CORE CLOCK

Gigabyte Windforce cooling system

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

LARGE VAPOR CHAMBER & COMPOSITE COPPER HEAT PIPE

The large vapor chamber directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

ERSATILE VGA HOLDER

Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.

Supreme Speed. Superior Visuals. Powered by AI.

DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX™ 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities.

specification

Graphics Processing : GeForce RTX™ 5090

Core Clock : 2407MHz

CUDA® Cores : 21760

Memory Clock : 28 Gbps

Memory Size : 32 GB

Memory Bus : 512 bit

Memory Type : GDDR7

Card Bus : PCI-E 5.0

Digital Max Resolution : 7680 x 4320

Multi-view : 4

Dimension : L=342 W=150 H=65 mm

PCB Form : ATX

DirectX : DirectX 12 API

OpenGL : OpenGL 4.6

Recommended PSU : 1000 W

Power Connectors : 16 pin*1

Output : DisplayPort 2.1b*3 HDMI 2.1b *1

Accessories : 1. Quick guide 2. 1x 12V-2x6 to 4x PCIe 8pin adapter 3. Versatile VGA holder 4. Versatile VGA holder manual
