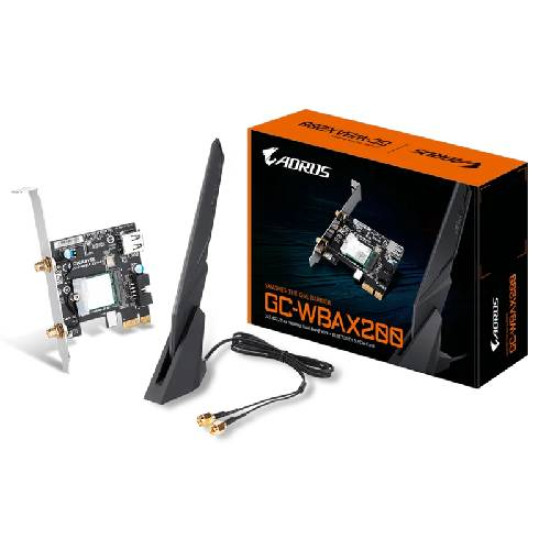

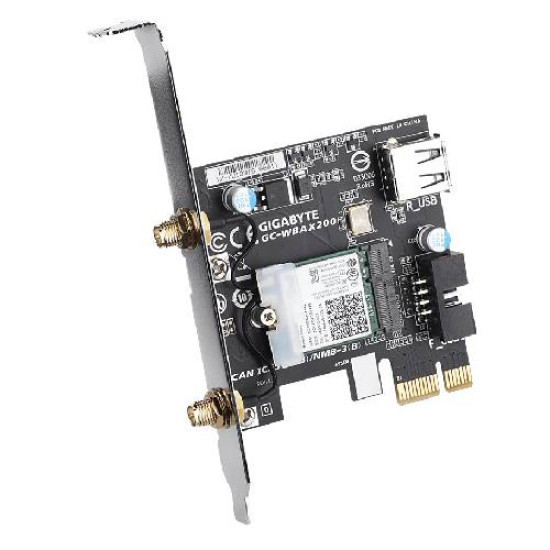

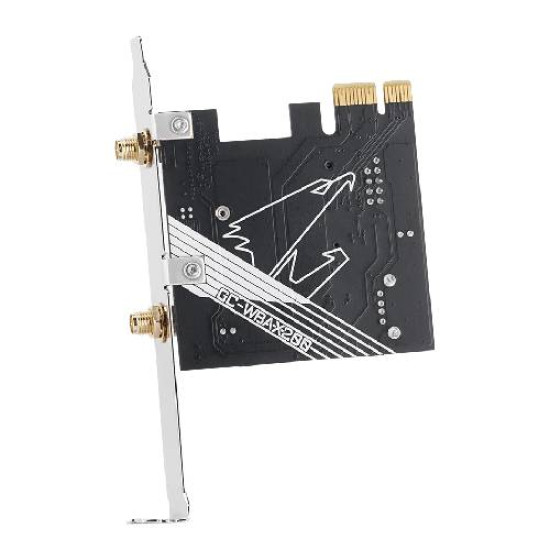

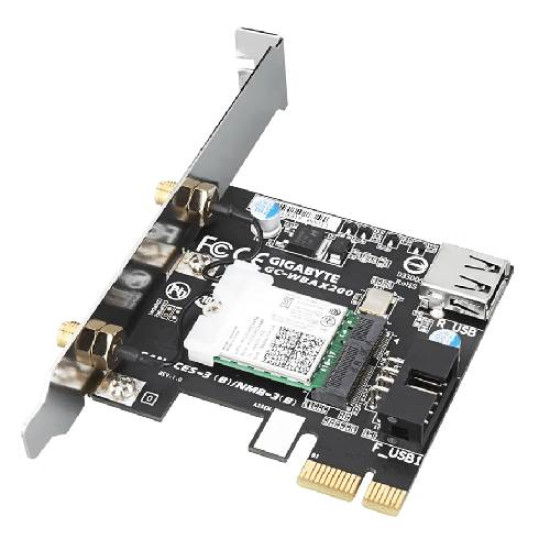

Gigabyte PCIe Expansion Card (GC-WBAX200)

GC-WBAX200

Intel® WIFI 6 AX200 module built-in

Up to 2400Mbps connection speed (theoretical)

802.11abgn+acR2+ax(Pre-Standard) MIMO 2Tx2R

BLUETOOTH 5.1

MU-MIMO TX/RX

Paired with AORUS high performance 2Tx2R antenna

PCIe x1 interface card

Smashes the GbE Barrier!

2x2 802.11ax Dual Band WIFI + BLUETOOTH 5 card GC-WBAX200 is an exclusive PCIe expansion card that offers support for the latest 2x2 802.11ax 160MHz Dual Band WIFI and BLUETOOTH 5 connectivity.

AORUS Antenna Supports Dual Band with Better WIFI Signal

 All new antenna supported dual band 802.11ax 2.4GHz & 5GHz.

  Better signal strength compared to traditional antenna design

• AORUS Antenna with smart antenna function for the best WIFI signal transmitting

• Multiple angle tilt and magnetic base for the best signal strength direction and location

BLUETOOTH Function

Standard: BLUETOOTH 5.1

WIFI Function

Wireless:

a/b/g/n/ac with wave 2 features, WMM*, WMM*-Power Save, WPA*, WPA2*, WPS*, PMF*, WIFI Direct*, WIFI Miracast*

IEEE WLAN Standard:

IEEE 802.11-2016 and select amendments (selected feature coverage)

IEEE 802.11a, b, g, n, ac, ax, d, e, h, i, k, r, u, v, w, ai; Fine Timing Measurement based on 802.11-2016

Security:

Security Methods- WPA* and WPA2*, 802.1X (EAP-TLS, TTLS, PEAP,EAP-SIM, EAP-AKA, EAP-AKA)

Authentication Protocols- 802.1X EAP-TTLS/MSCHAPv2, PEAPv0 –MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA’)
